    WF52-480128AD#0S0-FC

    TFT 5.2" 480x128, Bar Type, Interface RGB, High Brightness 1100cd/m², View direction 6H, No touch
    Brand: Winstar
    Cod.: WF52-480128AD#0S0-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €40,90
    €36,80
    €34,60

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €40,90 IVA esclusa
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].

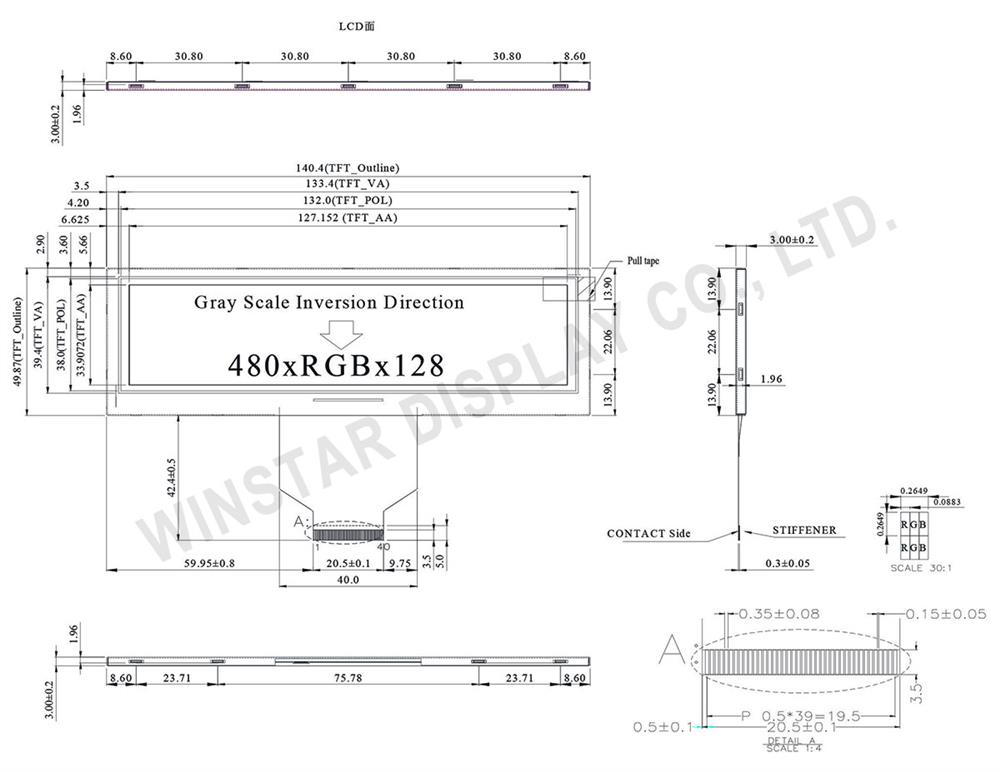

    DRAWING



    SPECIFICATIONS



    Interface

    PinSymbolFunction
    1 VLED- Power for LED backlight cathode
    2 VLED+ Power for LED backlight anode
    3 GND Power ground
    4 VCC Power voltage
    5 R0 Red data (LSB)
    6~11 R1~R6 Red data
    12 R7 Red data (MSB)
    13 G0 Green data (LSB)
    14~19 G1~G6 Green data
    20 G7 Green data (MSB)
    21 B0 Blue data (LSB)
    22~27 B1~B6 Blue data
    28 B7 Blue data (MSB)
    29 GND Power ground
    30 CLK Pixel clock (DCLK)
    31 LR Right /Left selection; Default R/L is Pull High
    32 HSYNC Horizontal sync signal; negative polarity
    33 VSYNC Vertical sync signal; negative polarity
    34 NC No connection
    35 UD Up/down selection; Default U/D is Pull High
    36 RESET Reset signal
    37~40 NC No connection



    General Specifications

    ItemDimensionUnit
    Size 5.2 inch
    Dot Matrix 480 × RGB × 128 dots
    Module dimension 140.4 × 49.87 × 3.0 mm
    Active area 127.152 × 33.9072 mm
    Dot pitch 0.0883 × 0.2649 mm
    LCD type TFT, Normally White, Transmissive
    View Direction 6 o'clock
    Gray Scale Inversion Direction 12 o'clock
    Aspect Ratio Bar Type
    Backlight Type LED,Normally White
    Driver IC ST7252 Or Equal
    Interface RGB 24bit
    With /Without TP Without touch panel (screen)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For LCM VCC - 3.0 3.3 3.6 V
    Supply Current For LCM ICC - - 20 - mA



    Specifiche di prodotto
    Size 5.2"
    Resolution 480x128
    Active Area (mm) 127.15x33.90
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle TN
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Not Preferred
    Date Notice Link/Description
    2026/04/24 EOL

    Discontinuation of Sitronix ST7252 Driver for Winstar TFT Series WF52





    For more details, please contact us @ [email protected]

    *
    *
    *
    *
