WF32-240320DD#000-FC

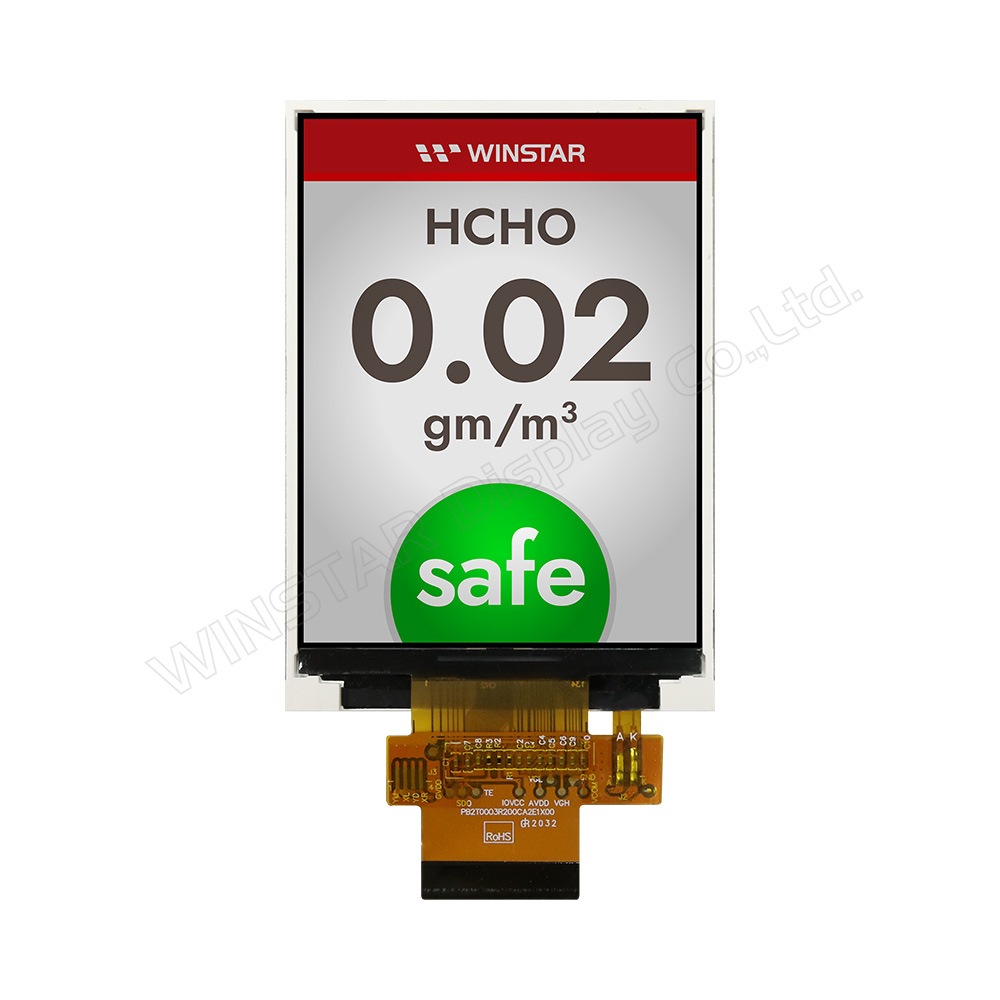

Immagine di WF32-240320DD#000-FC Immagine di WF32-240320DD#000-FC
TFT 3.2'' 240x320, Portrait, LCD Module, Interface MCU (Parallel/SPI) IC ILI9341, 500cd/m², No touch

DESCRIPTION

3.2 inch portrait mode TFT LCD module, made of resolution 240x320 pixels. This module is built in with ILI9341 driver IC, it supports 8080 MCU 8bit /9bit/16bit/18bit/ SPI (3 Wire/4 Wire) interface. Contrast ratio 500:1 (typical value), view direction 6 o’clock, gray scale inversion direction 12 o’clock, anti-glare surface panel. High brightness version (up to 1000nits) and resistive touch panel as option.

The power supply voltage (VCI) is from 2.5V to 3.3V, typical value 2.8V. Operating temperatures from -20℃ to+ 70℃;storage temperatures from -30℃ to +80℃.



DRAWING

3.2 inch High Brightness 240x320 TFT Module - WF32DSLAJDNN0

SPECIFICATIONS



Interface

NOSymbolFunctionI/O
1 NC No connection －
2 NC No connection －
3 NC No connection －
4 NC No connection －
5 VCI Power supply(TYP: 2.8V). P
6 IOVCC Power supply(TYP:1.8V/2.8V). P
7 R5 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode Fix to VSS level when not in use		 I/O
8 R4
9 R3
10 R2
11 R1
12 R0
13 G5
14 G4
15 G3
16 G2
17 G1
18 G0
19 B5
20 B4
21 B3
22 B2
23 B1
24 B0
25 SDA Serial data input/output I/O
26 DOTCLK Data enable signal in RGB interface. I
27 DE A data ENABLE signal in RGB I/F mode I
28 HSYNC Horizontal synchronizing signal in RGB interface I
29 VSYNC Vertical synchronizing signal in RGB interface I
30 NRD Read enable pin I80 parallel bus system interface I
31 NWR_DNC NWR Write enable pin I80 parallel bus system interface
DNC Command/parameter or display data selection pin in serial bus system interface		 I
32 DNC_SCL DNC Command/parameter or display data selection pin in parallel interface
SCL Serial data clock in serial bus system Interface		 I
33 NCS Chip select signal I
34 NRESET System Reset I
35 IM0 System interface select:
IM2IM1IM0MCU-Interface ModeDB Pin in use
Register/ContentGRAM
0 0 0 80 MCU 8-bit bus
interface I		 D[7:0] D[7:0]
0 0 1 80 MCU 16-bit bus
interface I		 D[7:0] D[15:0]
0 1 0 80 MCU 9-bit bus
interface I		 D[7:0] D[8:0]
0 1 1 80 MCU 18-bit bus
interface I		 D[7:0] D[17:0]
1 0 1 3-wire 9-bit data serial
interface I		 SDA:In/OUT
1 1 0 4-wire 8-bit data serial
interface I		 SDA:In/OUT
I
36 IM1
37 IM2
38 GND Ground P
39 VLED+ Anode of LED backlight. P
40 VLED- Cathode of LED backlight. P



General Specifications

ItemDimensionUnit
Size 3.2 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 55.04 (W) × 77.6 (H) × 2.55(D) mm
Active area 48.6 × 64.8 mm
Pixel pitch 0.2025 × 0.2025 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Portrait
Driver IC ILI9341 or Equivalent
Interface 80 MCU 8bit/9bit/16bit/18bit/SPI(3 Wire/4 Wire)
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



SKU: WF32-240320DD#000-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€21,40
€15,70
€13,50

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€21,40 IVA esclusa

DESCRIPTION

3.2 inch portrait mode TFT LCD module, made of resolution 240x320 pixels. This module is built in with ILI9341 driver IC, it supports 8080 MCU 8bit /9bit/16bit/18bit/ SPI (3 Wire/4 Wire) interface. Contrast ratio 500:1 (typical value), view direction 6 o’clock, gray scale inversion direction 12 o’clock, anti-glare surface panel. High brightness version (up to 1000nits) and resistive touch panel as option.

The power supply voltage (VCI) is from 2.5V to 3.3V, typical value 2.8V. Operating temperatures from -20℃ to+ 70℃;storage temperatures from -30℃ to +80℃.



DRAWING

3.2 inch High Brightness 240x320 TFT Module - WF32DSLAJDNN0

SPECIFICATIONS



Interface

NOSymbolFunctionI/O
1 NC No connection －
2 NC No connection －
3 NC No connection －
4 NC No connection －
5 VCI Power supply(TYP: 2.8V). P
6 IOVCC Power supply(TYP:1.8V/2.8V). P
7 R5 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode Fix to VSS level when not in use		 I/O
8 R4
9 R3
10 R2
11 R1
12 R0
13 G5
14 G4
15 G3
16 G2
17 G1
18 G0
19 B5
20 B4
21 B3
22 B2
23 B1
24 B0
25 SDA Serial data input/output I/O
26 DOTCLK Data enable signal in RGB interface. I
27 DE A data ENABLE signal in RGB I/F mode I
28 HSYNC Horizontal synchronizing signal in RGB interface I
29 VSYNC Vertical synchronizing signal in RGB interface I
30 NRD Read enable pin I80 parallel bus system interface I
31 NWR_DNC NWR Write enable pin I80 parallel bus system interface
DNC Command/parameter or display data selection pin in serial bus system interface		 I
32 DNC_SCL DNC Command/parameter or display data selection pin in parallel interface
SCL Serial data clock in serial bus system Interface		 I
33 NCS Chip select signal I
34 NRESET System Reset I
35 IM0 System interface select:
IM2IM1IM0MCU-Interface ModeDB Pin in use
Register/ContentGRAM
0 0 0 80 MCU 8-bit bus
interface I		 D[7:0] D[7:0]
0 0 1 80 MCU 16-bit bus
interface I		 D[7:0] D[15:0]
0 1 0 80 MCU 9-bit bus
interface I		 D[7:0] D[8:0]
0 1 1 80 MCU 18-bit bus
interface I		 D[7:0] D[17:0]
1 0 1 3-wire 9-bit data serial
interface I		 SDA:In/OUT
1 1 0 4-wire 8-bit data serial
interface I		 SDA:In/OUT
I
36 IM1
37 IM2
38 GND Ground P
39 VLED+ Anode of LED backlight. P
40 VLED- Cathode of LED backlight. P



General Specifications

ItemDimensionUnit
Size 3.2 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 55.04 (W) × 77.6 (H) × 2.55(D) mm
Active area 48.6 × 64.8 mm
Pixel pitch 0.2025 × 0.2025 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Portrait
Driver IC ILI9341 or Equivalent
Interface 80 MCU 8bit/9bit/16bit/18bit/SPI(3 Wire/4 Wire)
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Specifiche di prodotto
Brand Winstar
Size 3.2"
Risoluzione 240x320
Area Attiva (mm) 48.60x64.80
Colore Full Color
Interfaccia Display MCU (Parallel/SPI)
Display IC ILI9341
Angolo Visione TN
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 3.2"
Risoluzione 240x320
Area Attiva (mm) 48.60x64.80
Colore Full Color
Interfaccia Display MCU (Parallel/SPI)
Display IC ILI9341
Angolo Visione TN
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
