    WFN0180SA2#0SV2-FC

    TFT 1.77" 128x160 Portrait LCD Panel, Interface MCU (SPI) IC NV3023B, High Brightness 850cd/m², Capacitive touch panel I2C interface (GF, IC FT6336U)
    Brand: Winstar
    Cod.: WFN0180SA2#0SV2-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €24,10
    €21,70
    €20,40
    €19,90

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €24,10 IVA esclusa
    i h

    DESCRIPTION

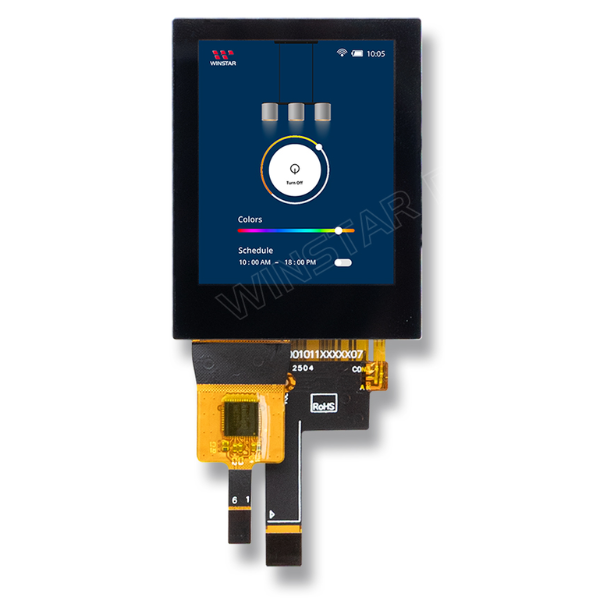

    The WFN0180SA2#0SV2-FC is a 1.8-inch SPI TFT LCD module featuring a 1.77-inch portrait display area with a resolution of 128x160 pixels. It adopts an IPS panel that delivers consistent image quality across wide viewing angles (80/80/80/80 degrees). Compared to earlier models of the same size with a 6 o'clock viewing direction, this version offers improved visibility from all angles, making it ideal for portrait-oriented applications.

    This high-brightness module adopts a transmissive VA mode and delivers excellent optical performance with 850 cd/m² brightness and a 1500:1 contrast ratio. It is equipped with the NV3023B driver IC and supports SPI interface for display control. The driver IC is compatible with both 3-wire and 4-wire SPI modes, while the module's FPC is configured as 4-wire SPI with a 10-pin, 0.5mm-pitch layout. The module includes a projected capacitive touch panel (PCAP) that supports single-finger touch and gesture operation, driven by the FT6336U IC via I2C interface. With a typical LED lifetime of 50,000 hours and an operating temperature range of -20°C to +70°C, it is well-suited for applications such as handheld analyzers, industrial control systems, smart home devices, and compact instruments like handheld infrared thermometers.

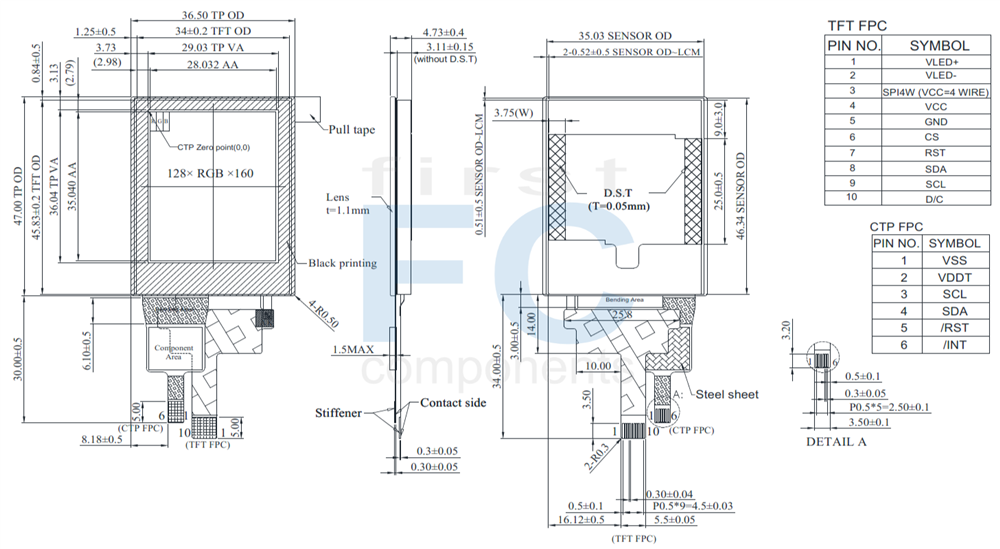

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 1.77 inch
    Dot Matrix 128 × RGB × 160(TFT) dots
    Module dimension 36.5(W) × 47.0(H) × 4.73 (D) mm
    Active area 28.032 × 35.04 mm
    Pixel pitch 0.219 × 0.219 mm
    LCD type TFT, Normally Black, Transmissive
    View Angle 80/80/80/80
    Aspect Ratio Portrait
    TFT IC NV3023B or Equivalent
    Interface SPI
    CTP Driver IC FT6336U or equivalent
    CTP Support Operation Support single-finger touch & gesture
    CTP Interface I2C
    CTP FW 0x02
    CTP Resolution 128*160
    Backlight Type LED, Normally White
    Touch Panel Projected Capacitive Touch Screen (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    1.Operating conditions:

    ItemSymbolMinTypMaxUnit
    Supply Voltage VCI 2.8 3.3 3.6 V
    Supply LCM current ICC - 7 10.5 mA
    Supply Voltage For Touch VDDT 2.8 - 3.3 V
    IDDT - 4 6 mA


    2. LED driving conditions:

    ParameterSymbolMinTypMaxUnit
    LED current - - 80 - mA
    LED voltage VBL+ 2.7 2.9 3.3 V
    LED Life Time - 50,000 - - Hr



    Interface

    LCM PIN Definition

    Pin noSymbolFunction
    1 VLED+ Back light anode
    2 VLED- Back light cathode
    3 SPI4W
    (VCC=4 WIRE)
    SPI4W=’1’, SPI 4 Wire Serial
    SPI4W=’0’, SPI 3 Wire Serial
    4 VCC Power Supply.
    5 GND Ground
    6 CS Chip enable (CSX)
    7 RST Reset signal (RESX)
    8 SDA Serial input/output signal in serial interface mode.
    9 SCL In Serial Interface, this is used as SCL.
    10 D/C Data/ command selection. (D/CX)


    CTP PIN Definition

    Pin noSymbolFunction
    1 VSS Ground for analog circuit
    2 VDDT Power Supply
    3 SCL I2C clock inputI2C clock input
    4 SDA I2C data input and output
    5 /RST External reset signal, active low
    6 /INT External interrupt to the host
    Specifiche di prodotto
    Size 1.77"
    Resolution 128x160
    Active Area (mm) 28.03x35.04
    Color Full Color
    Display Interface MCU (SPI)
    Display IC NV3023B
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 10
    Pin Pitch 0.5mm
    Touch Panel IC Controller FT6336U
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
