    WFN0180SA2#0V0-FC

    TFT 1.77" 128x160 Portrait LCD Panel, Interface MCU (SPI) IC NV3023B, 600cd/m², No touch
    Brand: Winstar
    Cod.: WFN0180SA2#0V0-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €12,40
    €11,20
    €10,50
    €10,20

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €12,40 IVA esclusa
    i h

    DESCRIPTION

    The WFN0180SA2#0V0-FC is a 1.77-inch (commonly referred to as 1.8-inch) portrait TFT LCD module with a resolution of 128x160 pixels, featuring an IPS panel that delivers consistent image quality across wide viewing angles (80/80/80/80 degrees). Compared to earlier models of the same size with a 6 o'clock viewing direction, this version offers enhanced flexibility with all-angle viewing, ensuring optimal readability in any orientation. (Note: This module is often referred to as a 1.8-inch TFT in catalog listings for consistency.)

    This module adopts a transmissive VA mode and provides excellent optical performance with 600 cd/m² brightness and a 1500:1 contrast ratio. It integrates the NV3023B driver IC and communicates via an SPI interface, making it easy to embed in compact systems. The driver IC is compatible with both 3-wire and 4-wire SPI modes, while the module's FPC is configured as 4-wire SPI with a 10-pin, 0.5mm-pitch layout. With a typical LED lifetime of 50,000 hours and an operating temperature range of -20°C to +70°C, this display is ideal for applications including handheld analyzers, industrial control systems, smart home devices, and compact instruments such as handheld infrared thermometers.

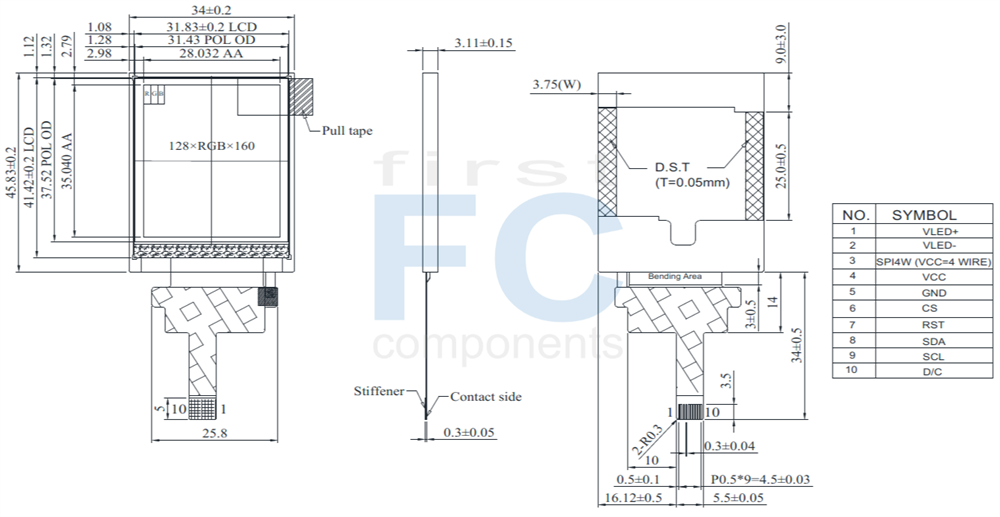

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 1.77 inch
    Dot Matrix 128 × RGB × 160(TFT) dots
    Module dimension 34.0(W) × 45.83(H) × 3.11(D) mm
    Active area 28.032 × 35.04 mm
    Pixel pitch 0.219 × 0.219 mm
    LCD type TFT, Normally Black, Transmissive
    View Angle 80/80/80/80
    Aspect Ratio Portrait
    TFT IC NV3023B or Equivalent
    Interface SPI
    Backlight Type LED, Normally White
    Touch Panel Without Touch Panel
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    1.Operating conditions:

    ItemSymbolMinTypMaxUnit
    Supply Voltage VCI 2.8 3.3 3.6 V
    Supply LCM current ICC - 7 10.5 mA


    2. LED driving conditions:

    ParameterSymbolMinTypMaxUnit
    LED current - - 60 - mA
    LED voltage VBL+ 2.7 2.9 3.3 V
    LED Life Time - 50,000 - - Hr



    Interface

    LCM PIN Definition

    Pin noSymbolFunction
    1 VLED+ Back light anode
    2 VLED- Back light cathode
    3 SPI4W
    (VCC=4 WIRE)
    SPI4W=’1’, SPI 4 Wire Serial
    SPI4W=’0’, SPI 3 Wire Serial
    4 VCC Power Supply.
    5 GND Ground
    6 CS Chip enable (CSX)
    7 RST Reset signal (RESX)
    8 SDA Serial input/output signal in serial interface mode.
    9 SCL In Serial Interface, this is used as SCL.
    10 D/C Data/ command selection. (D/CX)

    Specifiche di prodotto
    Size 1.77"
    Resolution 128x160
    Active Area (mm) 28.03x35.04
    Color Full Color
    Display Interface MCU (SPI)
    Display IC NV3023B
    View Angle IPS
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 10
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
