WFN0300SA3#0P0-FC

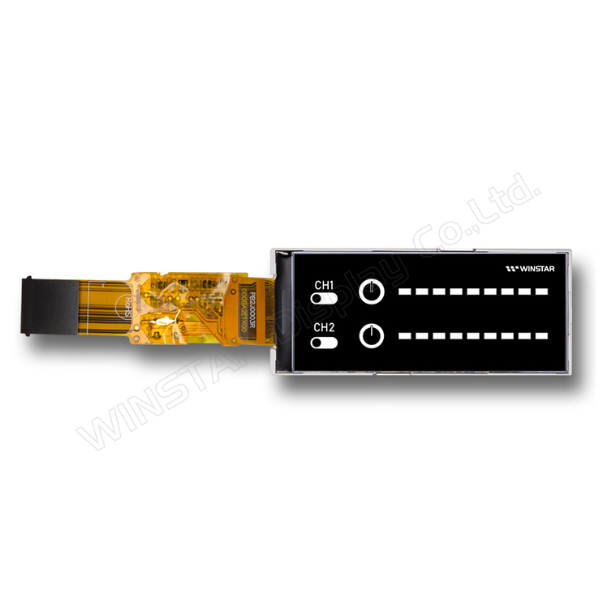

Immagine di WFN0300SA3#0P0-FC Immagine di WFN0300SA3#0P0-FC
TFT 3" 320x120, Monochrome, LCD + IC Controller, Interface MCU (SPI) IC ST7512, 450cd/m², Standard Temp., No touch

DESCRIPTION

The WFN0300SA3#0P0-FC is a reliable 3-inch monochrome TFT-LCD display with a 320x120 resolution, optimized for industrial control and audiovisual systems. With its high contrast, low power consumption, and stable performance, it's ideal for applications requiring simple yet clear visual output. Operating within a temperature range of -20°C to +70°C, it is driven by the ST7512 or equivalent driver IC via an SPI interface.

Key Specifications:

  • Resolution: 320 x 120 pixels
  • Display Type: TFT, Normally Black, Transmissive
  • Viewing Angle: 80°/80°/80°/80° (L/R/U/D)
  • Interface: SPI (3-line)
  • Backlight: White LED (50,000-hour lifespan)
  • Operating Temp: -20°C to +70°C
  • Surface: Anti-glare
  • Power Consumption: 10-15mA
  • LED Voltage: 1.6V to 3.4V


Applications:

  • Industrial Control: Ideal for factory automation and machine interfaces.
  • Audiovisual Equipment: Suitable for media devices and presentation systems.

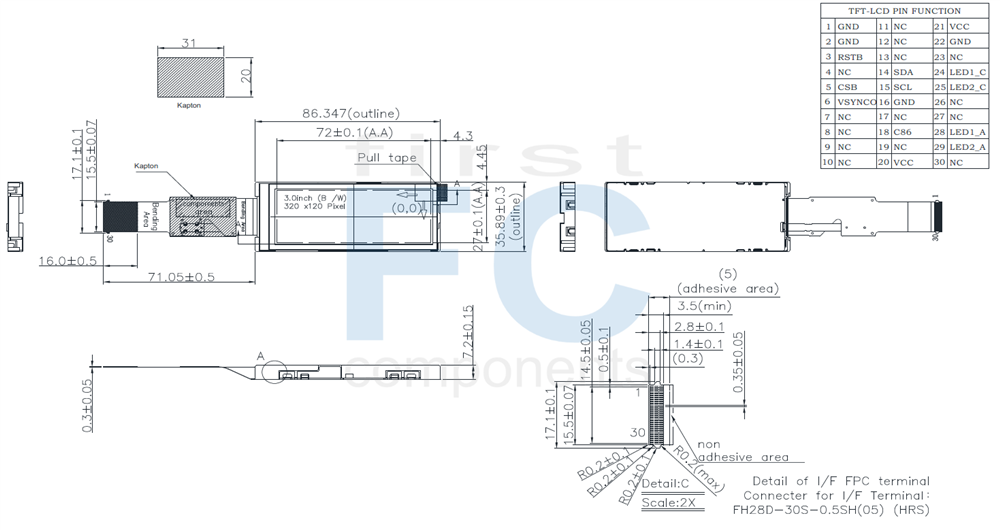

DRAWING

3 inch TFT LCD Display, 3-inch 320x120 Mono TFT-LCD Display - WFN0300A3T0YASNN000

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 3.0 inch
Dot Matrix 320 × Mono × 120(TFT) dots
Module dimension 86.347 (W) × 35.89 (H) × 7.2(D) Max mm
Active area 72.0 (W) × 27.0 (H) mm
Dot pitch 0.225 × 0.225 mm
LCD type TFT, Normally Black, Transmissive
View Direction 80°/80°/80°/80°(L/R/U/D)
Driver IC ST7512 or Equivalent
TFT Interface SPI (3 line)
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypeMaxUnit
Power supply voltage VCC   3.0 3.3 3.6 V
Input high voltage Vih   0.8VCC - VCC V
Input low voltage Vil GND - 0.2VCC V
Output high voltage Voh IOL=-1.0mA 0.8 VCC - VCC V
Output low voltage Vol IOL =1.0mA GND - 0.2 VCC V
Current consumption ICC - - 10 15 mA


LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 2*20   mA
LED voltage LED+ 1.6 2.65 3.4 V
LED Life Time － 50000   － Hr



Interface

LCM PIN Definition

NOSymbolFunctionI/O
1 GND GND －
2 GND GND －
3 RSTB Reset input pin. Active when it is low. This pin is effective when RSTEN pin is “H”.
Initialization is executed when this pin is set to “L”. SWRESET command must be required
after initialization.		 I
4 NC NC －
5 CSB Chip select input pin.
Interface access is enabled when CSB is “L” in parallel, SPI interface.
When CSB is non-active (CSB=“H”), D[7:0] pins are high impedance		 I
6 VSYNCO Vertical synchronization signal output pin. O
7 NC NC －
8 NC NC －
9 NC NC －
10 NC NC －
11 NC NC －
12 NC NC －
13 NC NC －
14 SDA Serial interface : Serial data input / output I/O
15 SCL Serial interface : connecting the SCL signal I
16 GND GND －
17 NC NC I
18 C86 Serial interface: “L” 3wire 9bit serial interface
Please do not change input level for this terminal while operating”		 －
19 NC NC －
20 VCC Power supply P
21 VCC Power supply P
22 GND GND －
23 NC NC －
24 LED1_C LED cathode 1 P
25 LED2_C LED cathode 2 P
26 NC NC －
27 NC NC －
28 LED1_A LED anode 1 P
29 LED2_A LED anode 2 P
30 NC NC
SKU: WFN0300SA3#0P0-FC
Brand: Winstar
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Prezzi per quantità
Quantità
1+
5+
Prezzo
€52,60
€47,30

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€52,60 IVA esclusa

DESCRIPTION

The WFN0300SA3#0P0-FC is a reliable 3-inch monochrome TFT-LCD display with a 320x120 resolution, optimized for industrial control and audiovisual systems. With its high contrast, low power consumption, and stable performance, it's ideal for applications requiring simple yet clear visual output. Operating within a temperature range of -20°C to +70°C, it is driven by the ST7512 or equivalent driver IC via an SPI interface.

Key Specifications:

  • Resolution: 320 x 120 pixels
  • Display Type: TFT, Normally Black, Transmissive
  • Viewing Angle: 80°/80°/80°/80° (L/R/U/D)
  • Interface: SPI (3-line)
  • Backlight: White LED (50,000-hour lifespan)
  • Operating Temp: -20°C to +70°C
  • Surface: Anti-glare
  • Power Consumption: 10-15mA
  • LED Voltage: 1.6V to 3.4V


Applications:

  • Industrial Control: Ideal for factory automation and machine interfaces.
  • Audiovisual Equipment: Suitable for media devices and presentation systems.

DRAWING

3 inch TFT LCD Display, 3-inch 320x120 Mono TFT-LCD Display - WFN0300A3T0YASNN000

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 3.0 inch
Dot Matrix 320 × Mono × 120(TFT) dots
Module dimension 86.347 (W) × 35.89 (H) × 7.2(D) Max mm
Active area 72.0 (W) × 27.0 (H) mm
Dot pitch 0.225 × 0.225 mm
LCD type TFT, Normally Black, Transmissive
View Direction 80°/80°/80°/80°(L/R/U/D)
Driver IC ST7512 or Equivalent
TFT Interface SPI (3 line)
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypeMaxUnit
Power supply voltage VCC   3.0 3.3 3.6 V
Input high voltage Vih   0.8VCC - VCC V
Input low voltage Vil GND - 0.2VCC V
Output high voltage Voh IOL=-1.0mA 0.8 VCC - VCC V
Output low voltage Vol IOL =1.0mA GND - 0.2 VCC V
Current consumption ICC - - 10 15 mA


LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 2*20   mA
LED voltage LED+ 1.6 2.65 3.4 V
LED Life Time － 50000   － Hr



Interface

LCM PIN Definition

NOSymbolFunctionI/O
1 GND GND －
2 GND GND －
3 RSTB Reset input pin. Active when it is low. This pin is effective when RSTEN pin is “H”.
Initialization is executed when this pin is set to “L”. SWRESET command must be required
after initialization.		 I
4 NC NC －
5 CSB Chip select input pin.
Interface access is enabled when CSB is “L” in parallel, SPI interface.
When CSB is non-active (CSB=“H”), D[7:0] pins are high impedance		 I
6 VSYNCO Vertical synchronization signal output pin. O
7 NC NC －
8 NC NC －
9 NC NC －
10 NC NC －
11 NC NC －
12 NC NC －
13 NC NC －
14 SDA Serial interface : Serial data input / output I/O
15 SCL Serial interface : connecting the SCL signal I
16 GND GND －
17 NC NC I
18 C86 Serial interface: “L” 3wire 9bit serial interface
Please do not change input level for this terminal while operating”		 －
19 NC NC －
20 VCC Power supply P
21 VCC Power supply P
22 GND GND －
23 NC NC －
24 LED1_C LED cathode 1 P
25 LED2_C LED cathode 2 P
26 NC NC －
27 NC NC －
28 LED1_A LED anode 1 P
29 LED2_A LED anode 2 P
30 NC NC
Specifiche di prodotto
Brand Winstar
Size 3"
Risoluzione 320x120
Area Attiva (mm) 72.00x27.00
Colore Monochrome
Interfaccia Display MCU (SPI)
Display IC ST7512
Angolo Visione IPS
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 30
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
