WFN0570DA2#0SPW1-FC

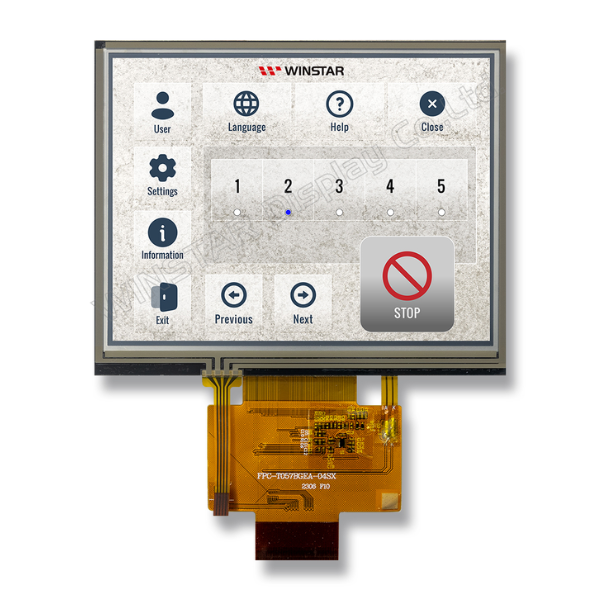

Immagine di WFN0570DA2#0SPW1-FC Immagine di WFN0570DA2#0SPW1-FC
TFT 5.7" 640x480 LCD Panel, Interface RGB, High Brightness 850cd/m², Wide View Angle (IPS), Super Extended Temperature, Resistive touch panel

DESCRIPTION

WFN0570DA2#0SPW1-FC is a color active matrix thin film transistor (TFT) liquid crystaldisplay (LCD) that uses amorphous silicon TFT as a switching device. This TFT LCD has a5.7 inch diagonally measured active display area with 640x480 (640 horizontal by 480 vertical pixel) resolution.



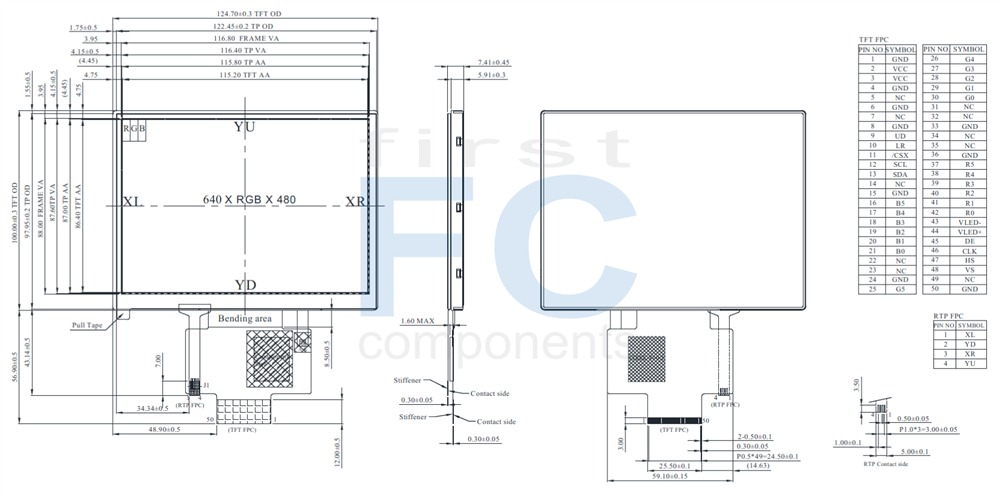

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 640 x RGB x 480(TFT) dots
Module dimension 124.7 x 100 x 7.41 mm
Active area 115.2 x 86.4 mm
Pixel pitch 0.18 x 0.18 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 89/89/89/89
TFT Driver IC JD9168S or Equivalent
TFT Interface RGB 18 bits SYNC+DE mode
Backlight Type LED, Normally White
Touch Panel Resistive Touch Panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ParameterSymbolConditionMinTypMaxUnit
Supply Voltage VCC Ta=25⁰C 3.0 3.15 3.3 V
Input voltage H VIH VCC=3.0V 0.7VCC - VCC
L VIL VCC=3.0V 0 - 0.3VCC mW
Power supply Current Operating) ICC VCC=3.0V － 50 75 mA

LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current ILED － 160 － mA
LED voltage VLED+ 15.8 18.0 19.2 V
LED Life Time － 50,000 － － Hr



Interface Pin Function

LCM PIN Definition

PinSymbolI/OFunction
1 GND P Ground.
2 VCC P Power supply for TFT
3 VCC P Power supply for TFT
4 GND P Ground.
5 NC - No connection
6 GND P Ground.
7 NC - No connection
8 GND P Ground.
9 UD I Up/down selection
10 LR I Left /right selection
11 /CSX I Chip select pin. 0: Chip can be accessed; 1: Chip cannot be accessed.
If this pin is not used, please connect it to VCC.
12 SCL I Serial clock input in SPI interface .If not use, let it open or VCC or GND.
13 SDA I Serial data input / output pin in SPI interface operation. If not use, let it open.
14 NC - No connection
15 GND P Ground.
16 B5 I Blue Data bus
17 B4 I Blue Data bus
18 B3 I Blue Data bus
19 B2 I Blue Data bus
20 B1 I Blue Data bus
21 B0 I Blue Data bus
22 NC - No connection
23 NC - No connection
24 GND P Ground.
25 G5 I Green Data bit
26 G4 I Green Data bit
27 G3 I Green Data bit
28 G2 I Green Data bit
29 G1 I Green Data bit
30 G0 I Green Data bit
31 NC - No connection
32 NC - No connection
33 GND P Ground.
34 NC - No connection
35 NC - No connection
36 GND P Ground.
37 R5 I Red Data bit
38 R4 I Red Data bit
39 R3 I Red Data bit
40 R2 I Red Data bit
41 R1 I Red Data bit
42 R0 I Red Data bit
43 VLED- P Power supply for LED cathode
44 VLED+ P Power supply for LED anode
45 DE I Data enable input in RGB interface.
46 CLK I Pixel clock input in RGB interface.
47 HS I Horizontal sync input in RGB interface.
48 VS I Vertical sync input in RGB interface
49 NC - No connection
50 GND P Ground.
SKU: WFN0570DA2#0SPW1-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€66,90
€60,20
€56,60

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€66,90 IVA esclusa

DESCRIPTION

WFN0570DA2#0SPW1-FC is a color active matrix thin film transistor (TFT) liquid crystaldisplay (LCD) that uses amorphous silicon TFT as a switching device. This TFT LCD has a5.7 inch diagonally measured active display area with 640x480 (640 horizontal by 480 vertical pixel) resolution.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 640 x RGB x 480(TFT) dots
Module dimension 124.7 x 100 x 7.41 mm
Active area 115.2 x 86.4 mm
Pixel pitch 0.18 x 0.18 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 89/89/89/89
TFT Driver IC JD9168S or Equivalent
TFT Interface RGB 18 bits SYNC+DE mode
Backlight Type LED, Normally White
Touch Panel Resistive Touch Panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ParameterSymbolConditionMinTypMaxUnit
Supply Voltage VCC Ta=25⁰C 3.0 3.15 3.3 V
Input voltage H VIH VCC=3.0V 0.7VCC - VCC
L VIL VCC=3.0V 0 - 0.3VCC mW
Power supply Current Operating) ICC VCC=3.0V － 50 75 mA

LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current ILED － 160 － mA
LED voltage VLED+ 15.8 18.0 19.2 V
LED Life Time － 50,000 － － Hr



Interface Pin Function

LCM PIN Definition

PinSymbolI/OFunction
1 GND P Ground.
2 VCC P Power supply for TFT
3 VCC P Power supply for TFT
4 GND P Ground.
5 NC - No connection
6 GND P Ground.
7 NC - No connection
8 GND P Ground.
9 UD I Up/down selection
10 LR I Left /right selection
11 /CSX I Chip select pin. 0: Chip can be accessed; 1: Chip cannot be accessed.
If this pin is not used, please connect it to VCC.
12 SCL I Serial clock input in SPI interface .If not use, let it open or VCC or GND.
13 SDA I Serial data input / output pin in SPI interface operation. If not use, let it open.
14 NC - No connection
15 GND P Ground.
16 B5 I Blue Data bus
17 B4 I Blue Data bus
18 B3 I Blue Data bus
19 B2 I Blue Data bus
20 B1 I Blue Data bus
21 B0 I Blue Data bus
22 NC - No connection
23 NC - No connection
24 GND P Ground.
25 G5 I Green Data bit
26 G4 I Green Data bit
27 G3 I Green Data bit
28 G2 I Green Data bit
29 G1 I Green Data bit
30 G0 I Green Data bit
31 NC - No connection
32 NC - No connection
33 GND P Ground.
34 NC - No connection
35 NC - No connection
36 GND P Ground.
37 R5 I Red Data bit
38 R4 I Red Data bit
39 R3 I Red Data bit
40 R2 I Red Data bit
41 R1 I Red Data bit
42 R0 I Red Data bit
43 VLED- P Power supply for LED cathode
44 VLED+ P Power supply for LED anode
45 DE I Data enable input in RGB interface.
46 CLK I Pixel clock input in RGB interface.
47 HS I Horizontal sync input in RGB interface.
48 VS I Vertical sync input in RGB interface
49 NC - No connection
50 GND P Ground.
