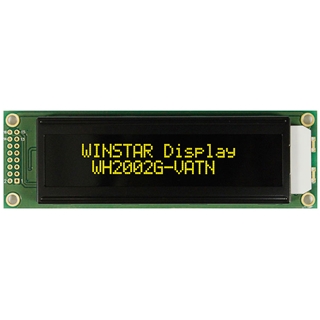

WH2002G-YLL-JTVE#

Character LCD 2.9'' 20x2, B/L yellow, VATN, COB, 5V, Interface 6800, 12 O'clock, Font Eng/Jap

DESCRIPTION



The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it’s very suitable for many applications.  Below are the examples for reference.
  • Industrial: Automotive application, Digital meter, UPS
  • Medical: medical device & medical equipment
  • Home appliance: audio, coffee machine, microwave oven
  • Automobile: dashboard, car audio

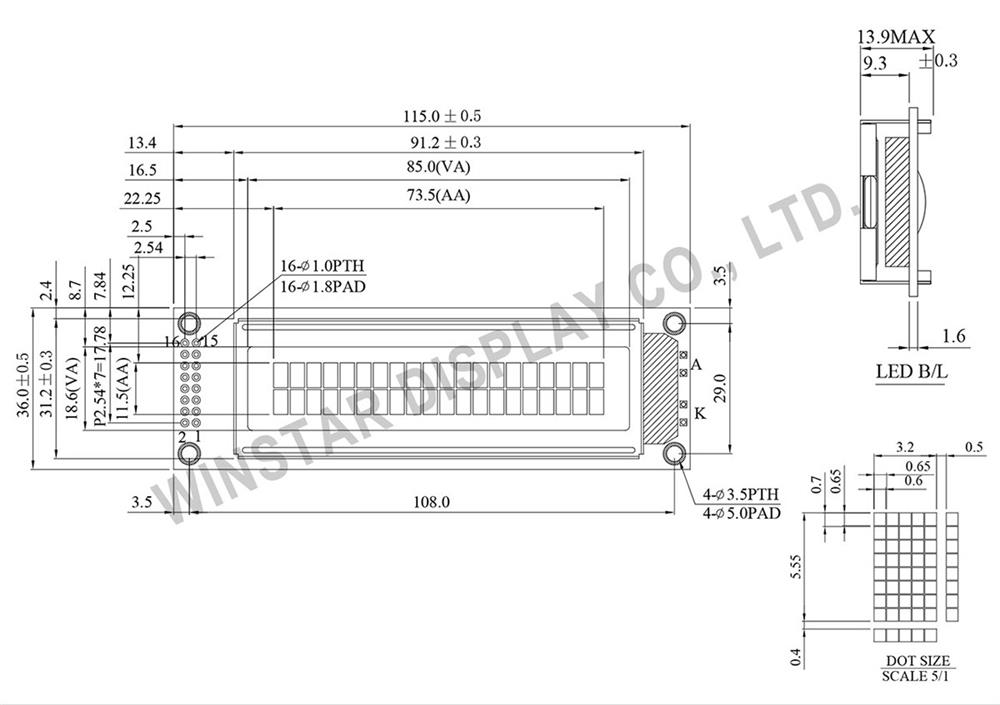

DRAWING

20x2 VATN LCD with White LED Backlight - Winstar WH2002G-SLL

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 VEE Negative Voltage Output
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 115.0 × 36.0 mm
Viewing Area 85.0 × 18.6 mm
Mounting Hole 108.0 × 29.0 mm
Character Size 3.2 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.5 V



Display Character Address Code

Display position1234567891011121314151617181920
DD RAM Address 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12 13
DD RAM Address 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4E 4F 50 51 52 53


SKU: WH2002G-YLL-JTVE#
Brand: Winstar
Disponibile: No
Prezzi per quantità
Quantità
1+
5+
10+
50+
100+
Prezzo
€12,40
€9,10
€8,50
€7,90
€7,40

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€12,40 IVA esclusa

DESCRIPTION



The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it’s very suitable for many applications.  Below are the examples for reference.
  • Industrial: Automotive application, Digital meter, UPS
  • Medical: medical device & medical equipment
  • Home appliance: audio, coffee machine, microwave oven
  • Automobile: dashboard, car audio



DRAWING

20x2 VATN LCD with White LED Backlight - Winstar WH2002G-SLL

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 VEE Negative Voltage Output
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 115.0 × 36.0 mm
Viewing Area 85.0 × 18.6 mm
Mounting Hole 108.0 × 29.0 mm
Character Size 3.2 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.5 V



Display Character Address Code

Display position1234567891011121314151617181920
DD RAM Address 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12 13
DD RAM Address 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4E 4F 50 51 52 53


Specifiche di prodotto
Brand Winstar
Size 2.9"
Risoluzione 20x2
Area Attiva (mm) 73.50x11.50
Dot Size 0.60x0.65
Colore B/L, Tipo LCD B/L yellow, VATN
Alimentazione 5V
Interfaccia 6800
Controllore a Bordo ST7066
Struttura COB
Angolo Visione 12H
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 16
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 2.9"
Risoluzione 20x2
Area Attiva (mm) 73.50x11.50
Dot Size 0.60x0.65
Colore B/L, Tipo LCD B/L yellow, VATN
Alimentazione 5V
Interfaccia 6800
Controllore a Bordo ST7066
Struttura COB
Angolo Visione 12H
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 16
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
