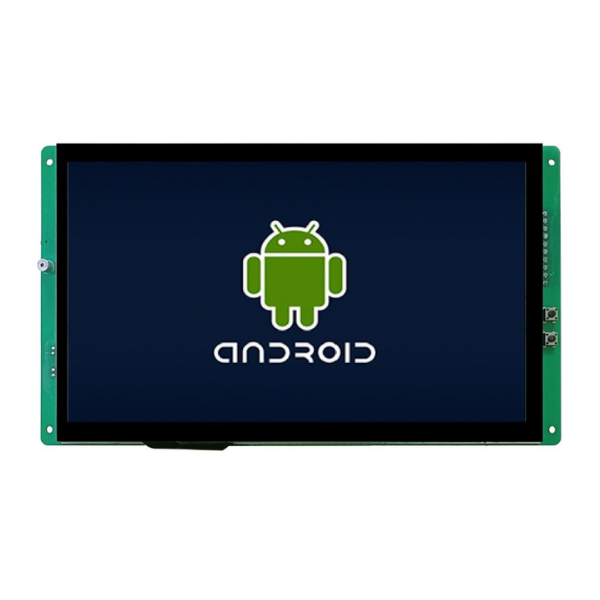

DMG10600C101_32WTC

TFT 10.1" 1024x600 with CTP Embedded Display Module - RK3566, Quad-Core, ARM Cortex-A55, Memory LPDDR4 2GB, Android 11 OS, Multiple interfaces, WiFI & BT Module

SPECIFICATIONS

Master Control Parameters

Motherboard Level	Commercial
CPU	RK3566, Cortex-A55, quad-core
OS	Android 11
FLASH	8Gbytes EMMC
RAM	2Gbytes DDR4
Note: This model do not support using Google Play Store, if you need the Google Play Store version, please refer to the following models: DMG12800C070_32WTCZ03/ DMG12800T070_32WTCZ01/ DMG10600C101_32WTCZ01

Display Parameters

Color	16.7M(16777216)colors
Panel Type	IPS
Viewing Angle	85/85/85/85 (L/R/U/D)
Active Area (A.A.)	222.72mm (W)*125.28mm (H)
Resolution	1024*600 Pixel
Backlight	LED
Brightness	200nit

Voltage & Current

Power Voltage	8~36V
Operation Current	VCC = +12V, Backlight on (430 mA)
	VCC = +12V, Backlight off (160 mA)
Recommended power supply: 12V 1A DC

Reliability Test

Working Temperature	-10~60℃, 60%RH at 12V voltage
Storage Temperature	-20~70℃
Working Humidity	10%~90%RH
Protective Paint	Yes
ESD	Air discharge±8KV, Contact discharge ±4K
EFT	Group pulse interference ±2KV
CE (Conducted Emission)	Class A

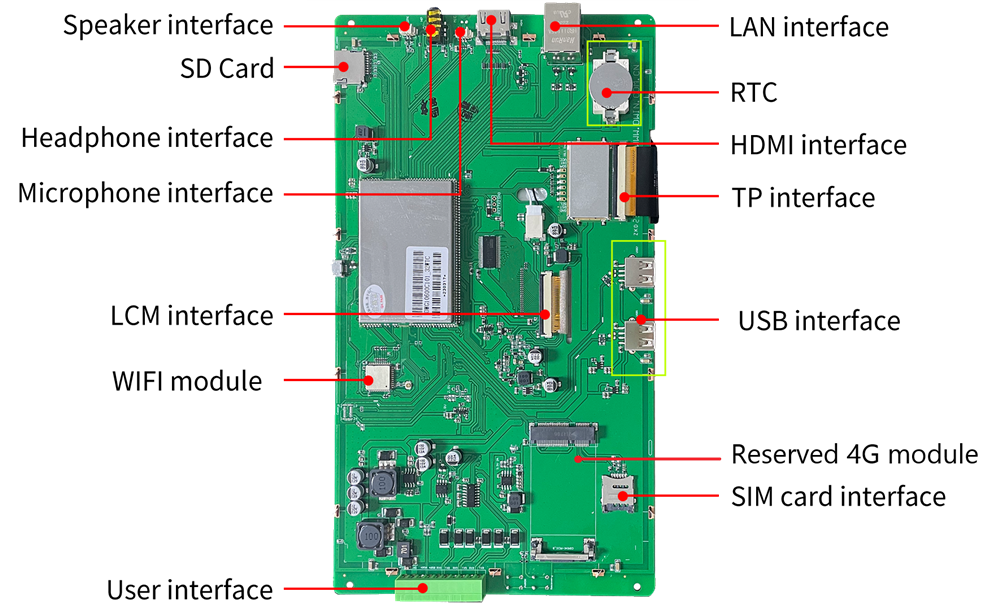

Peripheral and Interface

COM	2-way RS232
	1-way RS485
	1-way TTL/COMS
USB Interface	HOST2,OTG1
Headphone Interface	3.5mm spacing interface
Speaker Interface	2Pin_1.25mm interface
Microphone Interface	2Pin_1.25mm interface
Camera Interface	USB, Not supported by Mipi
SD Card Slot	Drawer type card slot(Max 64G)
Ethernet Interface	10/100Mbps
HDMI Interface	1-way
WIFI Interface	IEEE 802.11Bb/g/n,2.4G,Bluetooth
RTC	Button cell for power supply. Accuracy: ±20ppm @25℃

Interface Parameters

Baud Rate	2400~230440bps, typical value: 115200bps
Output Voltage (TXD)	Output 1; :Typical-5 V
Output Voltage (TXD)	Output 0; Typical:5 V
Input Voltage (RXD)	Input 1; Typical:-5 V
Input Voltage (RXD)	Input 0; Typical:5 V
Baud Rate	2400~921600bps, value: 115200bps
(V_AB)	Output 1: 5V(Typ.); 2.5V(Min.)
(V_AB)	Output 0 : -5V (Typ.); -2.5V(Max.)
(V_AB)	Input 1: 2.5V (Typ.); 0V(Min.)
(V_AB)	Input 0: -2.5V (Typ.); -0.2V(Max.)
Interface	Support TTL/COMS,RS232 or RS485 level
Socket	10Pin_3.81mm Socket

Application

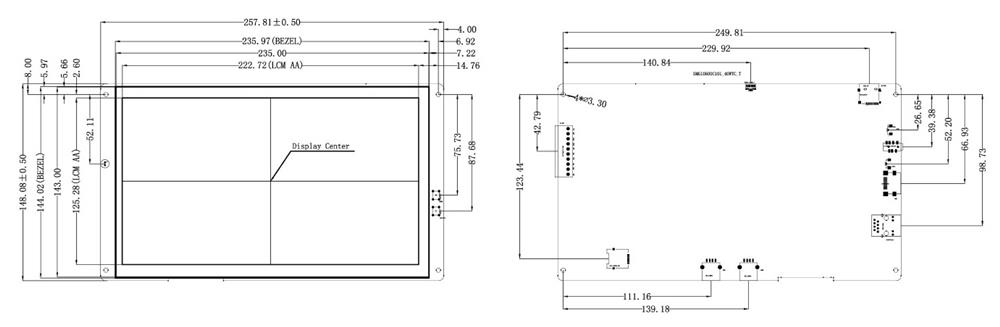

DRAWING

Square LCD Screen, Square Screen TFT, ST7789T3-G4-1 - WF0154ATAAA4DSN0

SKU: DMG10600C101_32WTC

Brand: DWIN

Available: Yes

Be the first to review this product

Price Breaks

Quantity

10+

Price

€151.30

€146.40

€137.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€151.30 excl tax

Overview
Specifications
Download
Contact Us

SPECIFICATIONS

Master Control Parameters

Motherboard Level	Commercial
CPU	RK3566, Cortex-A55, quad-core
OS	Android 11
FLASH	8Gbytes EMMC
RAM	2Gbytes DDR4
Note: This model do not support using Google Play Store, if you need the Google Play Store version, please refer to the following models: DMG12800C070_32WTCZ03/ DMG12800T070_32WTCZ01/ DMG10600C101_32WTCZ01

Display Parameters

Color	16.7M(16777216)colors
Panel Type	IPS
Viewing Angle	85/85/85/85 (L/R/U/D)
Active Area (A.A.)	222.72mm (W)*125.28mm (H)
Resolution	1024*600 Pixel
Backlight	LED
Brightness	200nit

Voltage & Current

Power Voltage	8~36V
Operation Current	VCC = +12V, Backlight on (430 mA)
	VCC = +12V, Backlight off (160 mA)
Recommended power supply: 12V 1A DC

Reliability Test

Working Temperature	-10~60℃, 60%RH at 12V voltage
Storage Temperature	-20~70℃
Working Humidity	10%~90%RH
Protective Paint	Yes
ESD	Air discharge±8KV, Contact discharge ±4K
EFT	Group pulse interference ±2KV
CE (Conducted Emission)	Class A

Peripheral and Interface

COM	2-way RS232
	1-way RS485
	1-way TTL/COMS
USB Interface	HOST2,OTG1
Headphone Interface	3.5mm spacing interface
Speaker Interface	2Pin_1.25mm interface
Microphone Interface	2Pin_1.25mm interface
Camera Interface	USB, Not supported by Mipi
SD Card Slot	Drawer type card slot(Max 64G)
Ethernet Interface	10/100Mbps
HDMI Interface	1-way
WIFI Interface	IEEE 802.11Bb/g/n,2.4G,Bluetooth
RTC	Button cell for power supply. Accuracy: ±20ppm @25℃

Interface Parameters

Baud Rate	2400~230440bps, typical value: 115200bps
Output Voltage (TXD)	Output 1; :Typical-5 V
Output Voltage (TXD)	Output 0; Typical:5 V
Input Voltage (RXD)	Input 1; Typical:-5 V
Input Voltage (RXD)	Input 0; Typical:5 V
Baud Rate	2400~921600bps, value: 115200bps
(V_AB)	Output 1: 5V(Typ.); 2.5V(Min.)
(V_AB)	Output 0 : -5V (Typ.); -2.5V(Max.)
(V_AB)	Input 1: 2.5V (Typ.); 0V(Min.)
(V_AB)	Input 0: -2.5V (Typ.); -0.2V(Max.)
Interface	Support TTL/COMS,RS232 or RS485 level
Socket	10Pin_3.81mm Socket

Application

DRAWING

Products specifications

Brand	DWIN
Size	10.1"
Resolution	1024x600
Active Area (mm)	222.72x125.28
Color	Full Color
CPU	RK3566, Quad-Core, ARM Cortex-A55
Operating System	Android 11
Power supply	12V
View Angle	IPS
Touch Panel	Capacitive
O. Temperature (°C)	-20~70
Preferred - Not Preferred	Preferred
