TFT 2.1" 480x480, Round Intelligent T5L UART with Knob and Encoder, 350cd/m², Wide View Angle (IPS), Capacitive Touch Panel

ASIC

T5L0-Q88 ASIC Developed by DWIN. Mass production in 2023,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times


Display Parameters

LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
Resolution 480×480 pixels (0°/90°/180°/270°)
Color 18-bit 6R6G6B
Active Area (A.A.) Diameter=53.28mm
View Area (V.A.) Diameter=53.88mm
Backlight Mode LED
Backlight Service Life >20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness 350nit
Brightness Control 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.


Touch Parameters

Type CTP (Capacitive touch panel)
Structure G+FF structure with surface cover of tempered glass
Touch Mode Single touch, support continuous sliding touch
Surface Hardness 6H
Light Transmittance Over 90%
Life Over 1,000,000 times touch


Electrical Specifications

Rated Power <2W
Operating Voltage 4.5~5.5V, typical value of 5V
Operating Current 155mA VCC=5V, max backlight
70mA VCC=5V, backlight off
Recommended power supply: 5V 0.5A DC



Serial Interface Parameters

Mode UART2: TTL/CMOS;
Voltage Level Test Condition Min Typ Max Unit
Output 1, Iout = -4mA 3.0 3.3 - V
Output 0, Iout = 4mA - 0 0.3 V
Input 1 2.4 3.3 5.0 V
Input 0 0 - 0.5 V
Baud Rate 3150~3225600bps, typical value of 115200bps
Data Format N81
Interface Cable 6Pin_2.0mm




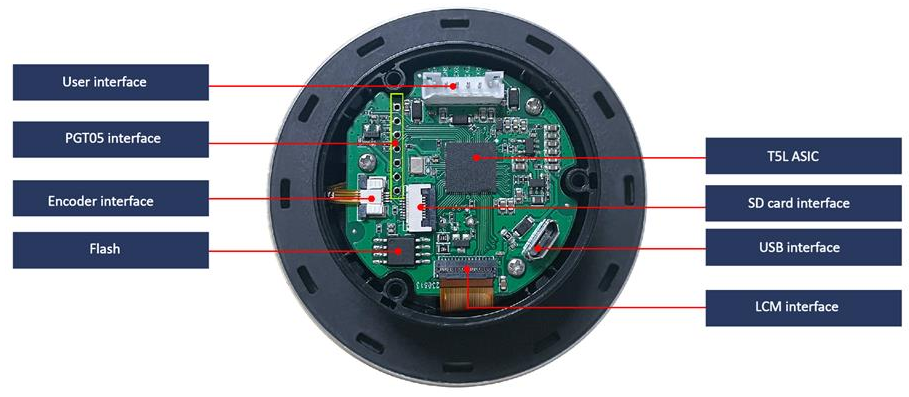

Display Connection


Accessories (Selectable in Above Menu)



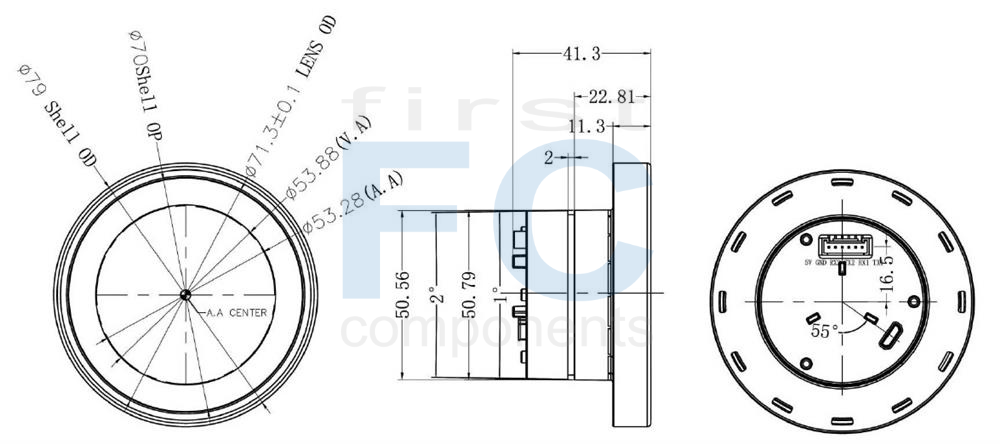

DRAWING

SKU: DMG48480C021_13WTC
Brand: DWIN
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€56.00
€49.90
€45.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€56.00 excl tax

ASIC

T5L0-Q88 ASIC Developed by DWIN. Mass production in 2023,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times


Display Parameters

LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
Resolution 480×480 pixels (0°/90°/180°/270°)
Color 18-bit 6R6G6B
Active Area (A.A.) Diameter=53.28mm
View Area (V.A.) Diameter=53.88mm
Backlight Mode LED
Backlight Service Life >20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness 350nit
Brightness Control 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.


Touch Parameters

Type CTP (Capacitive touch panel)
Structure G+FF structure with surface cover of tempered glass
Touch Mode Single touch, support continuous sliding touch
Surface Hardness 6H
Light Transmittance Over 90%
Life Over 1,000,000 times touch


Electrical Specifications

Rated Power <2W
Operating Voltage 4.5~5.5V, typical value of 5V
Operating Current 155mA VCC=5V, max backlight
70mA VCC=5V, backlight off
Recommended power supply: 5V 0.5A DC



Serial Interface Parameters

Mode UART2: TTL/CMOS;
Voltage Level Test Condition Min Typ Max Unit
Output 1, Iout = -4mA 3.0 3.3 - V
Output 0, Iout = 4mA - 0 0.3 V
Input 1 2.4 3.3 5.0 V
Input 0 0 - 0.5 V
Baud Rate 3150~3225600bps, typical value of 115200bps
Data Format N81
Interface Cable 6Pin_2.0mm




Display Connection


Accessories (Selectable in Above Menu)



DRAWING

Products specifications
Brand DWIN
Size 2.1"
Resolution 480x480
Active Area (mm) Ø53.28
Color Full Color
Nr. Of Color 262K
Operating System DGUSII OS
Power supply 5V
Display Interface UART
Display IC DWIN ASIC T5L0
View Angle IPS
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
Download
Products specifications
Brand DWIN
Size 2.1"
Resolution 480x480
Active Area (mm) Ø53.28
Color Full Color
Nr. Of Color 262K
Operating System DGUSII OS
Power supply 5V
Display Interface UART
Display IC DWIN ASIC T5L0
View Angle IPS
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
Related products
Picture of 130-SDK

130-SDK

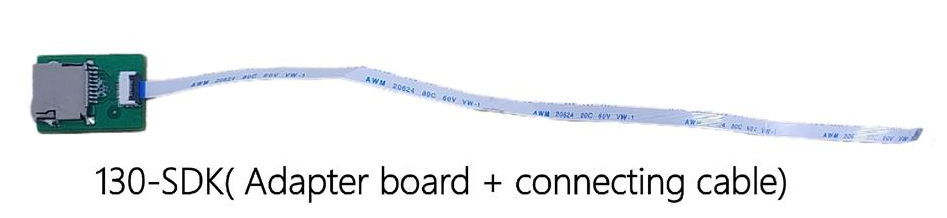

SD CARD Adapter Board with Connection Cable for DMG24240C013_13WN / DMG48480C021_13WTC
