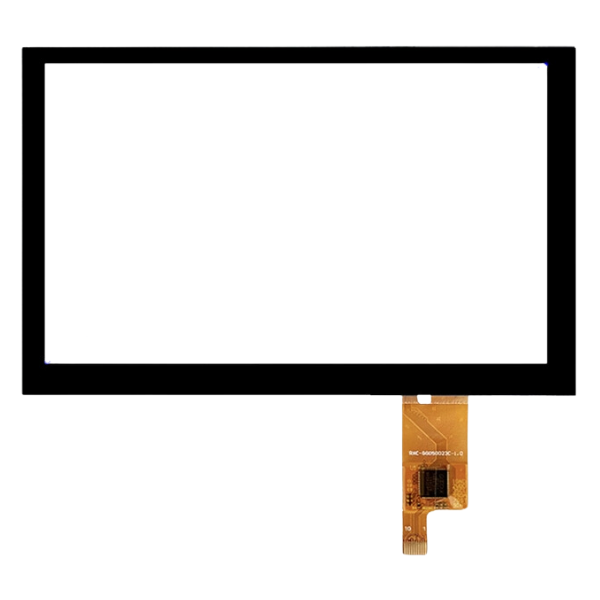

NS050-C001ME

Capacitive (GG) Touch panel 5", O.D. 109.00x65.80mm, I2C interface (GT911 IC), Glass-Glass structure, FPC per ZIF Connector

Description

NS050-C001ME is a standard 5 inch capacitive touch screen constructed from ITO on 0.55 mm glass substrate, providing excellent optical properties. This touch sensor is typically optically bonded to a 1.10mm glass cover with surface hardness 6H with light transmission of over 80%. The flex cable is assembled with GT911 touch IC that can support 5 points touch. The interface is an I2C 10 Pin connection. This capacitive touch screen is compatible with a 5 inch TFT LCD with 480x272 or 800x480 resolution.



General Specification

Item

Specification

Touch Screen Size

5.0"

Touch controller

Goodix GT911

Touch Interface

I2C

Pin Number

10pin

Structure

Glass+Glass

Glass thickness

1.10 mm

Sensor thickness

0.55 mm

Outline Dimension

120.70x76.30x1.85 mm

Valid Area

109.00x65.80 mm

Working Voltage

2.8-3.3V

Custom Touch

Available

Working Temperature

-10℃~ 60℃

Storage Temperature

-20℃~ 70℃





DRAWING



Interface Pin Function

PIN NO.

Function

1

VSS

2

VDD

3

SCL

4

VSS

5

SDA

6

VSS

7

RST

8

NC

9

INT

10

VSS
SKU: NS050-C001ME
Brand: Next Vision Display
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€15.90
€14.70
€12.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€15.90 excl tax

Description

NS050-C001ME is a standard 5 inch capacitive touch screen constructed from ITO on 0.55 mm glass substrate, providing excellent optical properties. This touch sensor is typically optically bonded to a 1.10mm glass cover with surface hardness 6H with light transmission of over 80%. The flex cable is assembled with GT911 touch IC that can support 5 points touch. The interface is an I2C 10 Pin connection. This capacitive touch screen is compatible with a 5 inch TFT LCD with 480x272 or 800x480 resolution.



General Specification

Item

Specification

Touch Screen Size

5.0"

Touch controller

Goodix GT911

Touch Interface

I2C

Pin Number

10pin

Structure

Glass+Glass

Glass thickness

1.10 mm

Sensor thickness

0.55 mm

Outline Dimension

120.70x76.30x1.85 mm

Valid Area

109.00x65.80 mm

Working Voltage

2.8-3.3V

Custom Touch

Available

Working Temperature

-10℃~ 60℃

Storage Temperature

-20℃~ 70℃





DRAWING



Interface Pin Function

PIN NO.

Function

1

VSS

2

VDD

3

SCL

4

VSS

5

SDA

6

VSS

7

RST

8

NC

9

INT

10

VSS
Products specifications
Brand Next Vision Display
Size 5"
Active Area (mm) 109.00x65.80
Display Interface I2C
Constructive Structure GG
Display Connection FPC for ZIF Connector
Pin Nr. 10
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 5"
Active Area (mm) 109.00x65.80
Display Interface I2C
Constructive Structure GG
Display Connection FPC for ZIF Connector
Pin Nr. 10
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Related products

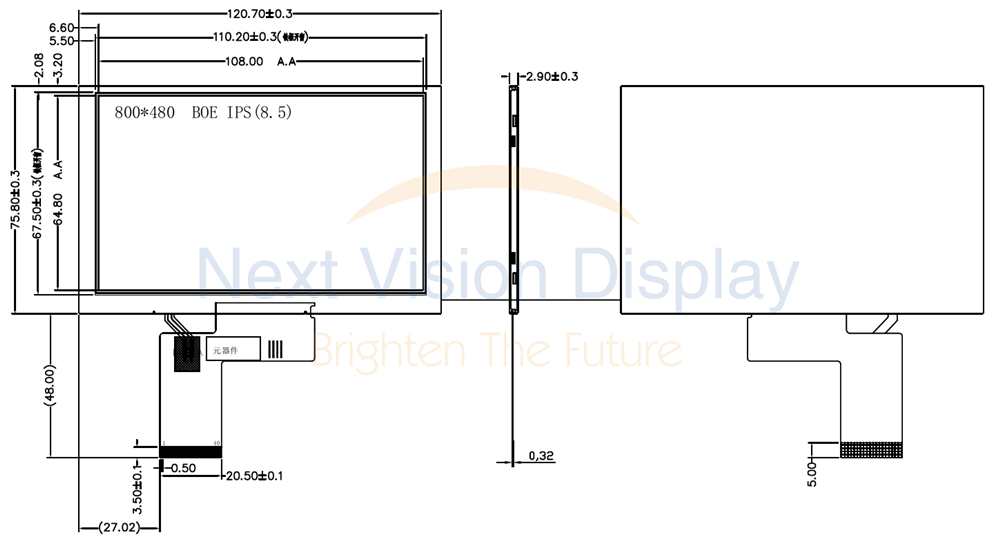

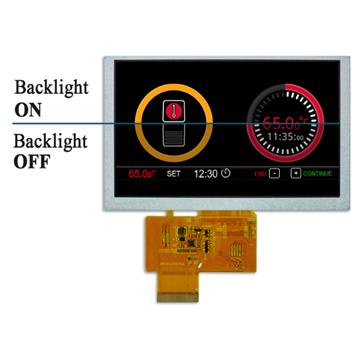

Picture of NT050-C001ME
