NT050-C001ME

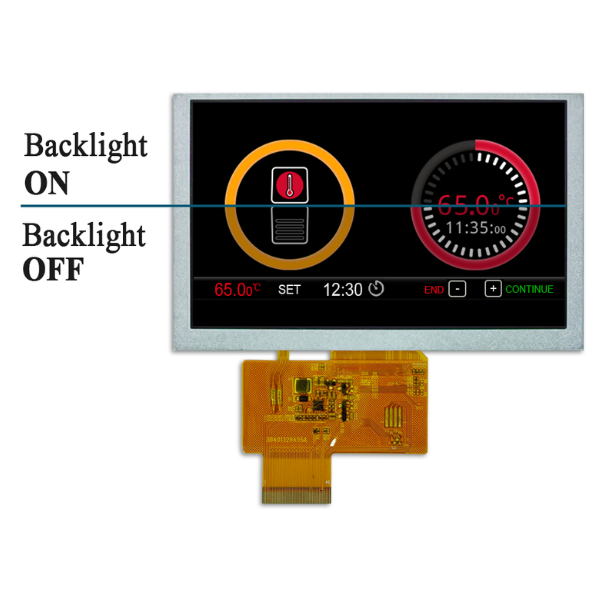

TFT 5" 800x480 LCD Panel, Interface RGB, 400cd/m², Wide view angle (IPS), Capacitive touch panel I2C interface (GG, GT911 IC)

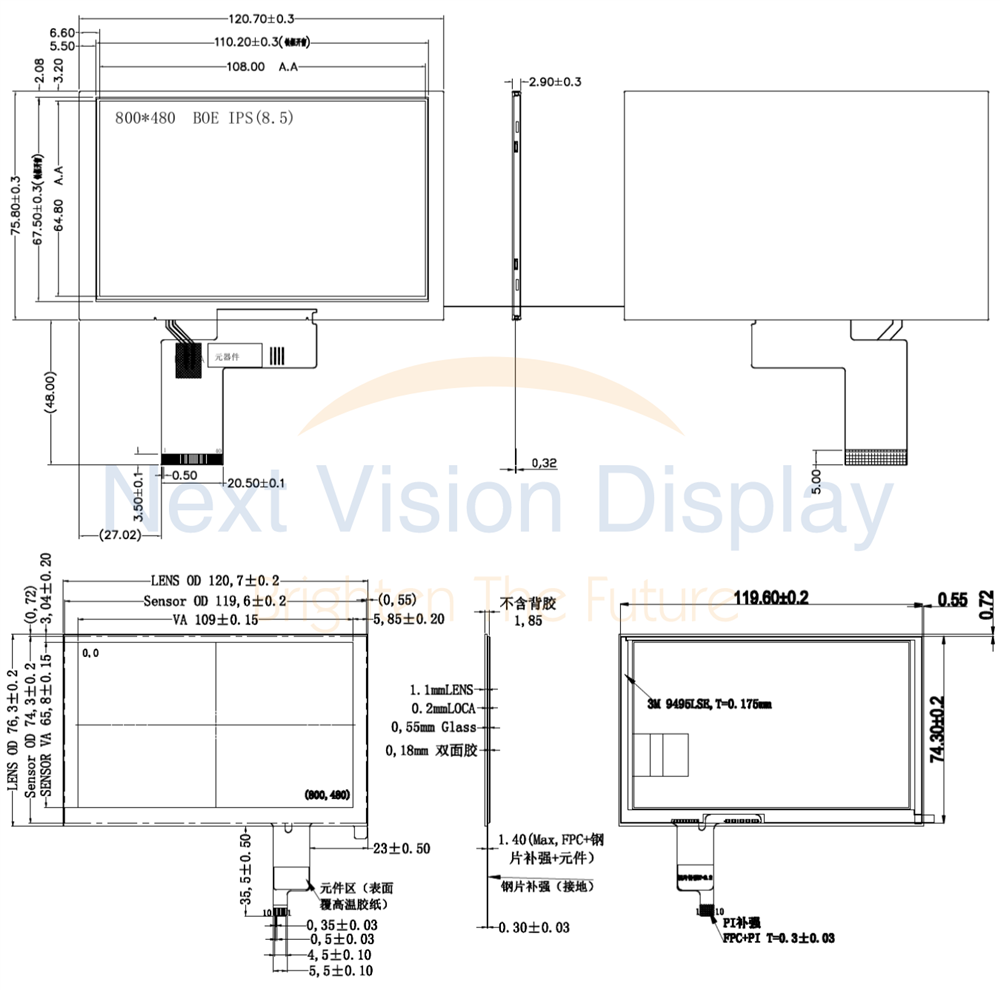

DRAWING

SPECIFICATIONS

Interface Pin Connections

HDMI interface

PinSymbolDescription
1 LED_K Backlight LED Ground
2 LED_A Backlight LED Power
3 GND GND
4 VDD Power supply
5~12 R0-R7 Red data bus
13~20 G0-G7 Green data bus
21~28 B0-B7 Blue data bus
29 GND GND
30 PCLK Data clock
31 DISP Standby mode select pin
32 HSYNC Line SYNC signal
33 VSYNC Frame SYNC signal
34 DE Data Enable Input
35 NC NC
36 GND GND
37 X1 Touch Panel Control Pin
38 Y1 Touch Panel Control Pin
39 X2 Touch Panel Control Pin
40 Y2 Touch Panel Control Pin



Mechanical Data

ItemContentsUnitNote
LCD Type Normally Black, Transmissive  -
Display Color 16.7M   1
Viewing Direction ALL O'Clock
Operating Temperature -20~70 °C
Storage Temperature -30~80 °C
Module size 120.70(W)x75.90(H)x3.05(T) mm 2
Active Area (WxH) 108.00(W)x64.80(H) mm
Number of Dots 800xRGBx480 dots
Backlight 18-LEDs(white)  pcs
Data Transfer RGB interface -

Note 1: Color tone is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.



Absolute Maximum Ratings

ItemSymbolMinMaxUnitNote
Power Supply Voltage VDD -0.3 3.6 V 1,2
Input Voltage VIn -0.3 VDD+0.5 V
Current of LED ILED 0 20 mA

Notes:

  1. If the module is above these absolute maximum ratings, it may become permanently damaged. Using the module within the following electrical characteristics conditions are also exceeded, the module will malfunction and cause poor reliability.
  2. VDD>VSS must be maintained.
  3. Please be sure users are grounded weh handing LCD Module.



Electrical Characteristics

ParameterSymbolConditionMinTypMaxUnitNote
Power supply VDD Ta=25°C 2.8 3.3 3.6 V
Input voltage 'H' VIH VDD=3.3V 0.7VDD - VDD  V
'L' VIL VDD=3.3V 0 - 0.3VDD V
Current Consumption ICC1 Normal Mode - - - mA 2
ICC2 Sleep Mode - 0.03 0.09 mA 2

Notes:

  1. When an optimum contrast is obtained in transmissive mode.
  2. Tested in 1X1 chessboard pattern.
SKU: NT050-C001ME
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€39.00
€33.70
€30.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€39.00 excl tax

DRAWING

SPECIFICATIONS

Interface Pin Connections

HDMI interface

PinSymbolDescription
1 LED_K Backlight LED Ground
2 LED_A Backlight LED Power
3 GND GND
4 VDD Power supply
5~12 R0-R7 Red data bus
13~20 G0-G7 Green data bus
21~28 B0-B7 Blue data bus
29 GND GND
30 PCLK Data clock
31 DISP Standby mode select pin
32 HSYNC Line SYNC signal
33 VSYNC Frame SYNC signal
34 DE Data Enable Input
35 NC NC
36 GND GND
37 X1 Touch Panel Control Pin
38 Y1 Touch Panel Control Pin
39 X2 Touch Panel Control Pin
40 Y2 Touch Panel Control Pin



Mechanical Data

ItemContentsUnitNote
LCD Type Normally Black, Transmissive  -
Display Color 16.7M   1
Viewing Direction ALL O'Clock
Operating Temperature -20~70 °C
Storage Temperature -30~80 °C
Module size 120.70(W)x75.90(H)x3.05(T) mm 2
Active Area (WxH) 108.00(W)x64.80(H) mm
Number of Dots 800xRGBx480 dots
Backlight 18-LEDs(white)  pcs
Data Transfer RGB interface -

Note 1: Color tone is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.



Absolute Maximum Ratings

ItemSymbolMinMaxUnitNote
Power Supply Voltage VDD -0.3 3.6 V 1,2
Input Voltage VIn -0.3 VDD+0.5 V
Current of LED ILED 0 20 mA

Notes:

  1. If the module is above these absolute maximum ratings, it may become permanently damaged. Using the module within the following electrical characteristics conditions are also exceeded, the module will malfunction and cause poor reliability.
  2. VDD>VSS must be maintained.
  3. Please be sure users are grounded weh handing LCD Module.



Electrical Characteristics

ParameterSymbolConditionMinTypMaxUnitNote
Power supply VDD Ta=25°C 2.8 3.3 3.6 V
Input voltage 'H' VIH VDD=3.3V 0.7VDD - VDD  V
'L' VIL VDD=3.3V 0 - 0.3VDD V
Current Consumption ICC1 Normal Mode - - - mA 2
ICC2 Sleep Mode - 0.03 0.09 mA 2

Notes:

  1. When an optimum contrast is obtained in transmissive mode.
  2. Tested in 1X1 chessboard pattern.
Products specifications
Brand Next Vision Display
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Related products

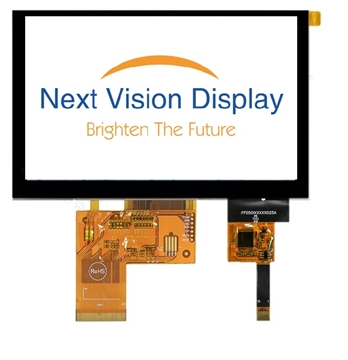

Picture of NT050-C001WS
