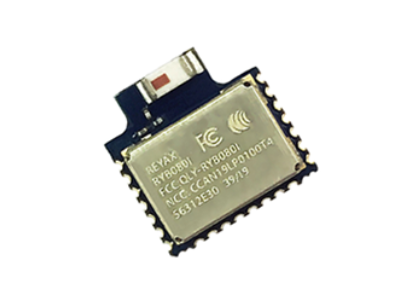

RYB080I

2.4GHz Bluetooth 5.0 (BLE) Module, Control Via AT Command, 11*11*2.2mm
  • Bluetooth v4.2 & v5.0 with Bluetooth Low Energy.
  • TI CC2640R2F ARM® Cortex®-M3 industry-standard chip.
  • Designed with PCB integrated antenna, Suitable for SMD. Size: 115.94mm^2.
  • Metal cover against EMI interference.
  • Transmitting, Receiving, Wake-up by only 2 UART pins.
  • Control easily by AT commands.
  • Standard Generic Attribute Profile (GATT).
  • Application: Smart phone/Tablet accessories, Remote monitoring and control, Smart home, Indoor positioning.
  • Certifications: NCC, FCC, MIC.



The RYB080I is a Bluetooth v4.2 & v5.0 Low Energy Module.

By using the AT command which is developed by REYAX, your products could be fast and easily connected with the smartphones and all kinds of Bluetooth devices.



Item Min. Typical Max. Unit Condition
Operation Voltage 1.8   3.8 V VDD
RF Output Power -21   5 dBm
Active Current   1.5   mA UART function is available.



BLE is broadcasting.
Advertising Average Current   0.2   mA BLE broadcast once in 100ms.
Advertising Average Current   23   uA BLE broadcast once in 1 second.
Advertising Average Current   3   uA BLE broadcast once in 10 second.
Standby Current   1      uA AT+CFUN=0
Wake Up Time   2   ms
Simultaneous connections   2
UART Baud Rate   9600 115200 bps
RF Frequency Range 2400   2483.5 MHz
Flash erase cycles   100   K Cycles
Operating Temperature -40 25 +85 ˚C
Antenna         Embedded Ceramic Antenna
Weight   0.8   g
SKU: RYB080I
Brand: Reyax
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€9.30
€9.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€9.30 excl tax
  • Bluetooth v4.2 & v5.0 with Bluetooth Low Energy.
  • TI CC2640R2F ARM® Cortex®-M3 industry-standard chip.
  • Designed with PCB integrated antenna, Suitable for SMD. Size: 115.94mm^2.
  • Metal cover against EMI interference.
  • Transmitting, Receiving, Wake-up by only 2 UART pins.
  • Control easily by AT commands.
  • Standard Generic Attribute Profile (GATT).
  • Application: Smart phone/Tablet accessories, Remote monitoring and control, Smart home, Indoor positioning.
  • Certifications: NCC, FCC, MIC.



The RYB080I is a Bluetooth v4.2 & v5.0 Low Energy Module.

By using the AT command which is developed by REYAX, your products could be fast and easily connected with the smartphones and all kinds of Bluetooth devices.



Item Min. Typical Max. Unit Condition
Operation Voltage 1.8   3.8 V VDD
RF Output Power -21   5 dBm
Active Current   1.5   mA UART function is available.



BLE is broadcasting.
Advertising Average Current   0.2   mA BLE broadcast once in 100ms.
Advertising Average Current   23   uA BLE broadcast once in 1 second.
Advertising Average Current   3   uA BLE broadcast once in 10 second.
Standby Current   1      uA AT+CFUN=0
Wake Up Time   2   ms
Simultaneous connections   2
UART Baud Rate   9600 115200 bps
RF Frequency Range 2400   2483.5 MHz
Flash erase cycles   100   K Cycles
Operating Temperature -40 25 +85 ˚C
Antenna         Embedded Ceramic Antenna
Weight   0.8   g
