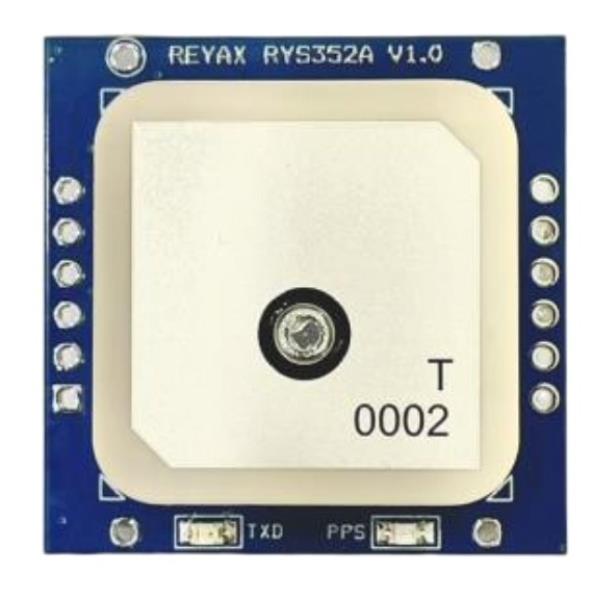

RYS352A

Multi-GNSS Integrated Antenna module, 3.3 V UART interface

Description

The RYS352A +3.3V GNSS antenna module is a multi-GNSS module with high sensitivity and performance, It supports GPS, GLONASS, Galileo, BeiDou and QZSS systems. It also supports SBAS, WAAS, EGNOS, MSAS and GAGAN and AGNSS functions.

Specification

Item	Min.	Typical	Max.	Unit	Condition
Power Supply Voltage	2.5	3.3	3.6	V	VCC

Satellite acquisition Current		33		mA
Satellite tracking Current		33		mA
RTC backup Current		12		uA
Default Baud Rate		115200		bps	8,N,1
Digital input level high	2		VCC +0.3	V	VIH
Digital input level low	-0.3		0.8	V	VIL
Digital output level high	2.4		VCC	V	VOH
Digital output level low			0.4	V	VOL
GNSS Center Frequency		1561.098 1575.42 1602.5625		MHz	BeiDou GPS 、Galileo Glonass
Accuracy of 1PPS Signal		100		ns
Navigation update rate		1	10	Hz
Accuracy		1.5		M	CEP 50%, 24 hours static, more than 6 satellites, Signal strength is 130dBm
Cold starts without AGNSS		26		Sec.	Signal strength is 130dBm
Warm starts without AGNSS		20		Sec.	Signal strength is 130dBm
Hot starts without AGNSS		1		Sec.	Signal strength is 130dBm
Cold starts with EASY ®		12		Sec.	Signal strength is 130dBm
Warm starts with EASY ®		2		Sec.	Signal strength is 130dBm
Hot starts with EASY ®		1		Sec.	Signal strength is 130dBm
Cold starts with Flash EPO ®		5		Sec.	Signal strength is 130dBm
Tracking Sensitivity		-167		dBm
Hot starts Sensitivity		-160		dBm
Cold starts Sensitivity		-148		dBm
Velocity		0.2		m/s
Altitude		10000	80000[1]	M	[1]Balloon mode
Acceleration		4		G
Operating Temperature	-40	25	+85	˚C
Battery Capacity		1		mAHr
Weight		13.6		gram

SKU: RYS352A

Brand: Reyax

Available: Yes

Be the first to review this product

Price Breaks

Quantity

Price

€13.80

€13.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€13.80 excl tax
