SK-pixxiLCD-13P2

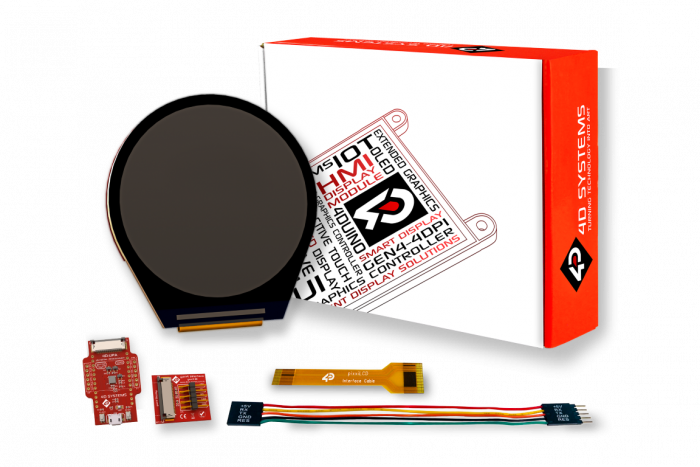

Starter Kit for pixxiLCD-13P2 1.3", 240x240 pixel, slim Intelligent Display Module with embedded PIXXI-28 processor. The pixxiLCD-13P2 includes pixxiLCD-13P2, gen4-IB, 15 to 30 way FFC Cable, 4D-UPA, 150mm 5 way Female-Female jumper cable with 5 way Male-Male adaptor



1.3” pixxiLCD Series Round Intelligent Display Module with PIXXI-28 Graphics Controller

  • 1.3", 240x240 pixel, slim Intelligent Display Module with embedded PIXXI-28 processor.
  • Non-Touch
  • IPS Display with Wide Viewing Angles
  • Suitable for fast and easy integration of a full colour HMI into any application or product.
  • Starter Kits available for first time users.
  • See product description below for more details.

The pixxiLCD-13 is part of the new and revolutionary pixxiLCD series of embedded graphics displays designed and manufactured by 4D Systems. Developed with low total cost of ownership in mind, this 1.3” Round colour TFT-LCD compact Intelligent Display module offers an array of functionality and options for any designer, integrator or user wishing to add a full color HMI into an application.

The round IPS display offers wide viewing angles.

The pixxiLCD-13 is powered by the configurable PIXXI-28 graphics processor, allowing various functionalities such as touch detection, microSD or serial flash memory storage, GPIO, and ADC, along with multiple millisecond resolution timers, and UART and I2C communication.

The pixxiLCD-13 embedded graphics displays comes in two variants:

  • Non-touch - pixxiLCD-13P2
  • Capacitive-touch - pixxiLCD-13P2-CTP-CLB

The pixxiLCD embedded graphics displays are 100% compatible with the Workshop4 IDE, which provides users with a wealth of options for programming and controlling their system.

The pixxiLCD embedded graphics displays feature a standard 15-way, 0.5mm pitch ZIF socket interface which carries the UART, I/O, I2C, power, and reset signals to/from the display.

Typical Applications include:

  • General purpose low-cost embedded graphics.
  • Elevator control systems
  • Point of sale terminals.
  • Electronic gauges and metres.
  • Test and measurement and general-purpose instrumentation.
  • Industrial control and Robotics.
  • Automotive system displays.
  • GPS/Sat-Nav systems.
  • Medical instruments and applications.
  • Heart rate and Blood pressure monitors.
  • Smart Home Automation display panels.
  • Consumer appliance devices.
  • Security and Access control panels.
  • Air conditioner control panels.
  • Lighting control panels.
  • Vending machine panels.
  • Power meter panels.
  • Gaming equipment.
  • And much more.

Information about the Display Module

  • Powerful 1.3” Intelligent Round IPS LCD-TFT display module powered by PIXXI-28
  • 240 x 240 Resolution, RGB 65K TFT Screen
  • 32KB of Flash memory for user application code.
  • 14KB of SRAM for user variables.
  • Selectable 16MB Serial Flash memory chip for multimedia storage, data files, fonts, or for holding extra code functions (to expand the code storage of the processor)
  • 3 General Purpose I/O pins for user interfacing, 2 of which are configurable as analog inputs or as I2C.
  • Master I2C port (maximum supported speed is fast I2C) for user application devices.
  • UART port, Asynchronous hardware serial, with 300 to 2187500 baud, for interfacing to a Host or Slave device. The Serial port is also used for device programming.
  • DOS compatible file access (FAT16 format) using uSD, as well as low-level access to card memory.
  • Display full-colour images, animations, icons, and video clips.
  • Supports all available Windows fonts.
  • Free comprehensive Software Development Tools (Workshop4) provides drag-and-drop style and coding environments for rapid application development, upgradable to Workshop4 PRO for additional features.
  • Standard 15-way, 0.5mm pitch ZIF socket interface which carries the UART, I/O, I2C, power, and reset signals to/from the display.
  • Single 5.0 Volt Supply (4.0V to 5.5V range).
  • Display Dimensions:
    • pixxiLCD-13P2: 35.5 x 38.0 x 5.1 mm
    • pixxiLCD-13P2-CTP-CLB: 49.0 x 49.0 x 5.8 mm
  • Weight:
    • pixxiLCD-13P2: ~5 grams
    • pixxiLCD-13P2-CTP-CLB: ~10 grams
  • RoHS, REACH and CE compliant.
  • PCB is UL 94V-0 Flammability Rated
Documentation
pdf pixxiLCD-13P2 - Datasheet 2.5 MB |Rev. 2.1

pdf pixxiLCD-13P2 Drawing 1.4 MB Rev. 2.0

pdf pixxiLCD-13P2-CTP-CLB Drawing 1.6 MB Rev. 2.0


Software Tools


Product Page
PIXXI Processor Configuration

PIXXI Processor Documentation
pdf PIXXI Internal Functions Manual 22.7 MB Rev. 1.3

pdf PIXXI-28 Datasheet 4.8 MB Rev. 1.2


STEP Models
zip

Related Documents



Tutorials & Instruction
pdf gen4-IB Datasheet 709.2 KB Rev. 1.1


For any technical clarification, refer to the 4D support center at the link https://4dsystems.com.au/support
SKU: SK-pixxiLCD-13P2
Brand: 4D Systems
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€40.60
€38.60
€37.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€40.60 excl tax



1.3” pixxiLCD Series Round Intelligent Display Module with PIXXI-28 Graphics Controller

  • 1.3", 240x240 pixel, slim Intelligent Display Module with embedded PIXXI-28 processor.
  • Non-Touch
  • IPS Display with Wide Viewing Angles
  • Suitable for fast and easy integration of a full colour HMI into any application or product.
  • Starter Kits available for first time users.
  • See product description below for more details.

The pixxiLCD-13 is part of the new and revolutionary pixxiLCD series of embedded graphics displays designed and manufactured by 4D Systems. Developed with low total cost of ownership in mind, this 1.3” Round colour TFT-LCD compact Intelligent Display module offers an array of functionality and options for any designer, integrator or user wishing to add a full color HMI into an application.

The round IPS display offers wide viewing angles.

The pixxiLCD-13 is powered by the configurable PIXXI-28 graphics processor, allowing various functionalities such as touch detection, microSD or serial flash memory storage, GPIO, and ADC, along with multiple millisecond resolution timers, and UART and I2C communication.

The pixxiLCD-13 embedded graphics displays comes in two variants:

  • Non-touch - pixxiLCD-13P2
  • Capacitive-touch - pixxiLCD-13P2-CTP-CLB

The pixxiLCD embedded graphics displays are 100% compatible with the Workshop4 IDE, which provides users with a wealth of options for programming and controlling their system.

The pixxiLCD embedded graphics displays feature a standard 15-way, 0.5mm pitch ZIF socket interface which carries the UART, I/O, I2C, power, and reset signals to/from the display.

Typical Applications include:

  • General purpose low-cost embedded graphics.
  • Elevator control systems
  • Point of sale terminals.
  • Electronic gauges and metres.
  • Test and measurement and general-purpose instrumentation.
  • Industrial control and Robotics.
  • Automotive system displays.
  • GPS/Sat-Nav systems.
  • Medical instruments and applications.
  • Heart rate and Blood pressure monitors.
  • Smart Home Automation display panels.
  • Consumer appliance devices.
  • Security and Access control panels.
  • Air conditioner control panels.
  • Lighting control panels.
  • Vending machine panels.
  • Power meter panels.
  • Gaming equipment.
  • And much more.

Information about the Display Module

  • Powerful 1.3” Intelligent Round IPS LCD-TFT display module powered by PIXXI-28
  • 240 x 240 Resolution, RGB 65K TFT Screen
  • 32KB of Flash memory for user application code.
  • 14KB of SRAM for user variables.
  • Selectable 16MB Serial Flash memory chip for multimedia storage, data files, fonts, or for holding extra code functions (to expand the code storage of the processor)
  • 3 General Purpose I/O pins for user interfacing, 2 of which are configurable as analog inputs or as I2C.
  • Master I2C port (maximum supported speed is fast I2C) for user application devices.
  • UART port, Asynchronous hardware serial, with 300 to 2187500 baud, for interfacing to a Host or Slave device. The Serial port is also used for device programming.
  • DOS compatible file access (FAT16 format) using uSD, as well as low-level access to card memory.
  • Display full-colour images, animations, icons, and video clips.
  • Supports all available Windows fonts.
  • Free comprehensive Software Development Tools (Workshop4) provides drag-and-drop style and coding environments for rapid application development, upgradable to Workshop4 PRO for additional features.
  • Standard 15-way, 0.5mm pitch ZIF socket interface which carries the UART, I/O, I2C, power, and reset signals to/from the display.
  • Single 5.0 Volt Supply (4.0V to 5.5V range).
  • Display Dimensions:
    • pixxiLCD-13P2: 35.5 x 38.0 x 5.1 mm
    • pixxiLCD-13P2-CTP-CLB: 49.0 x 49.0 x 5.8 mm
  • Weight:
    • pixxiLCD-13P2: ~5 grams
    • pixxiLCD-13P2-CTP-CLB: ~10 grams
  • RoHS, REACH and CE compliant.
  • PCB is UL 94V-0 Flammability Rated
Documentation
pdf pixxiLCD-13P2 - Datasheet 2.5 MB |Rev. 2.1

pdf pixxiLCD-13P2 Drawing 1.4 MB Rev. 2.0

pdf pixxiLCD-13P2-CTP-CLB Drawing 1.6 MB Rev. 2.0


Software Tools


Product Page
PIXXI Processor Configuration

PIXXI Processor Documentation
pdf PIXXI Internal Functions Manual 22.7 MB Rev. 1.3

pdf PIXXI-28 Datasheet 4.8 MB Rev. 1.2


STEP Models
zip

Related Documents



Tutorials & Instruction
pdf gen4-IB Datasheet 709.2 KB Rev. 1.1


For any technical clarification, refer to the 4D support center at the link https://4dsystems.com.au/support
Products specifications
Brand 4D Systems
Size 1.30"
Resolution 240x240
Viewing Area (mm) 33.00x33.00
Color Full Color
Nr. Of Color RGB 65K
Power supply 5V
Built-in Controller PIXXI-28
Brightness (cd/m²) 300
Touch Panel No touch
O. Temperature (°C) -13~70
In the Box IN THE BOX: pixxiLCD-13P2, gen4-IB, 15 to 30 way FFC Cable, 4D-UPA, 150mm 5 way Female-Female jumper cable with 5 way Male-Male adaptor
