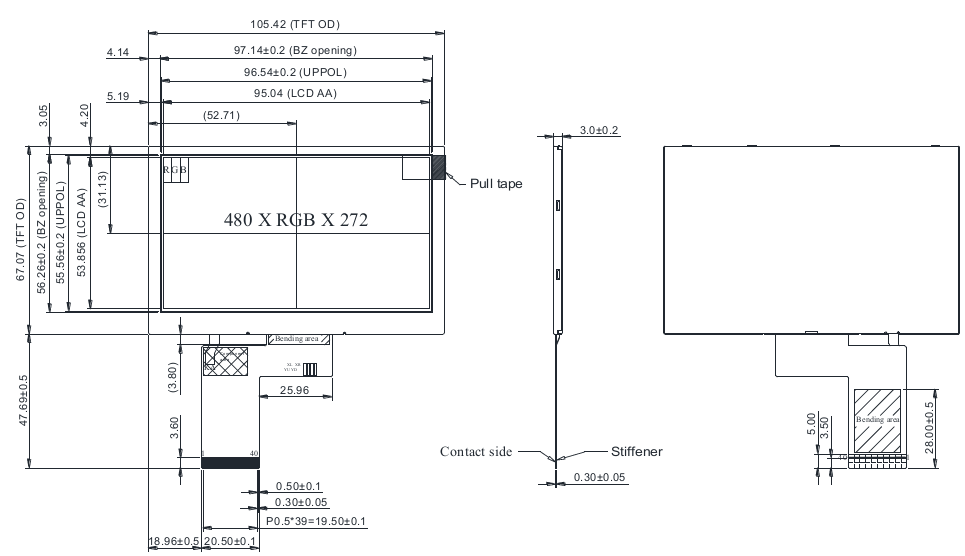

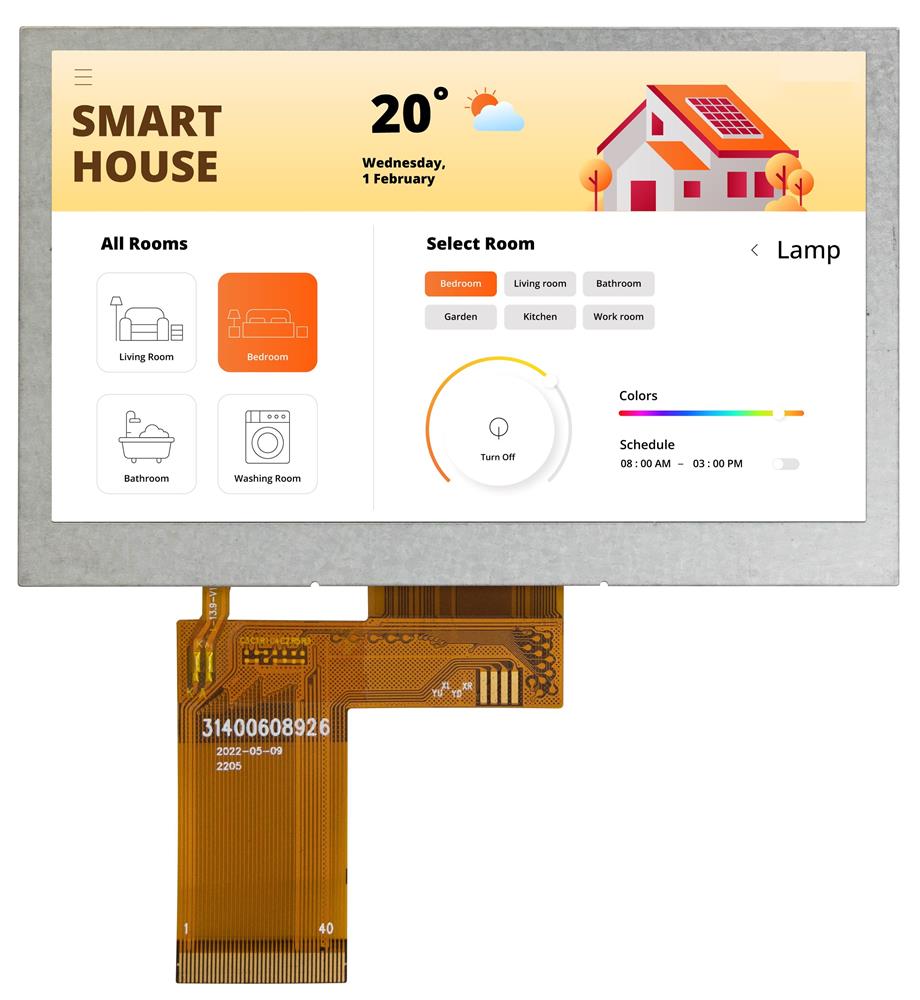

TFT 4.3'' Panel No Touch, 480x272, IPS, SC7283 IC, Anti-glare ☛ WF43-480272ZD#0P0-FC
|
  |
TFT 4.3'' 480x272pixels is a IPS transmissive type color active matrix TFT liquid crystal display. This module is usually designed for industrial application and follows RoHs specifications. It supports 24-bit RGB interface and it is built-in with SC7283 driver ICs. Supply voltage (VCC) from 3.3V to 3.6V, typical value 3.3V. Operating temperature from -20℃ to +70℃; storage temperature from -30℃ to +80℃.
This is the most price competitive 4,3” TFT panel available in FC Catalogue!

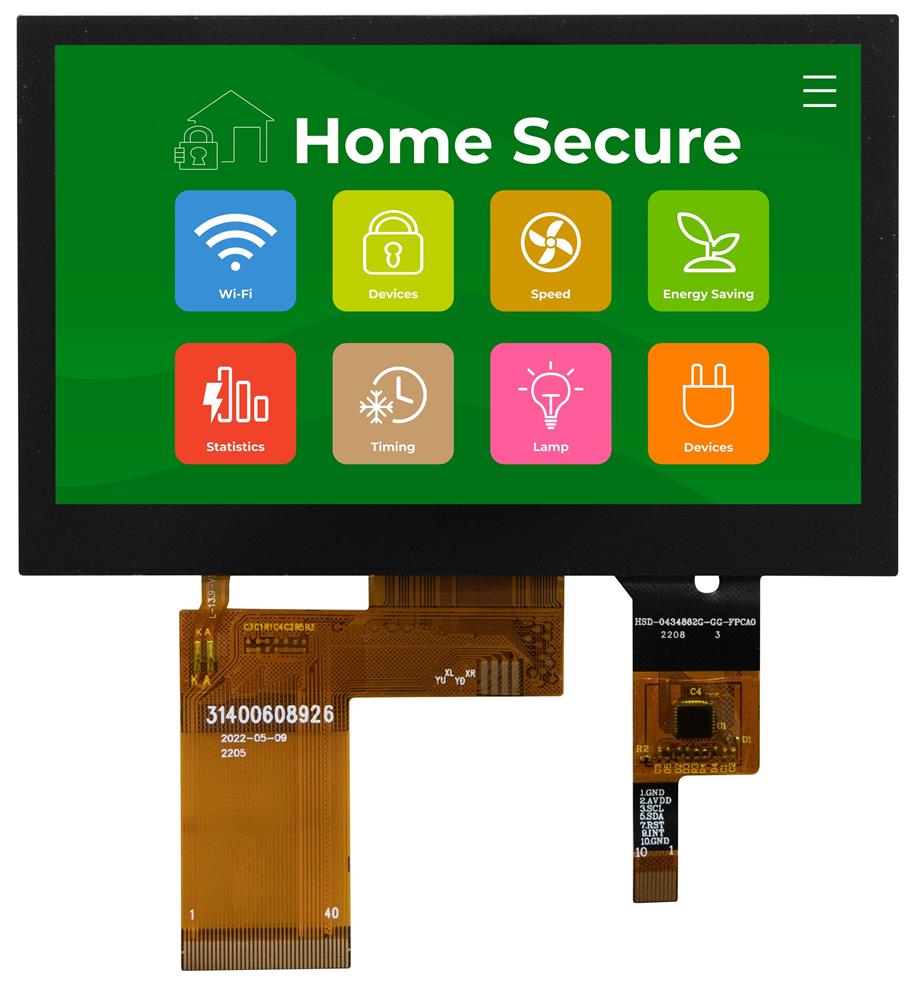

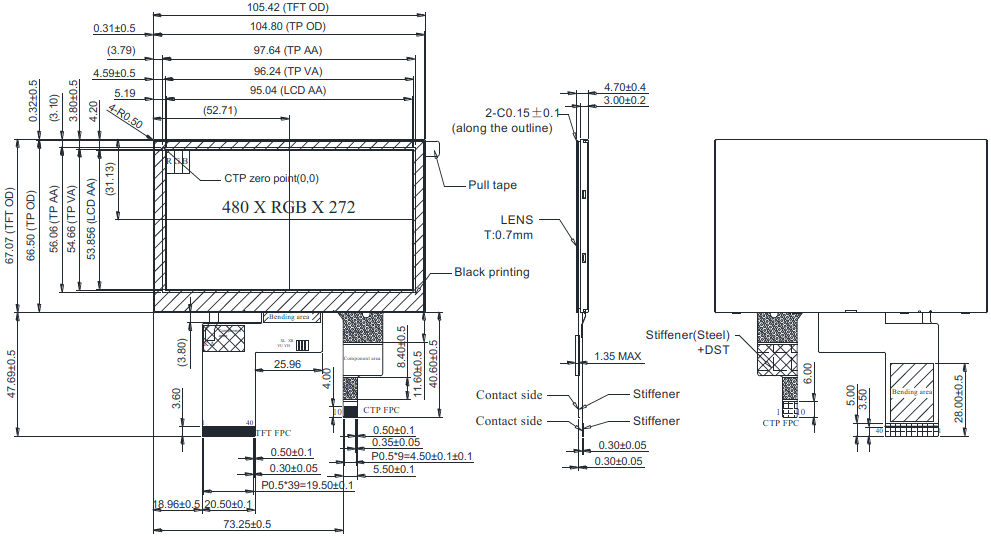

TFT 4.3'' with Capacitive Touch Panel, 480x272, IPS, SC7283 IC, Glare ☛ WF43-480272ZD#0P3-FC
|
 |
TFT 4.3'' 480x272 pixels is a IPS transmissive type color active matrix TFT liquid crystal display with capacitive touch panel. This module is usually designed for industrial application and follows RoHs specifications. It supports 24-bit RGB interface and it is built-in with SC7283 driver ICs. Supply voltage (VCC) from 3.3V to 3.6V, typical value 3.3V. Operating temperature from -20℃ to +70℃; storage temperature from -30℃ to +80℃.
This is the most price competitive 4,3” TFT panel with Capacitive Touch Panel available in FC Catalogue!
