WF43-480272ZD#0P3-FC

TFT 4.3'' 480x272, LCD Module, Interface RGB, Wide View Angle (IPS), 150cd/m², Capacitive Touch Panel, Glare

DESCRIPTION

TFT 4.3” is a IPS transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHs.

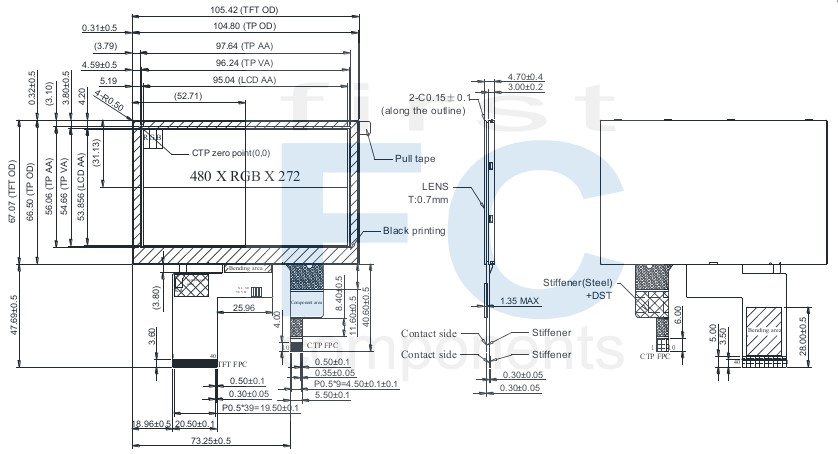

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

Pin	Symbol	Function	Remark
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	GND	Power ground
4	VCC	Power voltage
5	R0	Red data
6	R1	Red data
7	R2	Red data
8	R3	Red data
9	R4	Red data
10	R5	Red data
11	R6	Red data
12	R7	Red data
13	G0	Green data
14	G1	Green data
15	G2	Green data
16	G3	Green data
17	G4	Green data
18	G5	Green data
19	G6	Green data
20	G7	Green data
21	B0	Blue data
22	B1	Blue data
23	B2	Blue data
24	B3	Blue data
25	B4	Blue data
26	B5	Blue data
27	B6	Blue data
28	B7	Blue data
29	GND	Power ground
30	CLK	Pixel clock input pin (DCLK)

31	DISP	DISP sets the display mode.
32	HSYNC	Horizontal sync signal, default is negative polarity.
33	VSYNC	Vertical sync signal, default is negative polarity.
34	DE	Data input enable.
35	NC	No connection
36	GND	Power ground
37	NC	No connection
38	NC	No connection
39	NC	No connection
40	NC	No connection

General Specifications

Item	Dimension	Unit
Size	4.3	inch
Dot Matrix	480 x RGBx272(TFT)	dots
Module dimension	105.42(W) x 67.07(H) x 4.7(D)	mm
Active area	95.04 x 53.856	mm
Pixel pitch	0.198 x 0.198	mm
LCD type	TFT, Normally Black, Transmissive
Viewing Angle	85/85/85/85
Aspect Ratio	16:9
TFT Driver IC	SC7283 or equivalent
Interface	TTL RGB-24bit parallel interface
CTP Driver IC	ST1624 or equivalent
CTP Resolution	480*272
CTP Interface	I2C
CTP FW Version	V01
Backlight Type	LED,Normally White
With /Without TP	With CTP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	-	+70	°C
Storage Temperature	TST	-30	-	+80	°C

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit	Remark
Supply Voltage For LCM	VCC	3.0	3.3	3.6	V	-
Supply Current For LCM	ICC	10	25	40	mA	Note1
Supply Voltage For Touch Logic	VDDT	-	3.3	-	V	-
Supply Voltage For Touch Logic	ICTP	-	15	-	mA	-

Optical Characteristics

Item		Symbol		Min			Unit	Remark
Response time		Tr+ Tf	θ=0^°、Φ=0^°	5.2	6.2		ms
Contrast ratio		CR	At optimized viewing angle	800	1000	-	-
Color Chromaticity	White	Wx	θ=0^°、Φ=0	0.26	0.29	0.32	-
Color Chromaticity	White	Wy	θ=0^°、Φ=0	0.31	0.34	0.37	-
Viewing angle		ΘR	CR≧10	80	85	-		Note 1
		ΘL		80	85	-
		ΦT		80	85	-
		ΦB		80	85	-
Brightness		-	-	100	150	-	cd/m2	Center of display
Uniformity		(U)	-	75	-	-	%

Ta=25±2℃, IL=20mA

Note 1: Definition of viewing angle range
