WF43-480272ZD#0P0-FC

TFT 4.3" 480x272, LCD Module, Interface RGB, Wide View Angle (IPS), 220cd/m², No Touch Panel, Anti-glare



DESCRIPTION



TFT 4.3” is a IPS transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHs



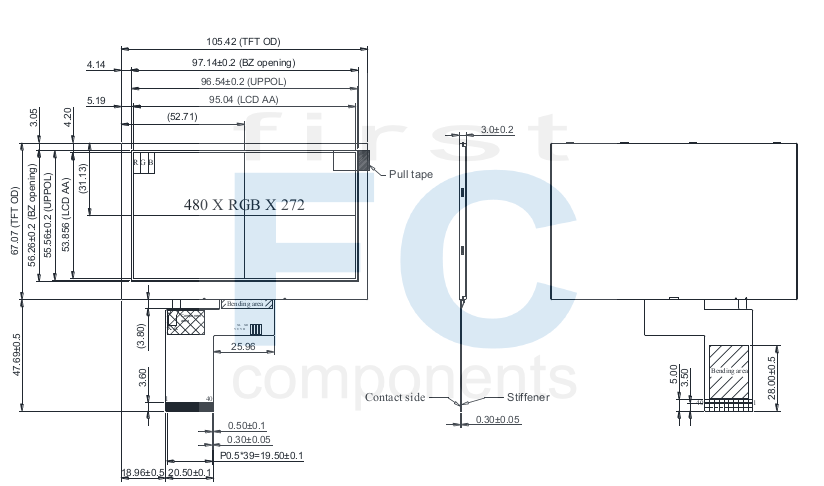

DRAWING







SPECIFICATIONS



Interface

LCM PIN Definition

Pin

Symbol

Function

Remark

1

VLED-

Power for LED backlight cathode



2

VLED+

Power for LED backlight anode



3

GND

Power ground



4

VCC

Power voltage



5

R0

Red data



6

R1

Red data



7

R2

Red data



8

R3

Red data



9

R4

Red data



10

R5

Red data



11

R6

Red data



12

R7

Red data



13

G0

Green data



14

G1

Green data



15

G2

Green data



16

G3

Green data



17

G4

Green data



18

G5

Green data



19

G6

Green data



20

G7

Green data



21

B0

Blue data



22

B1

Blue data



23

B2

Blue data



24

B3

Blue data



25

B4

Blue data



26

B5

Blue data



27

B6

Blue data



28

B7

Blue data



29

GND

Power ground



30

CLK

Pixel clock input pin (DCLK)



31

DISP

DISP sets the display mode.



32

HSYNC

Horizontal sync signal, default is negative polarity.



33

VSYNC

Vertical sync signal, default is negative polarity.



34

DE

Data input enable.



35

NC

No connection



36

GND

Power ground



37

NC

No connection



38

NC

No connection



39

NC

No connection



40

NC

No connection





General Specifications

Item

Dimension

Unit

Size

4.3

inch

Dot Matrix

480 x RGBx272(TFT)

dots

Module dimension

105.42(W) x 67.07(H) x 3.0(D)

mm

Active area

95.04 x 53.856

mm

Pixel pitch

0.198 x 0.198

mm

LCD type

TFT, Normally Black, Transmissive

Viewing Angle

85/85/85/85

Aspect Ratio

16:9

TFT Driver IC

SC7283 or equivalent

Interface

TTL RGB-24bit parallel interface

Backlight Type

LED,Normally White

With /Without TP

Without TP

Surface

Anti-Glare



Absolute Maximum Ratings

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature

TOP

-20

-

+70

°C

Storage Temperature

TST

-30

-

+80

°C



Electrical Characteristics

Operating conditions

Item

Symbol

Min

Typ

Max

Unit

Remark

Supply Voltage For LCM

VCC

3.0

3.3

3.6

V



Supply Current For LCM

ICC

10

25

40

mA

Note1



LED driving conditions

Parameter

Symbol



Unit

Remark

LED current

-

-

20

-

mA

-

Power Consumption

-



434



mW

-

LED voltage

VLED+

19.6

21.7

23.8

V

Note 1

LED Life Time

-

30000

-

-

Hr

Note 2,3,4



Optical Characteristics

Item

Symbol



Min



Unit

Remark

Response time

Tr+ Tf

θ=0°、Φ=0°

5.2

6.2



ms

Note 3

Contrast ratio

CR

At optimized
viewing angle

800

1000

-

-

Note 4

Color

Chromaticity

White

Wx

θ=0°、Φ=0

0.26

0.29

0.32

-

Note

2,6,7

Wy

0.31

0.34

0.37

-

Viewing angle



ΘR

CR≧10

80

85

-



Note 1

ΘL

80

85

-



ΦT

80

85

-

ΦB

80

85

-

Brightness

-

-

180

220

-

cd/m2

Center of display

Uniformity

(U)

-

75

-

-

%

Note 5





SKU: WF43-480272ZD#0P0-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€19.70
€14.40
€11.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€19.70 excl tax
