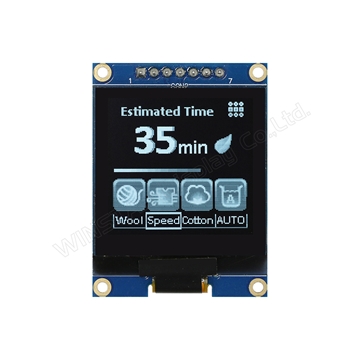

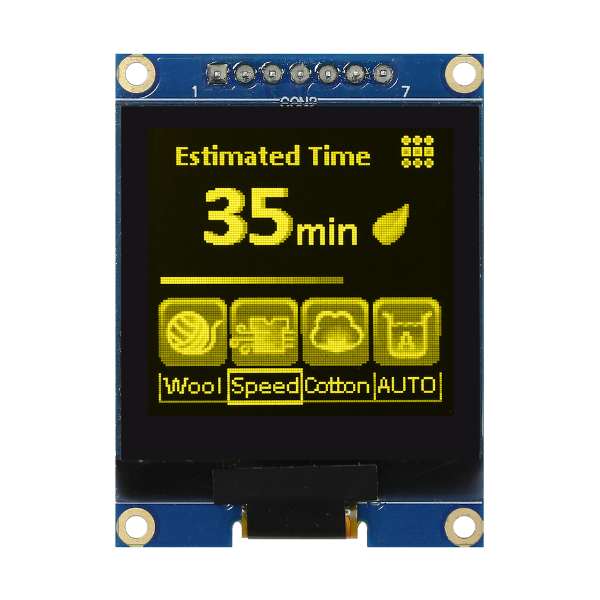

WEA128128L#AA3N00000-FC

PMOLED 1.5" Graphic 128x128, Yellow, COG + PCB, 3~5V, Interface SPI, Anti-glare

DESCRIPTION

WEA128128x#Axxxxxxxx-FC model is the extension item of WEO128128x#Axx-FC which is having a PCB board on module; it’s diagonal size 1.5 inch, made of 128x128 pixels. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. WEA128128x#Axxxxxxxx-FC OLED module is built in with SSD1327 IC; it supports 4-wire SPI interface; optional I2C interface, 16 (4bits) gray scale, driving duty 1/128, supply voltage for logic is from 3.3V ~5V, the display with 50% Check board current is 160 mA @3.3VDD (typical value).

This OLED module is suitable for smart home application, medical device, smart control, meter, etc. WEA128128x#Axxxxxxxx-FC module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

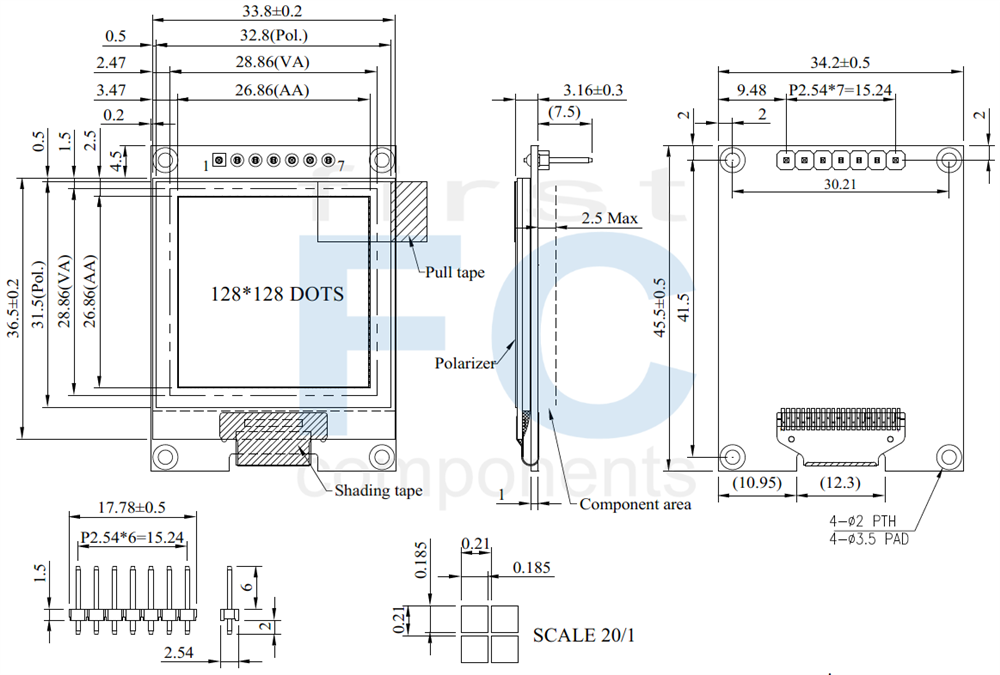

DRAWING

OLED 1.5 inch,1.5 OLED Display, 1.5 inch OLED Display, 1.5 inch OLED Module - WEA128128A

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	GND	This is a ground pin.
2	VCC	Power supply for panel driving voltage. This is also the most positive power voltage supply pin. It is supplied by external high voltage source.
3	D0	These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
4	D1
5	RES#	This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation.
6	D/C#	This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
7	CS#	This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).

General Specification

Item	Dimension	Unit
Dot Matrix	128 x 128 Dots	－
Module dimension	34.2 x 45.5 x 3.16	mm
Active Area	26.86 x 26.86	mm
Pixel Size	0.185 x 0.185	mm
Pixel Pitch	0.210 x 0.210	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/128 Duty
Gray Scale	4 bits
IC	SSD1327
Interface	4-Wire SPI option I2C
Size	1.5 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VCC	1.65	5.5	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic(3V/5V)	VCC	－	2.8	3.3	5.2	V
Input High Volt.	VIH	－	0.8×VCC	－	VCC	V
Input Low Volt.	VIL	－	0	－	0.2×VCC	V
Output High Volt.	VOH	－	0.9×VCC	－	VCC	V
Output Low Volt.	VOL	－	0	－	0.1×VCC	V
50% Check Board operating Current	ICC	VCC=3.3V	－	160	320	mA
