WEA9616L#A00-FC

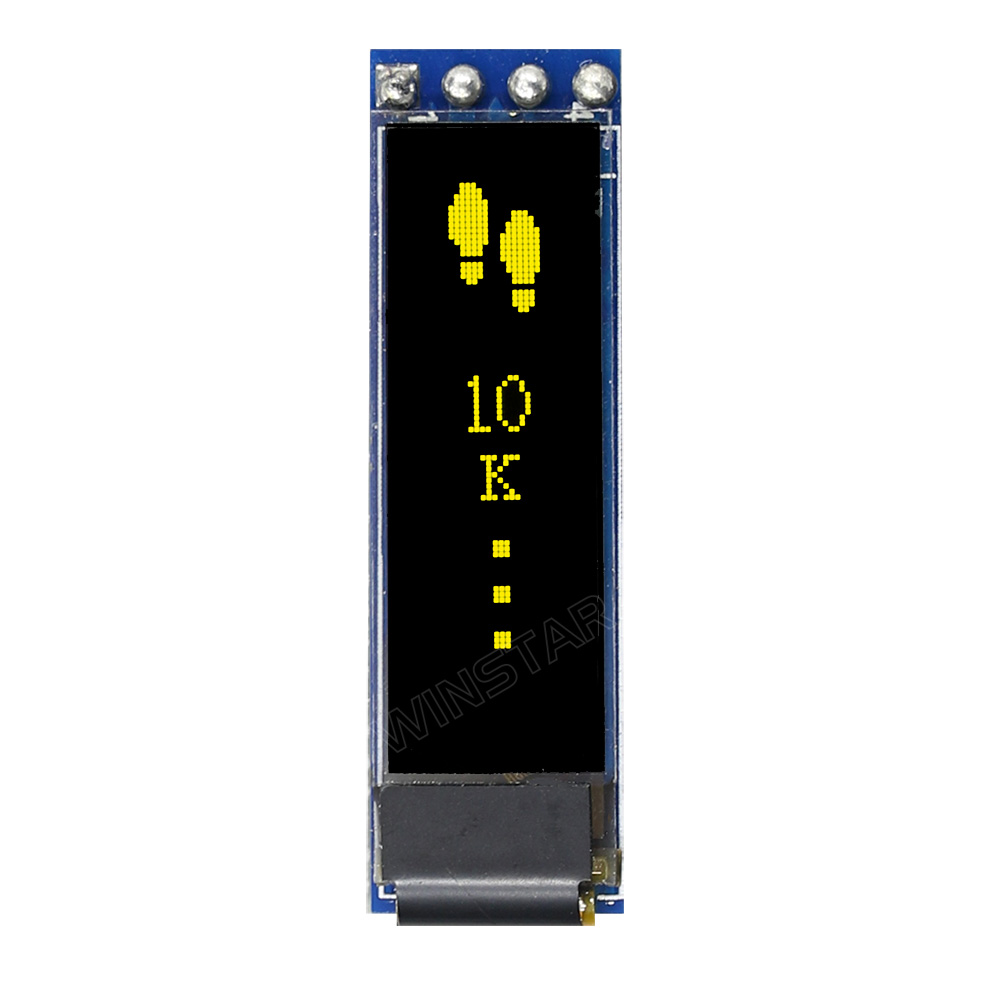

PMOLED 0.84'' Graphic 96x16, Yellow color, COG + PCB, 3V, Interface I2C (Pin)

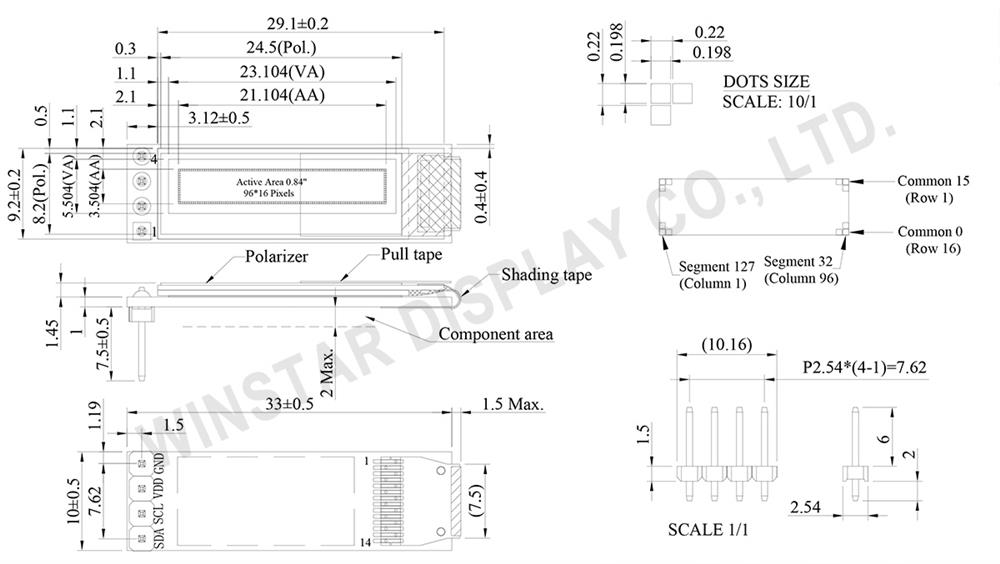

DRAWING

0.84 OLED Display (COG PCB) - WEA009616A - Winstar



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 GND Ground
2 VDD Power supply input.
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4 SDA



Mechanical Data

ItemDimensionUnit
Dot Matrix 96 x 16 Dots
Module dimension 33 × 10 × 2.45 mm
Active Area 21.104 × 3.504 mm
Pixel Size 0.198 × 0.198 mm
Pixel Pitch 0.220 × 0.220 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/16Duty
IC SSD1306
Interface I2C
Size 0.84 inch



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 2.8 3.0 3.2 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% check Board operating Current ICC VCC=7.5V 13.0 26.0 mA



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD 0 4.0 V
Supply Voltage for Display VCC 0 16.0 V
Operating Temperature TOP -40 80 °C
Storage Temperature TSTG -40 85 °C


SKU: WEA9616L#A00-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€3.70
€2.70
€2.70
€2.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€3.70 excl tax

DRAWING

0.84 OLED Display (COG PCB) - WEA009616A - Winstar



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 GND Ground
2 VDD Power supply input.
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4 SDA



Mechanical Data

ItemDimensionUnit
Dot Matrix 96 x 16 Dots
Module dimension 33 × 10 × 2.45 mm
Active Area 21.104 × 3.504 mm
Pixel Size 0.198 × 0.198 mm
Pixel Pitch 0.220 × 0.220 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/16Duty
IC SSD1306
Interface I2C
Size 0.84 inch



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 2.8 3.0 3.2 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% check Board operating Current ICC VCC=7.5V 13.0 26.0 mA



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD 0 4.0 V
Supply Voltage for Display VCC 0 16.0 V
Operating Temperature TOP -40 80 °C
Storage Temperature TSTG -40 85 °C


Products specifications
Brand Winstar
Size 0.84"
Resolution 96x16
Active Area (mm) 21.10x3.50
Dot Size 0.19x0.19
Polarizer Glare
Color Yellow
Power supply 3V
Interface I2C
Built-in Controller SSD1306BZ
Structure COG + PCB
Frame No
Touch Panel No touch
Display Connection Pin
Pin Nr. 4
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
