Replaced by new drop pin compatible version with new IC WS0010-TX // Direct link in 'Related Product' section on the bottom page.

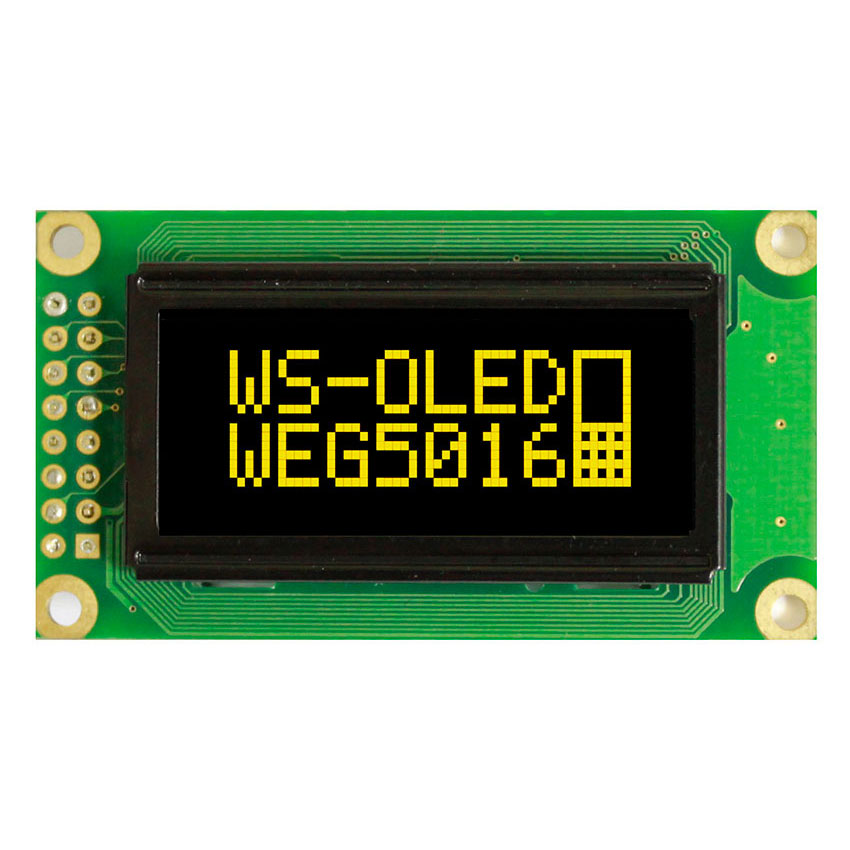

Winstar monochrome 50x16 pixel OLED graphic display has the same outline size of 58.00 x 32.00 mm, VA size of 38.00 x 16.00 mm and pin out as Winstar STN LCD standard item no. WH0802A. If you are planning a new design and you are currently using similar Winstar WH0802A LCD modules, you can choose this display OLED. You will need a very small modification to your PCB layout to your design without changing the mechanical part for your product!
This OLED module is lightweight, low power consumption since it only powers the pixels that are necessary. It has different interfaces available, default 6800 or options 8080 and SPI. These COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.
For quantities above 25 pcs pls send your enquiry to firstname.lastname@example.org or call +39 0332 1888005
