WEG10016B#EP3N00100-FC

PMOLED 2.4'' Graphic 100x16, Blue color, COB, 3.3V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010

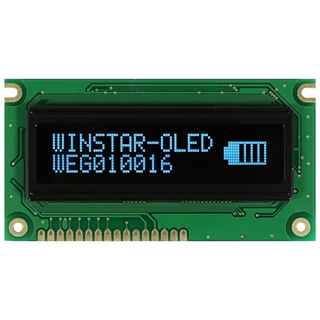

Winstar 2.4" OLED Display which is made of 100x16 pixels. This display is built-in WS0010-TX controller is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface.  This 2.4 inch OLED display has different interface available, default 6800 or option 8080. The operating temperature and storage temperature ranges are -40 ℃ ~ 80 ℃.

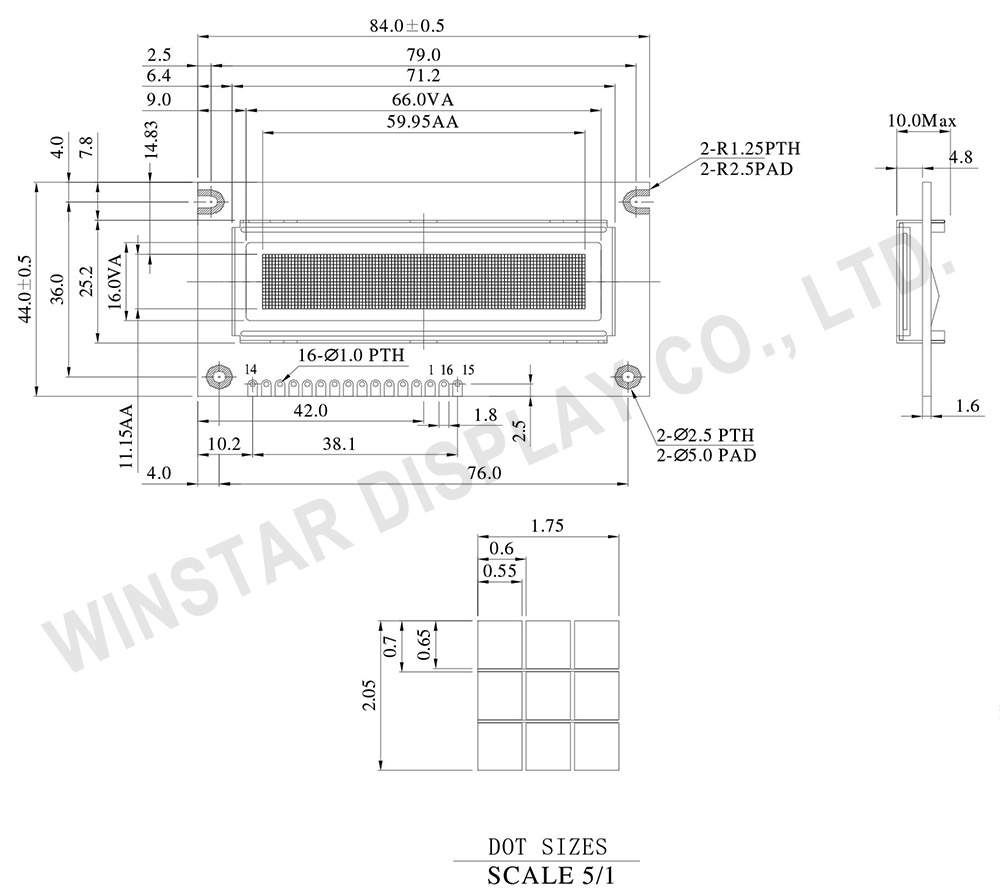

DRAWING

2.4 OLED Display 100x16 - WEG010016E

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 84.0 × 44.0 mm
Viewing area 66.0 × 16.0 mm
Active area 59.95 × 11.15 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.55 × 0.65 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD ---   3.3   V



SKU: WEG10016B#EP3N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€18.10
€13.30
€12.80
€12.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€18.10 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010

Winstar 2.4" OLED Display which is made of 100x16 pixels. This display is built-in WS0010-TX controller is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface.  This 2.4 inch OLED display has different interface available, default 6800 or option 8080. The operating temperature and storage temperature ranges are -40 ℃ ~ 80 ℃.



DRAWING

2.4 OLED Display 100x16 - WEG010016E

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 84.0 × 44.0 mm
Viewing area 66.0 × 16.0 mm
Active area 59.95 × 11.15 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.55 × 0.65 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD ---   3.3   V



Products specifications
Brand Winstar
Size 2.4"
Resolution 100x16
Active Area (mm) 59.95x11.15
Dot Size 0.55x0.65
Polarizer Glare
Color Blue
Power supply 3.3V
Display Interface 6800 (option 8080)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 100x16
Active Area (mm) 59.95x11.15
Dot Size 0.55x0.65
Polarizer Glare
Color Blue
Power supply 3.3V
Display Interface 6800 (option 8080)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
;
