WEH1601B#BP3N00100-FC

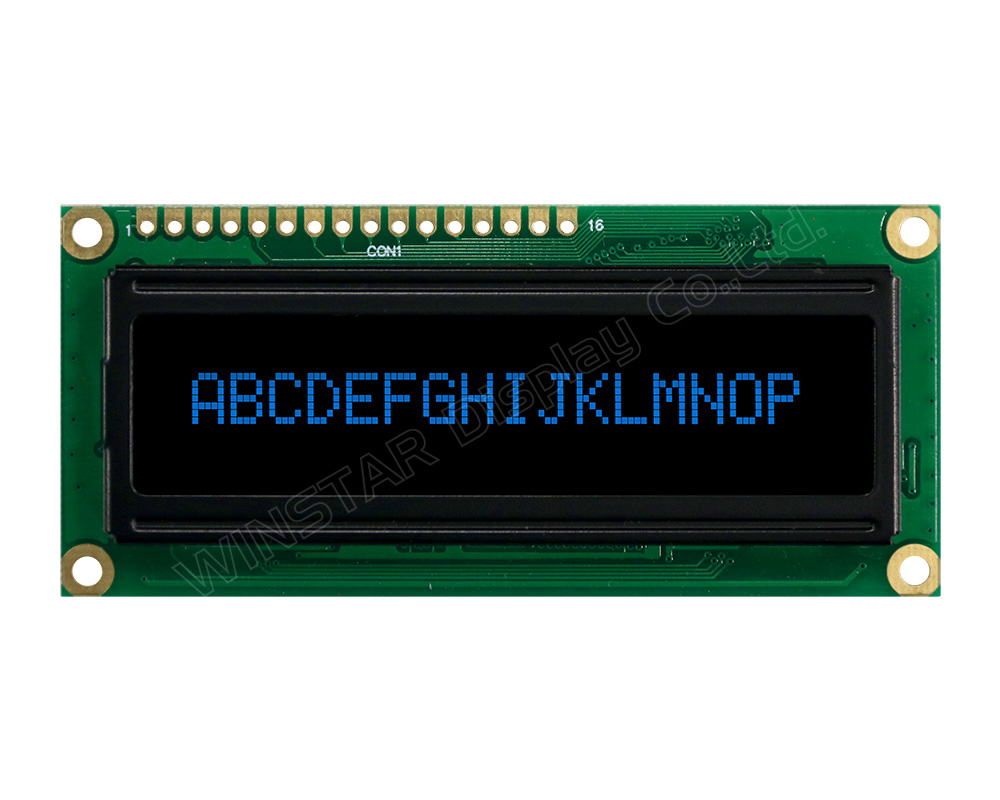

PMOLED 2.25'' 16x1, Blue color, COB, 3.3V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010

16 Character x 1 line COB OLED display module which diagonal panel size is 2.25 inch. It is built in with WS0010-TX IC; its interface is default 6800, available options 8080 and SPI, 1/8 driving duty. All Winstar OLED Character COB modules are built-in with an all-in-one Fonts controller IC WS0010-TX; which offers 4 font sets on one device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.

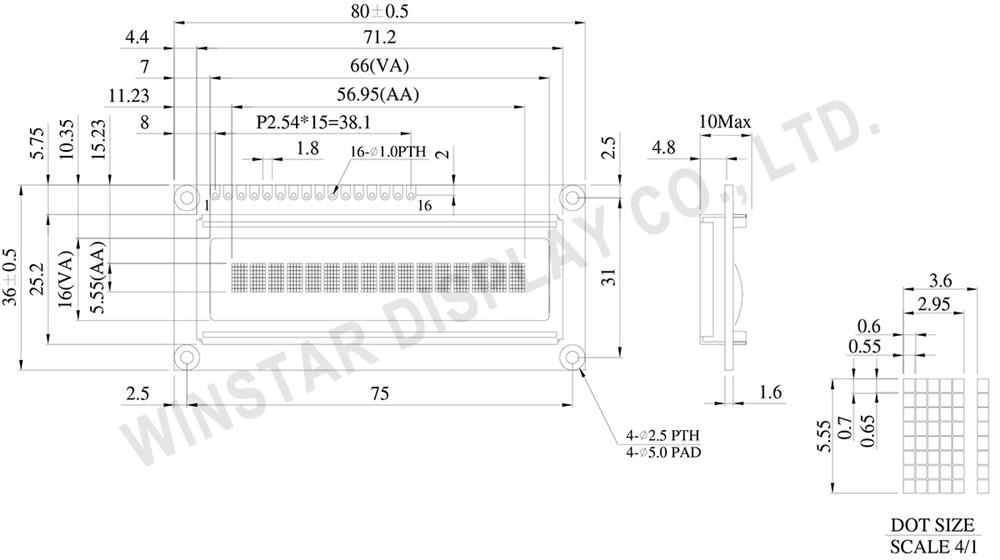

DRAWING

WEH001601A - 16x1 OLED Character Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC
16 NC



Mechanical Data

ItemDimensionUnit
Number of Characters 16 characters x 1 Lines
Module dimension 80.0 x 36.0 x 10.0(MAX) mm
View area 66.0 x 16.0 mm
Active area 56.95 x 5.55 mm
Dot size 0.55 x 0.65 mm
Dot pitch 0.60 x 0.70 mm
Character size 2.95 x 5.55 mm
Character pitch 3.6 x 5.55 mm
Panel type OLED , Monochrome
Duty 1/8 Duty
IC WS0010-TX
Interface 6800, option 8080, SPI
Size 2.25 inch



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS   3.3   V



SKU: WEH1601B#BP3N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€17.60
€12.90
€12.40
€12.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€17.60 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010

16 Character x 1 line COB OLED display module which diagonal panel size is 2.25 inch. It is built in with WS0010-TX IC; its interface is default 6800, available options 8080 and SPI, 1/8 driving duty. All Winstar OLED Character COB modules are built-in with an all-in-one Fonts controller IC WS0010-TX; which offers 4 font sets on one device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.



DRAWING

WEH001601A - 16x1 OLED Character Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC
16 NC



Mechanical Data

ItemDimensionUnit
Number of Characters 16 characters x 1 Lines
Module dimension 80.0 x 36.0 x 10.0(MAX) mm
View area 66.0 x 16.0 mm
Active area 56.95 x 5.55 mm
Dot size 0.55 x 0.65 mm
Dot pitch 0.60 x 0.70 mm
Character size 2.95 x 5.55 mm
Character pitch 3.6 x 5.55 mm
Panel type OLED , Monochrome
Duty 1/8 Duty
IC WS0010-TX
Interface 6800, option 8080, SPI
Size 2.25 inch



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS   3.3   V



Products specifications
Brand Winstar
Size 2.25"
Resolution 16x1
Active Area (mm) 56.95x5.55
Dot Size 0.55x0.65
Polarizer Glare
Color Blue
Power supply 3.3V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
