New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEG10032B#A08-FC

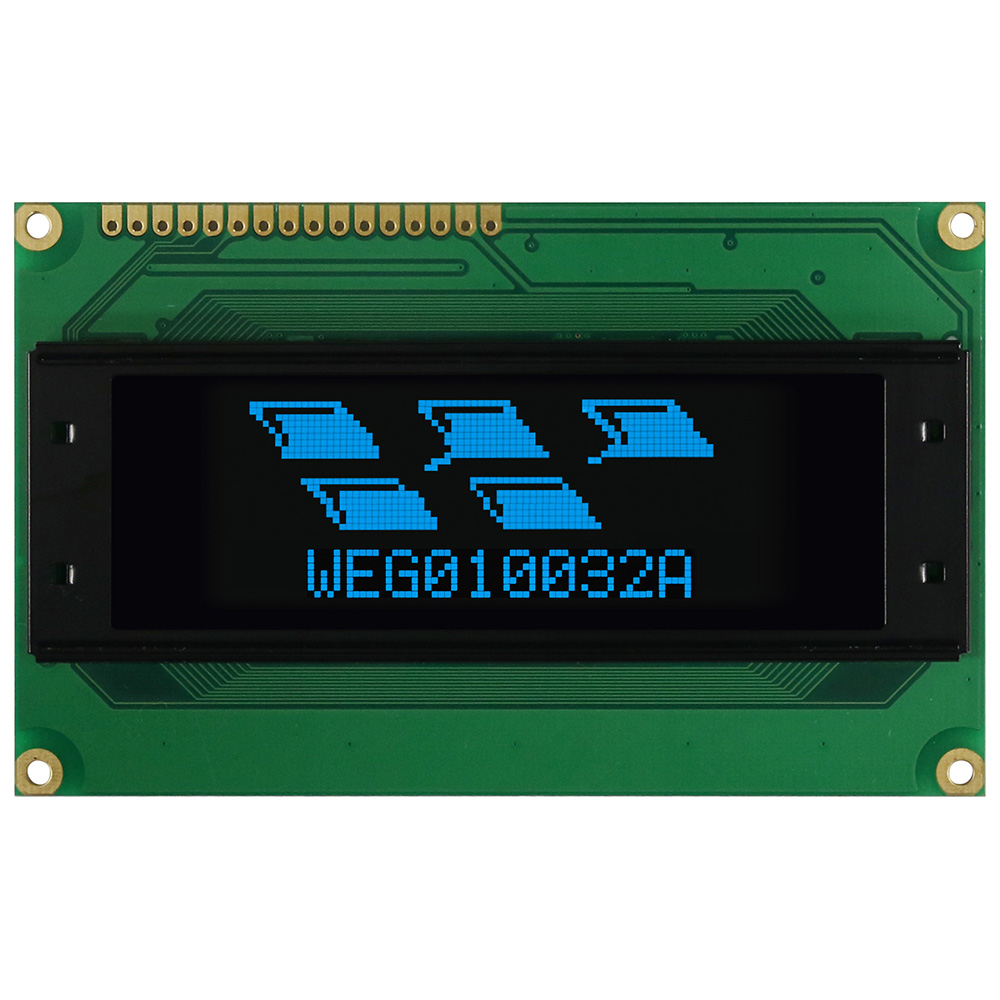

The 2.44" OLED displays has the same outline size of 98.00 x 60.00 mm, VA size of 77.00 x 25.20 mm and pin out as Winstar STN LCD standard item of WH2004A. It the equivalent Graphic type of WEH2004x#A00-fc. If your applications need Graphic mode to display the contents, you can choose this model which featured with display format of 100 x 32 dots. The typical power supply of this series is 5 voltage and the interface is parallel 4 /8 bit 6800 (optional 8080 or serial SPI).
For quantities above 25 pcs pls send your enquiry to firstname.lastname@example.org or call +39 0332 1888005
