Replaced by new drop pin compatible version with new IC WS0010-TX // Direct link in 'Related Product' section on the bottom page.

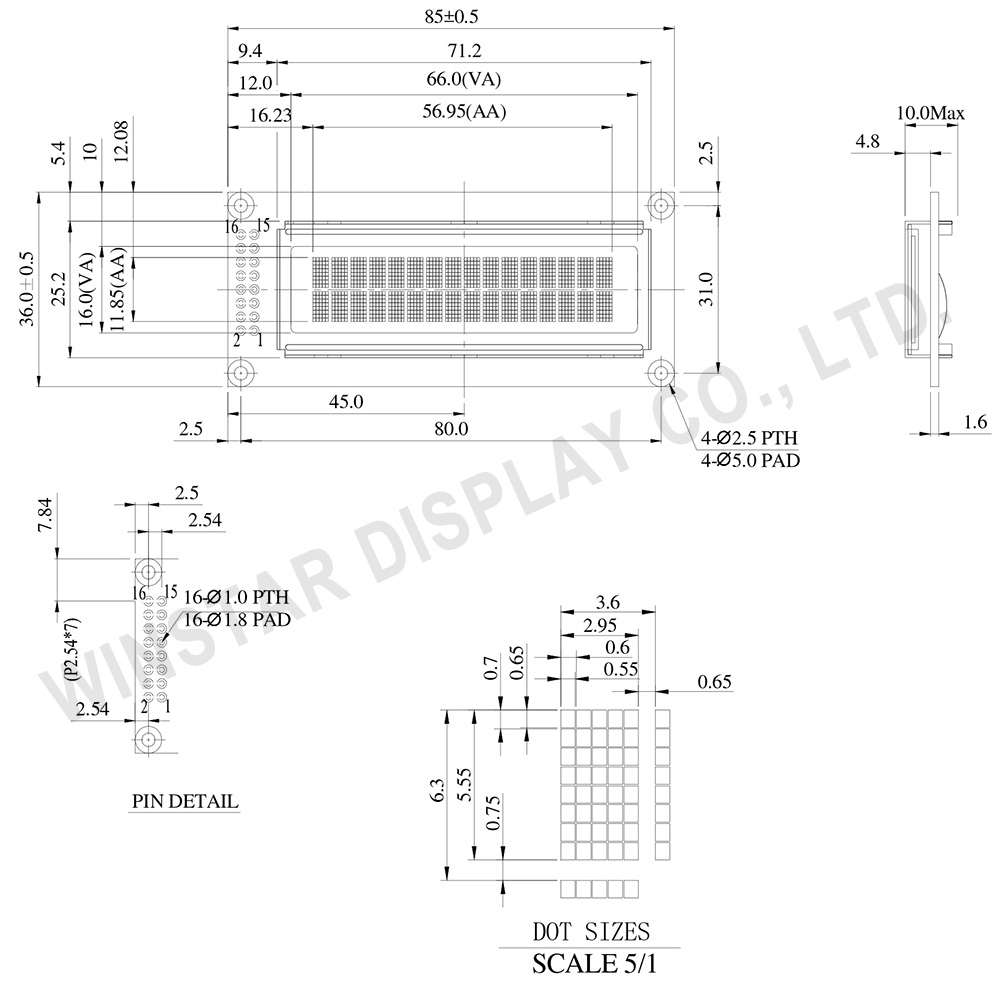

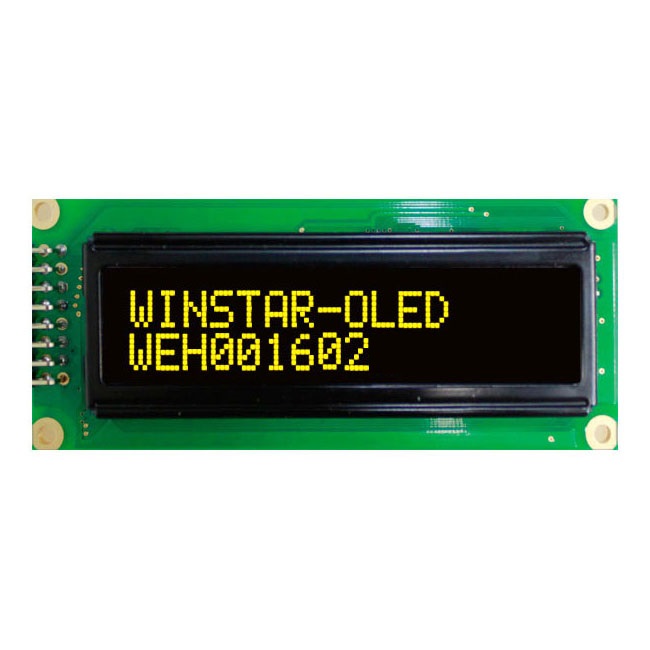

This OLED has the same outline size, VA size and pin out as Winstar LCD item no. WH1602C. This OLED model can be used as compatible replacement for STN LCD WH1602C. We suggest customers to consider using this low power 16x2 character OLED to replace your existing STN character display or new projects. There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard COB OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).
For quantities above 25 pcs pls send your enquiry to email@example.com or call +39 0332 1888005
