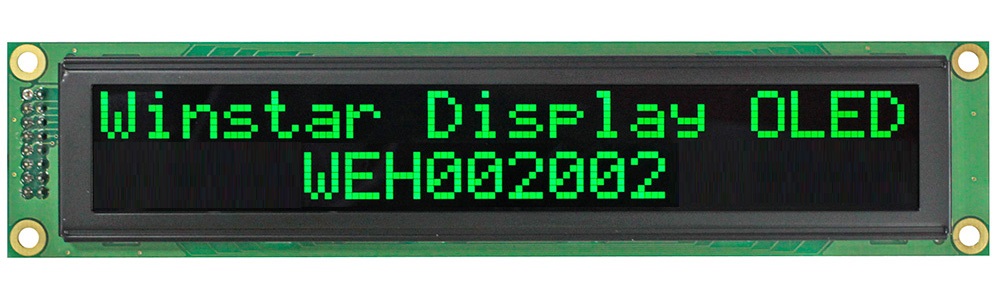

WEH002002BGPP5N00000

PMOLED 5.77'' 20x2, Green color, COB, 5V, Interface 6800, Frame, Glare

NOT RECOMMENDED FOR NEW PROJECTS

Replaced by new drop pin compatible version with new IC WS0010-TX // Direct link in 'Related Product' section on the bottom page.



SKU: WEH2002G#B00-FC
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€40.90
€32.70
€32.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€40.90 excl tax

NOT RECOMMENDED FOR NEW PROJECTS

Replaced by new drop pin compatible version with new IC WS0010-TX // Direct link in 'Related Product' section on the bottom page.



Products specifications
Brand Winstar
Size 5.77"
Resolution 20x2
Active Area (mm) 145.08x20.64
Dot Size 1.12x1.12
Polarizer Glare
Color Green
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC WS0010
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 5.77"
Resolution 20x2
Active Area (mm) 145.08x20.64
Dot Size 1.12x1.12
Polarizer Glare
Color Green
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC WS0010
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
;
