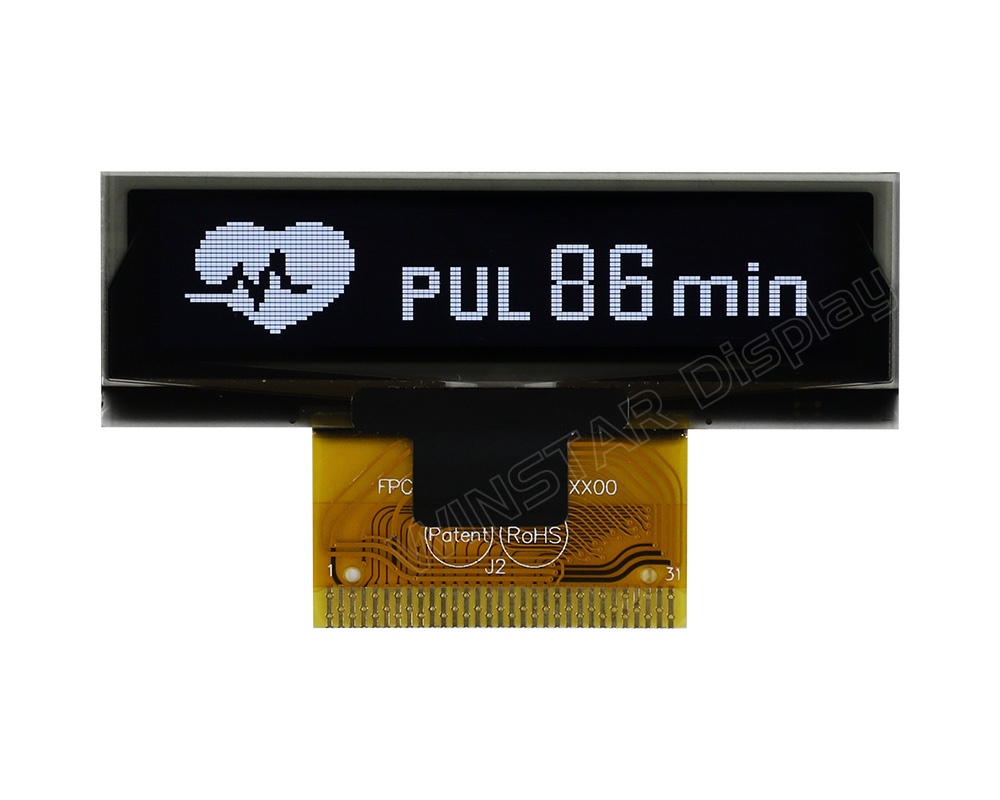

2 inch Graphic OLED display which is featured with COG structure with Hot Bar FPC; made of resolution 128x32 dots. This module is built in with SSD1315 IC, it supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interface, supply voltage for Logic 3V, 1/32 duty cycle.
It is PIN to PIN compatible to TAB OLED WEX012832A which has been EOL since IC phased out. The customers do not need to change the hardware, but have to change the initial code. This module is suitable for industrial device, smart home application, medical instrument, etc. Operating temperatures from -40℃ to 80℃; storage temperatures range from -40℃ to 85℃.
For quantities above 25 pcs pls send your enquiry to email@example.com or call +39 0332 1888005
