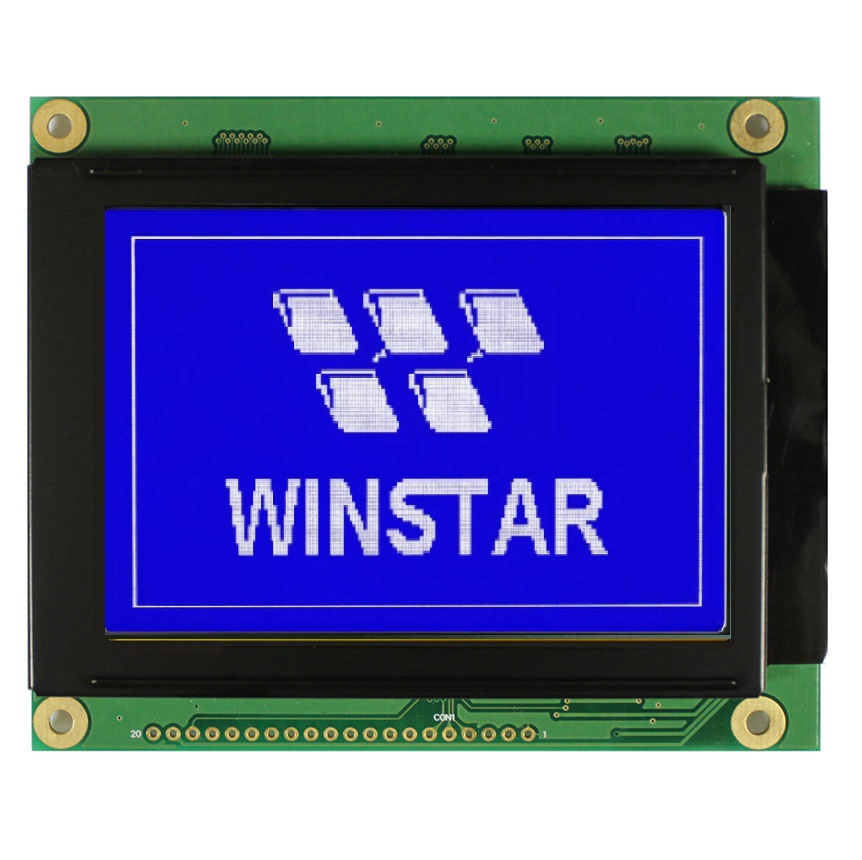

WG192128C-TMI-VZ#

Graphic LCD 5'' 192x128, B/L white, STN blue neg, COB, 5V, Interface 8080, 6 O'clock, VNEG

DESCRIPTION

The Winstar standard model 192x128 LCD Graphical Display WG192128C is built in with RA6963 IC which is a replacement item of WG192128A. The graphical display is with the outline dimension 102.3 x 86.0 mm and AA size of 71.02 x 47.34 mm. This LCD module can be operating at temperatures from -20℃ to +70℃.

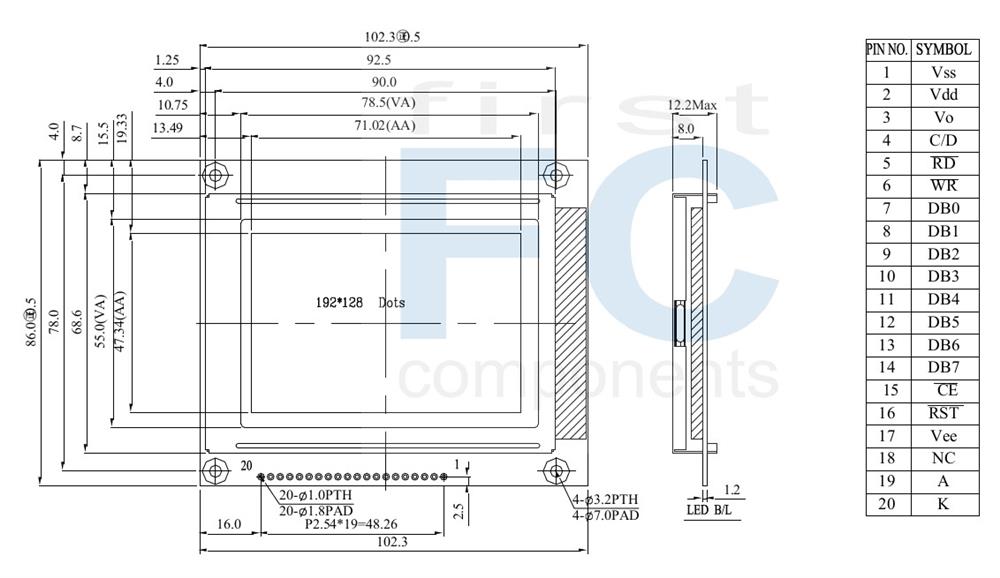

DRAWING

192 x 128 LCD, LCD Graphical Display, Winstar Graphical Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 Vss Ground
2 Vdd Power supply for logic
3 Vo Contrast Adjustment
4 C/D Data/ Instruction select signal
5 /RD Data read. Read data from LCD Controller
6 /WR Data write. Write data into LCD Controller
7~14 DB0~DB7 Data bus line
15 /CE Enable signal
16 /RST Controller reset signal, Active Low
17 Vee Negative Voltage Output
18 NC No connection
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 102.3 × 86.0 mm
Viewing Area 78.5 × 55.0 mm
Mounting Hole 90.0 × 78.0 mm
Dot Pitch 0.37 × 0.37 mm
Dot Size 0.35 × 0.35 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 15.2 V


SKU: WG192128C-TMI-VZ#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€41.60
€34.70
€29.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€41.60 excl tax

DESCRIPTION

The Winstar standard model 192x128 LCD Graphical Display WG192128C is built in with RA6963 IC which is a replacement item of WG192128A. The graphical display is with the outline dimension 102.3 x 86.0 mm and AA size of 71.02 x 47.34 mm. This LCD module can be operating at temperatures from -20℃ to +70℃.



DRAWING

192 x 128 LCD, LCD Graphical Display, Winstar Graphical Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 Vss Ground
2 Vdd Power supply for logic
3 Vo Contrast Adjustment
4 C/D Data/ Instruction select signal
5 /RD Data read. Read data from LCD Controller
6 /WR Data write. Write data into LCD Controller
7~14 DB0~DB7 Data bus line
15 /CE Enable signal
16 /RST Controller reset signal, Active Low
17 Vee Negative Voltage Output
18 NC No connection
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 102.3 × 86.0 mm
Viewing Area 78.5 × 55.0 mm
Mounting Hole 90.0 × 78.0 mm
Dot Pitch 0.37 × 0.37 mm
Dot Size 0.35 × 0.35 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 15.2 V


Products specifications
Brand Winstar
Size 3.36"
Resolution 192x128
Active Area (mm) 71.02x47.34
Dot Size 0.35x0.35
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 8080
Built-in Controller RA6963
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 3.36"
Resolution 192x128
Active Area (mm) 71.02x47.34
Dot Size 0.35x0.35
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 8080
Built-in Controller RA6963
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
