WEO12864L#Y01-FC

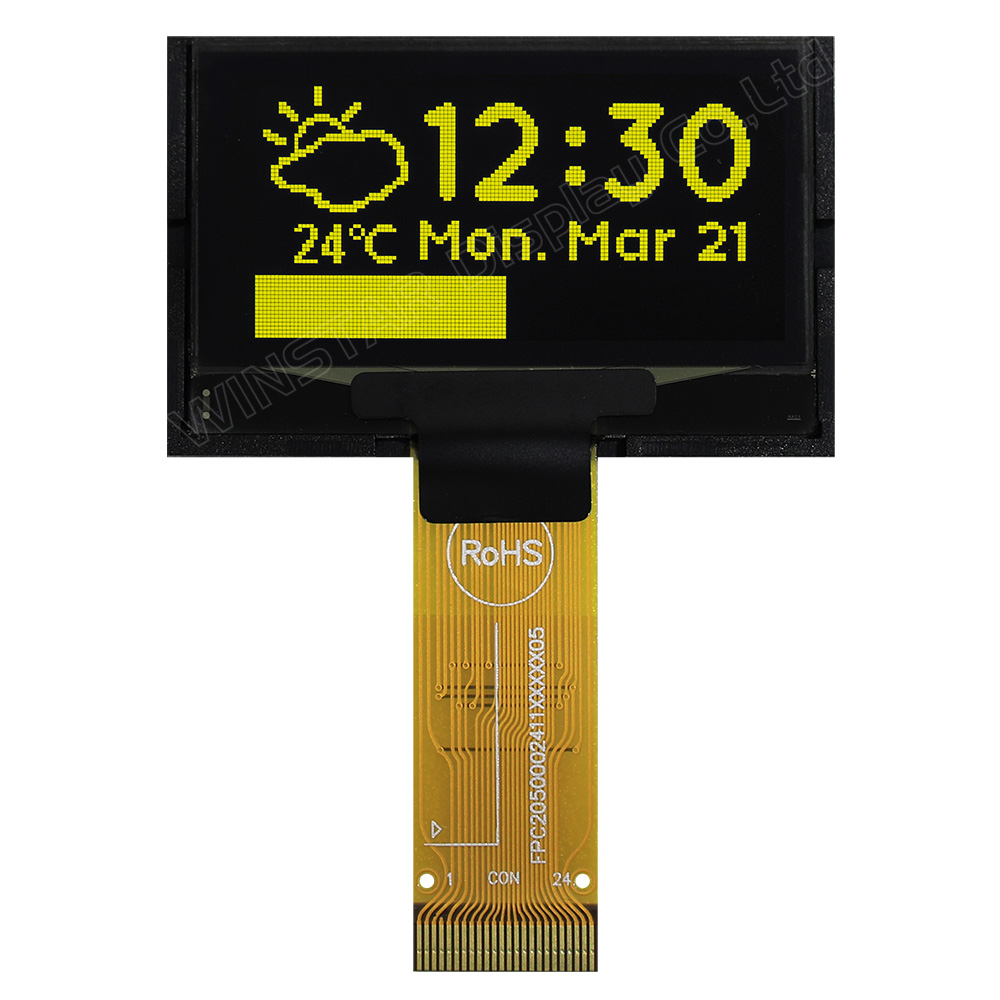

Picture of WEO12864L#Y01-FC Picture of WEO12864L#Y01-FC
PMOLED 1.54" Graphic 128x64, Yellow color, COG, 3V, Interface 6800,8080,SPI,I2C, SSD1309ZC IC, Anti-glare

DESCRIPTION

Small OLED display which is made of 128x64 pixels, diagonal size 1.54 inch. It is built in with SSD1309 driver IC; it supports 6800/8080 8-bit parallel, I2C and 4-wire SPI interface, The supply voltage for logic is 3V, supply voltage for display is 12.5V, 1/64 driver duty, display with 50% check board current is [email protected] (typical value). This OLED module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

It is small COG graphic PMOLED module; ultra thin only 1.21 mm; lightweight and low power consumption. It is suitable for smart home application, portable device, meter device, personal care appliance, handheld instruments, IoT, etc.

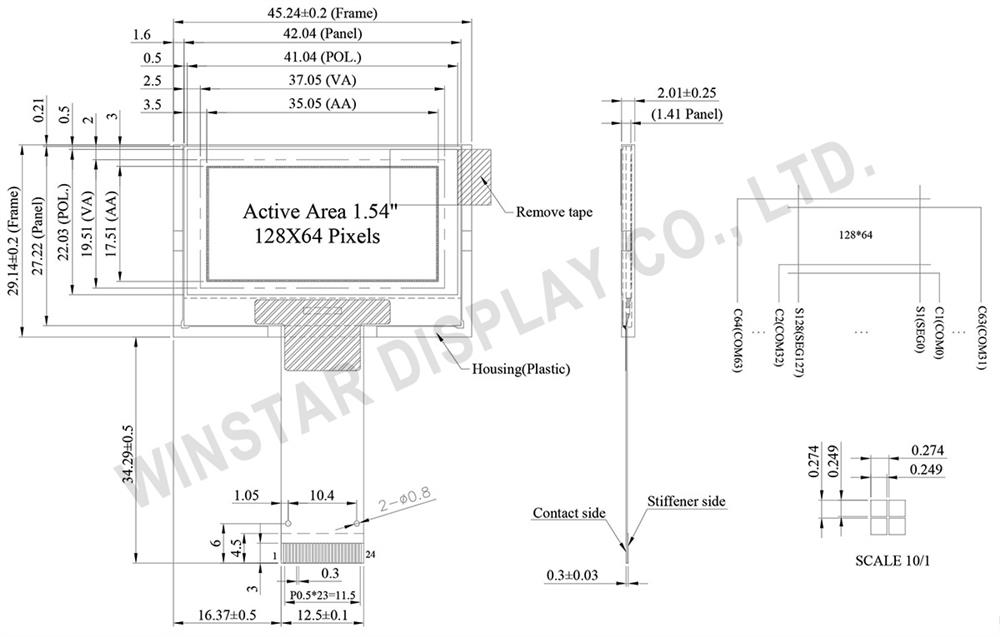

DRAWING

128x64 OLED Graphic Display 1.54 inch - WEO012864Y



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 NC(GND) No connection
2 VLSS This is an analog ground pin
3 VSS Ground.
4 NC No connection
5 VDD Power supply pin for core logic operation
6 BS1 MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2 and BS1 are pin select
 BS1BS2
I2C 1 0
4-wire Serial 0 0
8-bit 68XX Parallel 0 1
8-bit 80XX Parallel 1 1

Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD
7 BS2
8 CS# This pin is the chip select input connecting to the MCU.
The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
9 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
10 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
In I2C mode, this pin acts as SA0 for slave address selection.
When 3-wire serial interface is selected, this pin must be connected to VSS.
11 R/W# This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
12 E/RD# This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
13-20 D0~D7 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout,
SDAin in application and D0 is the serial clock input, SCL.
21 IREF This pin is the segment output current reference pin.
IREF is supplied externally.
22 VCOMH COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
23 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
24 NC(GND) No connection



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 x 64 dots
Module dimension 45.24 x 29.14 x 2.01 mm
Active Area 35.05 x 17.51 mm
Pixel Size 0.249 x 0.249 mm
Pixel Pitch 0.274 x 0.274 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1309
Interface 6800, 8080, 4-wire SPI, I2C
Size 1.54 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 4 V
Supply Voltage for Display VCC 0 15 V
Operating Temperature TOP -40 +70 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD － 2.8 3.0 3.3 V
Supply Voltage for Display VCC － 12.0 12.5 13.0 V
High Level Input VIH － 0.8×VDD － － V
Low Level Input VIL － － － 0.2×VDD V
High Level Output VOH － 0.9×VDD － － V
Low Level Output VOL － － － 0.1×VDD V
50% Check Board operating Current VCC =12.5V － 16.0 24.0 mA


SKU: WEO12864L#Y01-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€12.90
€9.50
€9.20
€8.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€12.90 excl tax

DESCRIPTION

Small OLED display which is made of 128x64 pixels, diagonal size 1.54 inch. It is built in with SSD1309 driver IC; it supports 6800/8080 8-bit parallel, I2C and 4-wire SPI interface, The supply voltage for logic is 3V, supply voltage for display is 12.5V, 1/64 driver duty, display with 50% check board current is [email protected] (typical value). This OLED module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

It is small COG graphic PMOLED module; ultra thin only 1.21 mm; lightweight and low power consumption. It is suitable for smart home application, portable device, meter device, personal care appliance, handheld instruments, IoT, etc.



DRAWING

128x64 OLED Graphic Display 1.54 inch - WEO012864Y



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 NC(GND) No connection
2 VLSS This is an analog ground pin
3 VSS Ground.
4 NC No connection
5 VDD Power supply pin for core logic operation
6 BS1 MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2 and BS1 are pin select
 BS1BS2
I2C 1 0
4-wire Serial 0 0
8-bit 68XX Parallel 0 1
8-bit 80XX Parallel 1 1

Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD
7 BS2
8 CS# This pin is the chip select input connecting to the MCU.
The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
9 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
10 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
In I2C mode, this pin acts as SA0 for slave address selection.
When 3-wire serial interface is selected, this pin must be connected to VSS.
11 R/W# This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
12 E/RD# This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
13-20 D0~D7 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout,
SDAin in application and D0 is the serial clock input, SCL.
21 IREF This pin is the segment output current reference pin.
IREF is supplied externally.
22 VCOMH COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
23 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
24 NC(GND) No connection



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 x 64 dots
Module dimension 45.24 x 29.14 x 2.01 mm
Active Area 35.05 x 17.51 mm
Pixel Size 0.249 x 0.249 mm
Pixel Pitch 0.274 x 0.274 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1309
Interface 6800, 8080, 4-wire SPI, I2C
Size 1.54 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 4 V
Supply Voltage for Display VCC 0 15 V
Operating Temperature TOP -40 +70 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD － 2.8 3.0 3.3 V
Supply Voltage for Display VCC － 12.0 12.5 13.0 V
High Level Input VIH － 0.8×VDD － － V
Low Level Input VIL － － － 0.2×VDD V
High Level Output VOH － 0.9×VDD － － V
Low Level Output VOL － － － 0.1×VDD V
50% Check Board operating Current VCC =12.5V － 16.0 24.0 mA


Products specifications
Brand Winstar
Size 1.54"
Resolution 128x64
Active Area (mm) 35.05x17.51
Dot Size 0.24x0.24
Polarizer Anti-glare
Color Yellow
Power supply 3V
Display Interface 6800/8080/SPI/I2C
Display IC SSD1309ZC
Constructive Structure COG
Frame No
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FPC for ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 1.54"
Resolution 128x64
Active Area (mm) 35.05x17.51
Dot Size 0.24x0.24
Polarizer Anti-glare
Color Yellow
Power supply 3V
Display Interface 6800/8080/SPI/I2C
Display IC SSD1309ZC
Constructive Structure COG
Frame No
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FPC for ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
