WEO12864W#ALP3N00F00-FC

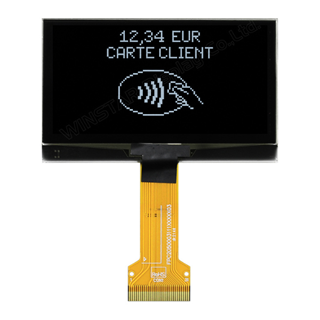

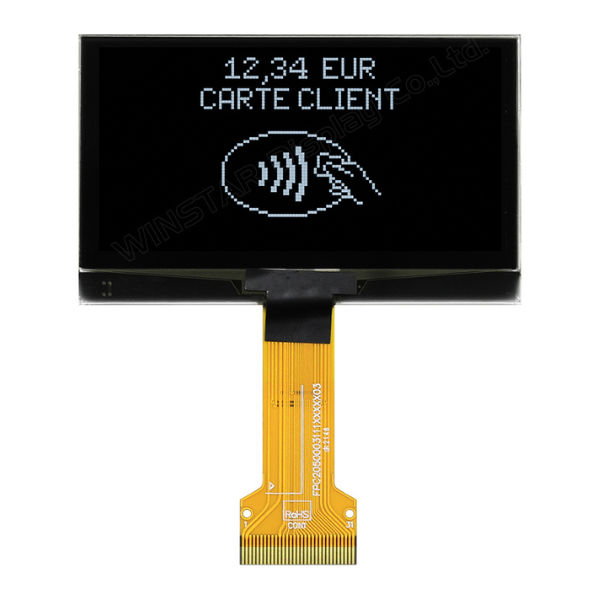

Picture of WEO12864W#ALP3N00F00-FC

PMOLED 2.42" Graphic 128x64, White color, COG, 3V, Interface 6800,8080,SPI,I2C, SH1116 IC, Glare (24 pin)

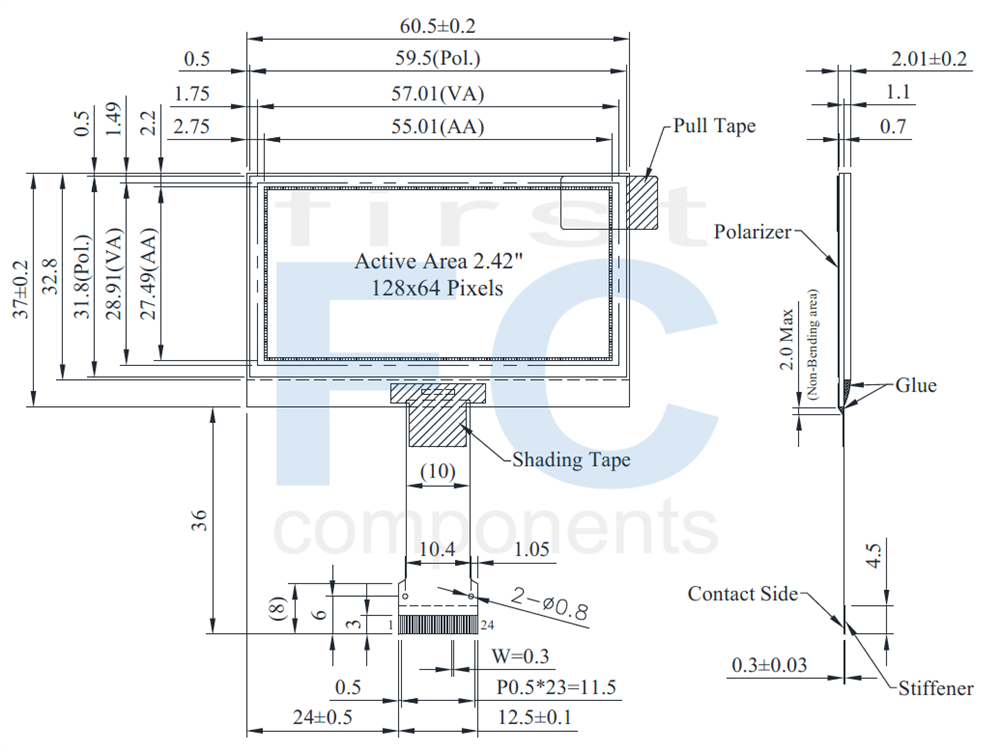

DRAWING

128x64 Graphic 2.42-inch COG OLED Display Module - WEO012864AL

SKU: WEO12864W#ALP3N00F00-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

1+

5+

10+

25+

Price

€19.80

€14.50

€14.00

€13.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€19.80 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

128x64 Graphic 2.42-inch COG OLED Display Module - WEO012864AL

Products specifications

Brand	Winstar
Size	2.42"
Resolution	128x64
Active Area (mm)	55.01x27.49
Dot Size	0.40x0.40
Polarizer	Glare
Color	White
Power supply	3V
Display Interface	6800/8080/SPI/I2C
Display IC	SH1116
Constructive Structure	COG
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	FPC for ZIF Connector
Pin Nr.	24
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred

Download

Log in or Register to downloads PDF.

Your name

Your email

Enquiry

Products specifications

Brand	Winstar
Size	2.42"
Resolution	128x64
Active Area (mm)	55.01x27.49
Dot Size	0.40x0.40
Polarizer	Glare
Color	White
Power supply	3V
Display Interface	6800/8080/SPI/I2C
Display IC	SH1116
Constructive Structure	COG
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	FPC for ZIF Connector
Pin Nr.	24
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
