WEP12864L#ALP5N00E00-FC

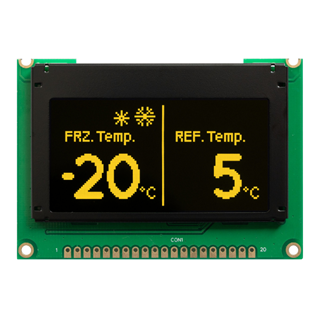

Picture of WEP12864L#ALP5N00E00-FC

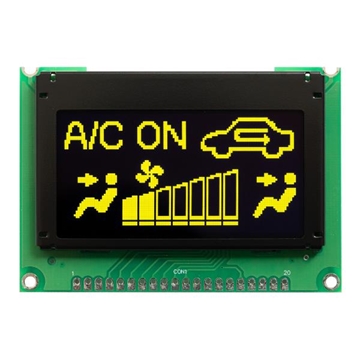

Picture of WEP12864L#ALP5N00E00-FC

Picture of WEP12864L#ALP5N00E00-FC

PMOLED 2.42" Graphic 128x64, Yellow color, COG + PCB, 5V, Interface RS232, Frame, Glare (IC SH1106)

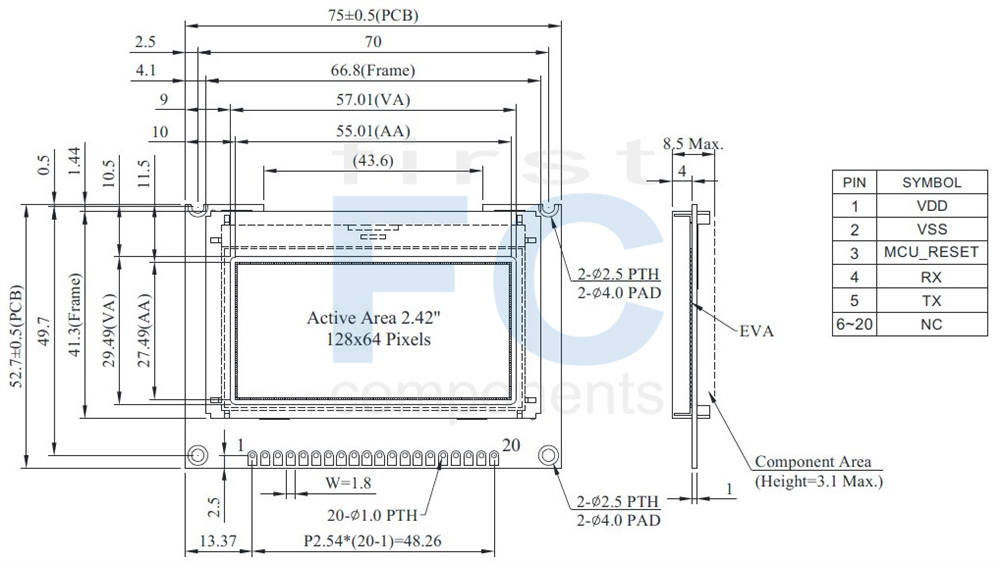

DRAWING

WEP012832A

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	VDD	Power supply input
2	VSS	Ground.
3	MCU_RESET	MCU hardware reset input. 3.3V~5V This pin is not used and should be open.
4	RX	RS-232 Receive
5	TX	RS-232 Transmit
6~20	NC	No connection.

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 x 64	—
Module dimension	75.0 × 52.7 × 8.5(Max).	mm
Active Area	55.01 × 27.49	mm
Pixel Size	0.40 × 0.40	mm
Pixel Pitch	0.43 × 0.43	mm
Display Mode	Passive Matrix
Display Color	Yellow
Drive Duty	1/64 Duty
IC	SH1106
Interface	RS232 (Baud rate:115200)
Size	2.42 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit	Notes
Supply Voltage for Logic	VDD	-0.3	6	V	1, 2
Operating Temperature	TOP	-40	+80	°C	-
Storage Temperature	TSTG	-40	+85	°C	-

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	—	4.8	5.0	6.0	V
Display 50% Pixel on	IDD	VDD =5V	—	60	120	mA

SKU: WEP12864L#ALP5N00E00-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

1+

5+

10+

Price

€28.40

€22.70

€21.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€28.40 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

WEP012832A

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	VDD	Power supply input
2	VSS	Ground.
3	MCU_RESET	MCU hardware reset input. 3.3V~5V This pin is not used and should be open.
4	RX	RS-232 Receive
5	TX	RS-232 Transmit
6~20	NC	No connection.

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 x 64	—
Module dimension	75.0 × 52.7 × 8.5(Max).	mm
Active Area	55.01 × 27.49	mm
Pixel Size	0.40 × 0.40	mm
Pixel Pitch	0.43 × 0.43	mm
Display Mode	Passive Matrix
Display Color	Yellow
Drive Duty	1/64 Duty
IC	SH1106
Interface	RS232 (Baud rate:115200)
Size	2.42 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit	Notes
Supply Voltage for Logic	VDD	-0.3	6	V	1, 2
Operating Temperature	TOP	-40	+80	°C	-
Storage Temperature	TSTG	-40	+85	°C	-

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	—	4.8	5.0	6.0	V
Display 50% Pixel on	IDD	VDD =5V	—	60	120	mA

Products specifications

Brand	Winstar
Size	2.42"
Resolution	128x64
Active Area (mm)	55.01x27.49
Dot Size	0.40x0.40
Polarizer	Glare
Color	Yellow
Power supply	5V
Display Interface	RS232
Display IC	SH1106
Constructive Structure	COG + PCB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Soldering PAD
Pin Nr.	20
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
