WF39-480128BD#0SFW0-FC

Picture of WF39-480128BD#0SFW0-FC Picture of WF39-480128BD#0SFW0-FC
TFT 3.9'' 480x128, Bar Type, Interface RGB, High Brightness 800cd/m², Wide View Angle (O-Film), Super extended Temperature, Anti-Glare, No touch

DESCRIPTION

3.9 inch Bar Type TFT LCD with 480x128 pixels, featured with high brightness and wider operation temperature.

This module has high brightness 800 cd/m2. Operating temperature from -30℃ to +80℃; its storage temperature from -40℃ to +90℃. This TFT module is built in with Driver IC HX8278; it supports RGB interface; 3.3V (typical) power supply; supports Sync mode and DE modem, default Sync mode.

This Bar TFT is very suitable for server system, audio system and advertising display, automotive, aviation, marine systems, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.

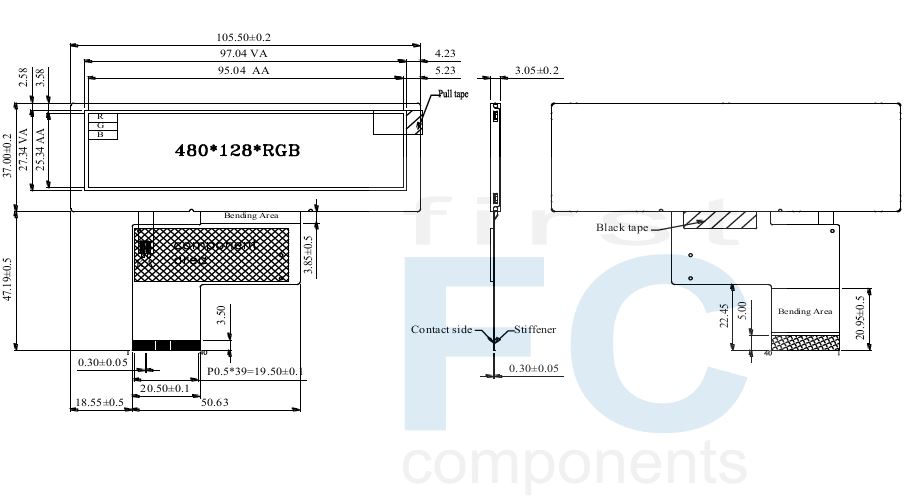

DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

No.SymbolDescription
1 VLED- Backlight LED Cathode
2 VLED+ Backlight LED Anode.
3 GND System Ground
4 VCC Power supply for logic operation
5~12 R0~R7 Data bus
13~20 G0~G7 Data bus
21~28 B0~B7 Data bus
29 GND System Ground
30 DCLK Pixel clock signal
31 DISP Display on/off control
32 HSYNC Horizontal Sync signal
33 VSYNC Vrtical Sync signal
34 NC No connection (Option DE)
35 NC No connection
36 GND System Ground
37 NC No connection (Option XR for RTP)
38 NC No connection (Option YD for RTP)
39 NC No connection (Option XL for RTP)
40 NC No connection (Option YU for RTP)



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 ×128 × RGB (TFT) dots
Module dimension 105.5(W) × 37.0(H) × 3.05(D) mm
Active area 95.04 × 25.34 mm
Dot pitch 0.066(W) × 0.198(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Bar Type
TFT Driver IC HX8278-A or Equal
TFT Interface RGB-24BIT (SYNC mode)
Backlight Type LED, Normally White
Touch Screen Without touch screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -40 － +90 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC - 3.0 3.3 3.6 V
Supply Current For LCM ICC - - 15 25 mA
SKU: WF39-480128BD#0SFW0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€44.60
€37.10
€37.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€44.60 excl tax

DESCRIPTION

3.9 inch Bar Type TFT LCD with 480x128 pixels, featured with high brightness and wider operation temperature.

This module has high brightness 800 cd/m2. Operating temperature from -30℃ to +80℃; its storage temperature from -40℃ to +90℃. This TFT module is built in with Driver IC HX8278; it supports RGB interface; 3.3V (typical) power supply; supports Sync mode and DE modem, default Sync mode.

This Bar TFT is very suitable for server system, audio system and advertising display, automotive, aviation, marine systems, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.



DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

No.SymbolDescription
1 VLED- Backlight LED Cathode
2 VLED+ Backlight LED Anode.
3 GND System Ground
4 VCC Power supply for logic operation
5~12 R0~R7 Data bus
13~20 G0~G7 Data bus
21~28 B0~B7 Data bus
29 GND System Ground
30 DCLK Pixel clock signal
31 DISP Display on/off control
32 HSYNC Horizontal Sync signal
33 VSYNC Vrtical Sync signal
34 NC No connection (Option DE)
35 NC No connection
36 GND System Ground
37 NC No connection (Option XR for RTP)
38 NC No connection (Option YD for RTP)
39 NC No connection (Option XL for RTP)
40 NC No connection (Option YU for RTP)



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 ×128 × RGB (TFT) dots
Module dimension 105.5(W) × 37.0(H) × 3.05(D) mm
Active area 95.04 × 25.34 mm
Dot pitch 0.066(W) × 0.198(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Bar Type
TFT Driver IC HX8278-A or Equal
TFT Interface RGB-24BIT (SYNC mode)
Backlight Type LED, Normally White
Touch Screen Without touch screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -40 － +90 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC - 3.0 3.3 3.6 V
Supply Current For LCM ICC - - 15 25 mA
Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Display Interface RGB
Display IC No
View Angle O-Film
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Display Interface RGB
Display IC No
View Angle O-Film
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
