WEP12864L#UP3D00000-FC

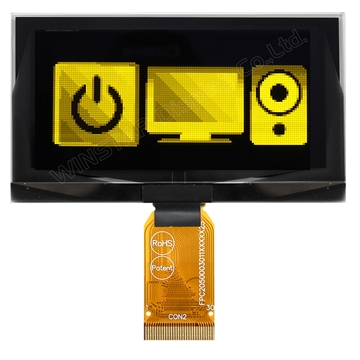

Picture of WEP12864L#UP3D00000-FC Picture of WEP12864L#UP3D00000-FC
PMOLED 2.7" Graphic 128x64, Yellow color, COG + PCB + Frame, 3V, Interface 6800,8080,SPI,I2C, Glare, Gray scale function, Capacitive touch panel I2C (IC GT911)

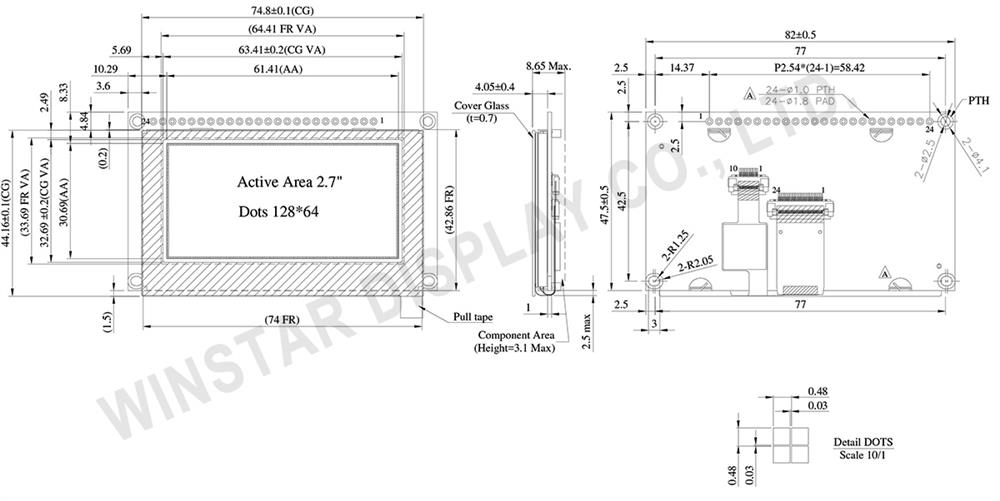

DRAWING



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 VSS This is a ground pin.
2 VDD Power supply pin for core logic operation
3 NC Reserved Pin
The N.C. pin between function pins is reserved for compatible and flexible design.
4 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
In I2C mode, this pin acts as SA0 for slave address selection.
When 3-wire serial interface is selected, this pin must be connected to VSS.
5 R/W#
(WR#)		 This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
6 E/RD# This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
7 DB0 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 NC No connection
16 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
17 CS# Chip Select
This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.
18 NC No connection
19 BS2 Communicating Protocol Select.
These pins are MCU interface selection input. See the following table:
  BS1 BS2
I2C 1 0
4-wire Serial 0 0
8-bit 8080 Parallel 1 1
8-bit 6800 Parallel 0 1
20 BS1
21 TP_SCK I2C clock signal
22 TP_SDA I2C data signal
23 TP_INT Interrupt signal, active low, asserted to request
Host start a new transaction
24 TP_RST External reset signal, active low



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 x 64 －
Module dimension 82.0 × 47.5 × 8.65 Max. mm
Active Area 61.41 × 30.69 mm
Pixel Size 0.45 × 0.45 mm
Pixel Pitch 0.48 × 0.48 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
Gray Scale 4 bits
IC SSD1357
Interface 8-bits 6800 and 8080 parallel, 4-line SPI, I2C
Size 2.7 inch

CTP IC GT911
Detect Point 1
CTP Interface I2C
Surface Normal Glare



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 4.0 V
Operating Temperature TOP -20 +70 °C
Storage Temperature TSTG -30 +80 °C




Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD － 2.8 3.0 3.3 V
High Level Input VIH － 0.8×VDD － － V
Low Level Input VIL － － － 0.2×VDD V
High Level Output VOH － 0.9×VDD － － V
Low Level Output VOL － － － 0.1×VDD V
50% Check Board operating Current IDD VDD =3V － 160 240 mA


SKU: WEP12864L#UP3D00000-FC
Brand: Winstar
Available: No
