WF101-19201200NL#0SP3-FC

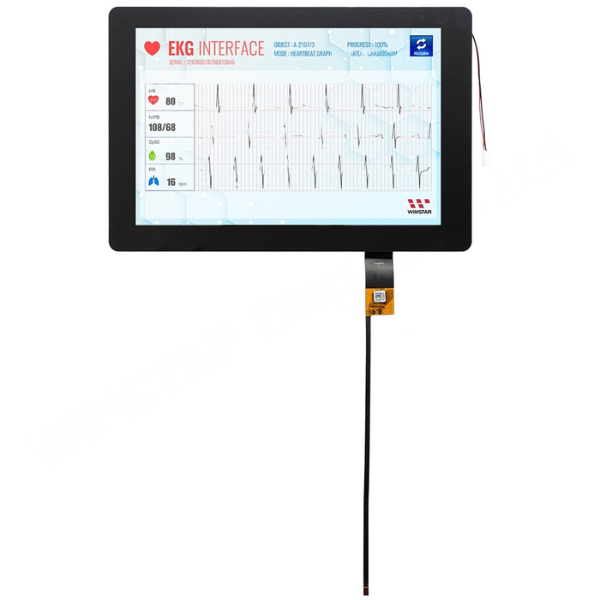

TFT 10.1" 1920x1200 LCD Panel, Interface LVDS, High Brightness 900cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, GT928 IC)

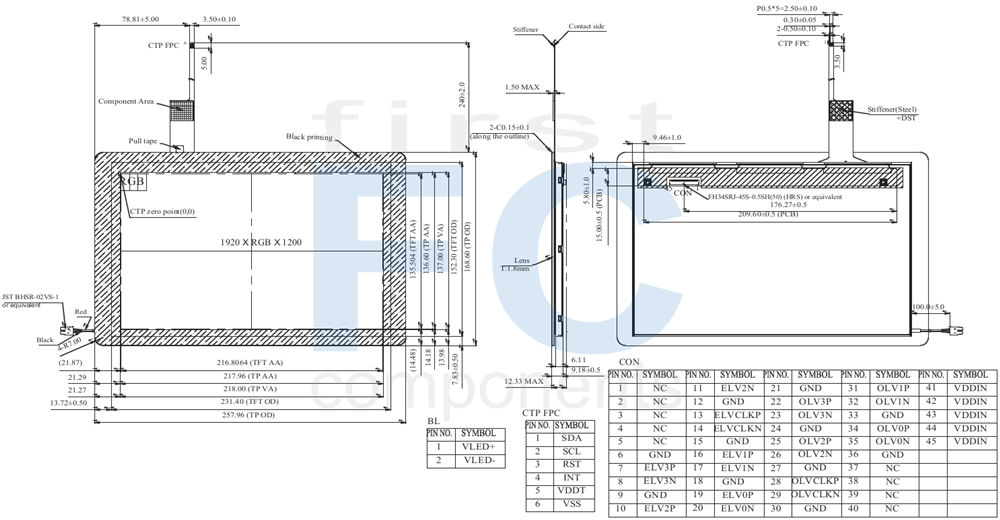

DRAWING

SPECIFICATIONS

Interface

TFT LCD MODULE

Pin No.	Symbol	Description
1-5	NC	No connection
6	GND	Ground
7	ELV3P	EVEN LVDS Positive data signal (+)
8	ELV3N	EVEN LVDS Negative data signal (-)
9	GND	Ground
10	ELV2P	EVEN LVDS Positive data signal (+)
11	ELV2N	EVEN LVDS Negative data signal (-)
12	GND	Ground
13	ELVCLKP	EVEN LVDS Positive CLK signal (+)
14	ELVCLKN	EVEN LVDS Negative CLK signal (-)
15	GND	Ground
16	ELV1P	EVEN LVDS Positive data signal (+)
17	ELV1N	EVEN LVDS Negative data signal (-)
18	GND	Ground
19	ELV0P	EVEN LVDS Positive data signal (+)
20	ELV0N	EVEN LVDS Negative data signal (-)
21	GND	Ground
22	OLV3P	Odd LVDS Positive data signal (+)
23	OLV3N	Odd LVDS Negative data signal (-)
24	GND	Ground
25	OLV2P	Odd LVDS Positive data signal (+)
26	OLV2N	Odd LVDS Negative data signal (-)
27	GND	Ground
28	OLVCLKP	Odd LVDS Positive CLK signal (+)
29	OLVCLKN	Odd LVDS Negative CLK signal (-)
30	GND	Ground
31	OLV1P	Odd LVDS Positive data signal (+)
32	OLV1N	Odd LVDS Negative data signal (-)
33	GND	Ground
34	OLV0P	Odd LVDS Positive data signal (+)
35	OLV0N	Odd LVDS Negative data signal (-)
36	GND	Ground
37-39	NC	No connection (PIN39 and PIN40 cannot be short-circuited together)
40	NC	No connection alone
41-45	VDDIN	Power supply VDDIN=3.3V (Typ.)

Backlight PIN Definition

Pin	Symbol	Description
1	VLED+	Red, LED_ Anode
2	VLED-	Black, LED_Cathode

CTP PIN Definition

Pin	Symbol	Function
1	SDA	I2C data input and output
2	SCL	I2C clock input
3	RST	External Reset, Low is active
4	INT	External interrupt to the host
5	VDDT	Power Supply : +3.3V
6	VSS	Ground for analog circuit

General Specifications

Item	Dimension	Unit
Size	10.1	inch
Dot Matrix	1920(H) X RGB X 1200(V)	dots
Module dimension	257.96 x 168.6 x 12.33 Max	mm
Active area	216.8064(H) x 135.504(V)	mm
Pixel pitch	0.11292(H) x 0.11292(V)	mm
LCD type	TFT, Normally Black, Transmissive
Interface	2ch-LVDS
Driver IC	FL5893DA or Equivalent
Viewing Angle	80/80/80/80
Aspect Ratio	16:10
CTP IC	GT928 or Equivalent
CTP Interface	I2C
CTP FW Version	81
CTP Resolution	1920*1200
Backlight Type	LED, Normally White
With/Without TP	With CTP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Power Supply Voltage	VDDIN	3.0	3.3	3.6	V
Power Supply Voltage	VRP	-	-	300	mV
Power Supply Current	IDD	-	300	360	mA
Power Consumption	PLCD	-	1	1.2	W
Rush current	IRUSH	-	-	3.0	A
Supply PCAP	VDDT	3.1	3.3	3.5	V
Supply PCAP	IVDDT	-	73	110	mA

SKU: WF101-19201200NL#0SP3-FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

Price

€156.90

€149.20

€123.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€156.90 excl tax
