WF0675-4801280AM#0P3-FC

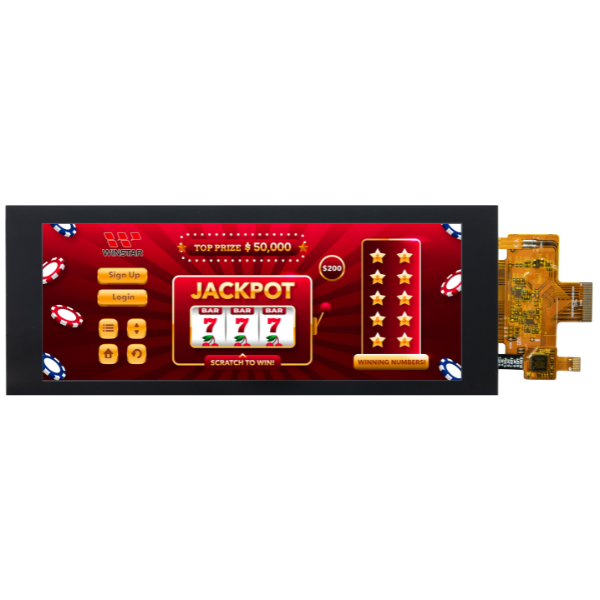

Picture of WF0675-4801280AM#0P3-FC Picture of WF0675-4801280AM#0P3-FC
TFT 6.75" 480x1280, Bar Type, Interface MIPI (4-lanes) IC FL7703NI-G5-DP, 400cd/m², Wide view angle (IPS), Capacitive touch panel I2C interface (GG, GT911)

Description

WF0675-4801280AM#0P3-FC is a 6.75 inch TFT-LCD display module, adopting TFT IPS technology, providing remarkable sharpness, superior color reproduction, better image consistency, and high contrast ratio of 1500:1 (typical value), with a wide viewing angle (left: 85 / right: 85 / top: 85 / bottom: 85 degrees), brightness of 400 nits (typical value), and resolution of 480×1280.

WF0675-4801280AM#0P3-FC supports MIPI interface, capable of high-speed data transmission and high-speed timing transmission, with a built-in FL7703NI-G5-DP driver IC. This TFT is equipped with a CTP touch panel (detect 5 points), with a built-in GT911 driver IC for the touch panel, supporting I2C interface. The operating temperature range is -20°C to +70°C; the storage temperature range is -30°C to +80°C. The operating voltage range is 3.0V to 3.6V, with a typical value of 3.3V.

This IPS TFT-LCD can be applied in the gaming industry, such as gaming machine top decorations, small electronic tabletop games, and machine control buttons.

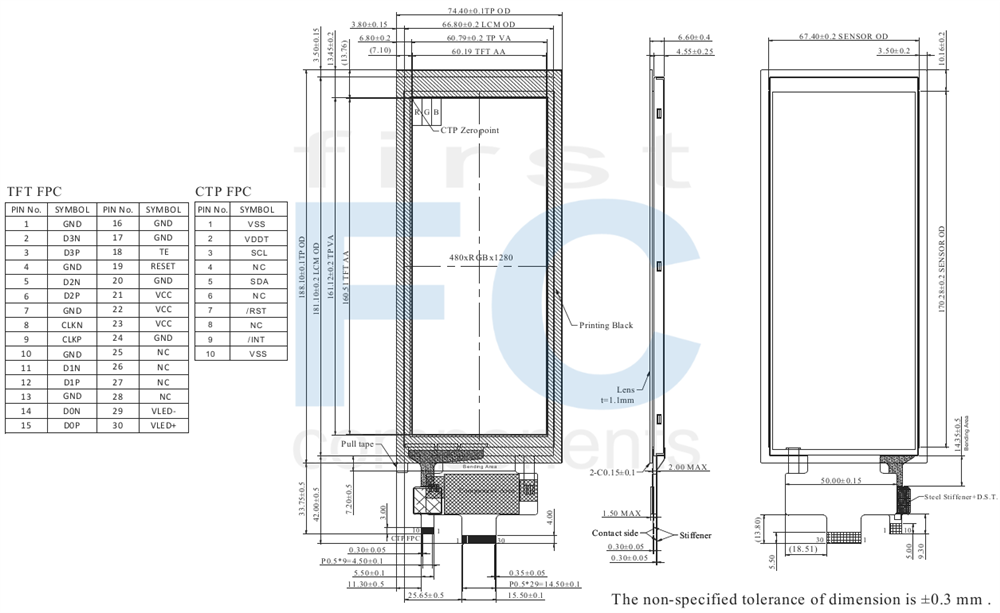

DRAWING



Specification

Interface Pin Function

LCM PIN Definition

Pin No.SymbolPin Description
1 GND Ground
2 D3N High speed interface data differential signal input pins.
3 D3P
4 GND Ground
5 D2N High speed interface data differential signal input pins.
6 D2P
7 GND Ground
8 CLKN High speed interface clock differential signal input pins. OPEN
9 CLKP
10 GND Ground
11 D1N High speed interface data differential signal input pins.
12 D1P
13 GND Ground
14 D0N High speed interface data differential signal input/output pins.
15 D0P
16 GND Ground
17 GND Ground
18 TE Serve as a TE (Tearing Effect) output signal
Leave the pin open when not in use.
19 RESET Reset pin. This signal will reset the device and must be applied to properly initialize the chip.
20 GND Ground
21-23 VCC Power supply
24 GND Ground
25-28 NC No connection
29 VLED- Power for LED backlight cathode
30 VLED+ Power for LED backlight anode



CTP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connection
5 SDA I2C data input and output
6 NC No connection
7 /RST External Reset, Low is active
8 NC No connection
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 6.75 inch
Dot Matrix 480 x 3(RGB) x 1280 dots
Module dimension 74.4 x 1881.1 x 6.6 mm
Active area 60.19 x 160.512 mm
Pixel pitch 0.1254 x 0.1254 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 85/85/85/85
Driver IC FL7703NI-G5-DP or Equivalent
Interface MIPI
CTP Driver IC GT911 or Equivalent
CTP Interface I2C
CTP FW Version HSD_0686097_GT911_1060_V70_480x1280_20230916
CTP Resolution 480*1280
Backlight Type LED,Normally White
With /Without TP With CTP
Surface Glare

*Color tone slight changed by temperature and driving voltage.



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For Logic VCC 3.0 3.3 3.6 V
Supply LCM current Icc － 80 120 mA
Supply CTP VCTP 2.8 3.3 3.6 mA
ICTP － 13.0 20.0 mA



LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 120 － mA
LED voltage VLED+ 15.6 18.0 20.4 V
LED Life Time － － 50,000 － Hr



SKU: WF0675-4801280AM#0P3-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€47.70
€39.70
€34.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€47.70 excl tax

Description

WF0675-4801280AM#0P3-FC is a 6.75 inch TFT-LCD display module, adopting TFT IPS technology, providing remarkable sharpness, superior color reproduction, better image consistency, and high contrast ratio of 1500:1 (typical value), with a wide viewing angle (left: 85 / right: 85 / top: 85 / bottom: 85 degrees), brightness of 400 nits (typical value), and resolution of 480×1280.

WF0675-4801280AM#0P3-FC supports MIPI interface, capable of high-speed data transmission and high-speed timing transmission, with a built-in FL7703NI-G5-DP driver IC. This TFT is equipped with a CTP touch panel (detect 5 points), with a built-in GT911 driver IC for the touch panel, supporting I2C interface. The operating temperature range is -20°C to +70°C; the storage temperature range is -30°C to +80°C. The operating voltage range is 3.0V to 3.6V, with a typical value of 3.3V.

This IPS TFT-LCD can be applied in the gaming industry, such as gaming machine top decorations, small electronic tabletop games, and machine control buttons.



DRAWING



Specification

Interface Pin Function

LCM PIN Definition

Pin No.SymbolPin Description
1 GND Ground
2 D3N High speed interface data differential signal input pins.
3 D3P
4 GND Ground
5 D2N High speed interface data differential signal input pins.
6 D2P
7 GND Ground
8 CLKN High speed interface clock differential signal input pins. OPEN
9 CLKP
10 GND Ground
11 D1N High speed interface data differential signal input pins.
12 D1P
13 GND Ground
14 D0N High speed interface data differential signal input/output pins.
15 D0P
16 GND Ground
17 GND Ground
18 TE Serve as a TE (Tearing Effect) output signal
Leave the pin open when not in use.
19 RESET Reset pin. This signal will reset the device and must be applied to properly initialize the chip.
20 GND Ground
21-23 VCC Power supply
24 GND Ground
25-28 NC No connection
29 VLED- Power for LED backlight cathode
30 VLED+ Power for LED backlight anode



CTP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connection
5 SDA I2C data input and output
6 NC No connection
7 /RST External Reset, Low is active
8 NC No connection
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 6.75 inch
Dot Matrix 480 x 3(RGB) x 1280 dots
Module dimension 74.4 x 1881.1 x 6.6 mm
Active area 60.19 x 160.512 mm
Pixel pitch 0.1254 x 0.1254 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 85/85/85/85
Driver IC FL7703NI-G5-DP or Equivalent
Interface MIPI
CTP Driver IC GT911 or Equivalent
CTP Interface I2C
CTP FW Version HSD_0686097_GT911_1060_V70_480x1280_20230916
CTP Resolution 480*1280
Backlight Type LED,Normally White
With /Without TP With CTP
Surface Glare

*Color tone slight changed by temperature and driving voltage.



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For Logic VCC 3.0 3.3 3.6 V
Supply LCM current Icc － 80 120 mA
Supply CTP VCTP 2.8 3.3 3.6 mA
ICTP － 13.0 20.0 mA



LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 120 － mA
LED voltage VLED+ 15.6 18.0 20.4 V
LED Life Time － － 50,000 － Hr



Products specifications
Brand Winstar
Size 6.75"
Resolution 480x1280
Active Area (mm) 60.19x160.512
Color Full Color
Display Interface MIPI
Display IC FL7703NI-G5-DP
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 6.75"
Resolution 480x1280
Active Area (mm) 60.19x160.512
Color Full Color
Display Interface MIPI
Display IC FL7703NI-G5-DP
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Related products

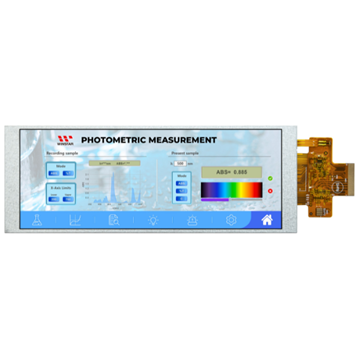

Picture of WF0675-4801280AM#0SP0-FC
