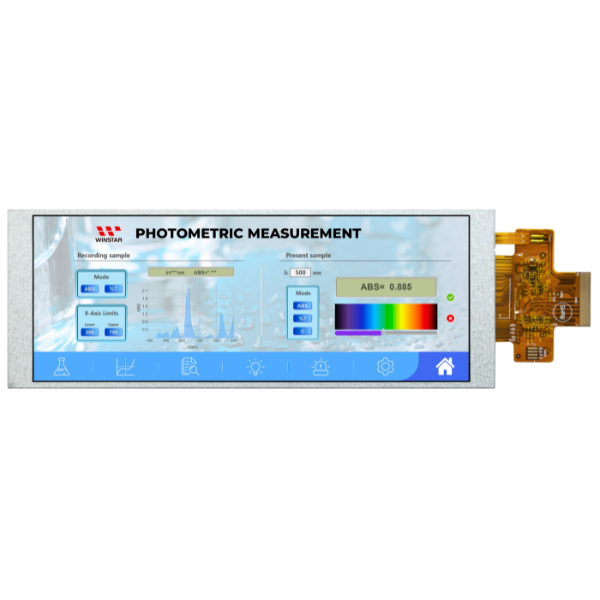

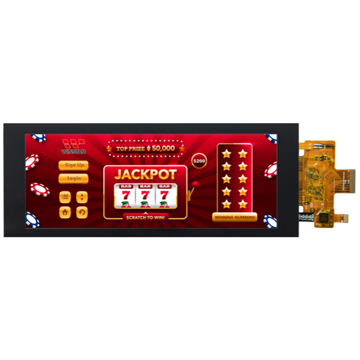

WF0675-4801280AM#0SP0-FC

TFT 6.75" 480x1280, Bar Type, Interface MIPI (4-lanes) IC FL7703NI-G5-DP, High Brightness 1200cd/m², Wide view angle (IPS), No touch

Description

WF0675-4801280AM#0SP0-FC is a 6.75-inch TFT-LCD module that adopts TFT IPS technology, providing impressive sharpness, superior color reproduction, better image consistency, and a high contrast ratio of 1500:1 (typical value). It boasts wide viewing angles (left: 85 / right: 85 / top: 85 / bottom: 85 degrees), high brightness of 1200 nits (typical value), and high resolution of 480×1280. The module dimension is 66.8 x 181.1 mm, with an active area of 60.19 x 160.512 mm.

WF0675-4801280AM#0SP0-FC is built-in with FL7703NI-G5-DP driver IC and supports the MIPI interface, enabling high-speed data transmission and high-speed timing transmission. The operating temperature range is -20°C to +70°C; the storage temperature range is -30°C to +80°C. The supply voltage for logic is 3.0V to 3.6V, with a typical value of 3.3V.

This IPS TFT-LCD can be applied in the gaming industry, such as game console top decorations and small electronic tabletop games.

Specifications

Interface Pin Function

LCM PIN Definition

Pin No.	Symbol	Description
1	GND	Ground
2	D3N	High speed interface data differential signal input pins.
3	D3P	High speed interface data differential signal input pins.
4	GND	Ground
5	D2N	High speed interface data differential signal input pins.
6	D2P	High speed interface data differential signal input pins.
7	GND	Ground
8	CLKN	High speed interface clock differential signal input pins. OPEN
9	CLKP
10	GND	Ground
11	D1N	High speed interface data differential signal input pins.
12	D1P	High speed interface data differential signal input pins.
13	GND	Ground
14	D0N	High speed interface data differential signal input/output pins.
15	D0P
16	GND	Ground
17	GND	Ground
18	TE	Serve as a TE (Tearing Effect) output signal Leave the pin open when not in use.
19	RESET	Reset pin. This signal will reset the device and must be applied to properly initialize the chip.
20	GND	Ground
21-23	VCC	Power supply
24	GND	Ground
25-28	NC	No connection
29	VLED-	Power for LED backlight cathode
30	VLED+	Power for LED backlight anode

General Specifications

Item	Dimension	Unit
Size	6.75	inch
Dot Matrix	480 x 3(RGB) x 1280	dots
Module dimension	66.8 x 181.1 x 4.55	mm
Active area	60.19 x 160.512	mm
Pixel pitch	0.1254 x 0.1254	mm
LCD type	TFT, Normally Black ,Transmissive
View Angle	85/85/85/85
TFT Control IC	FL7703NI-G5-DP or Equivalent
TFT Interface	MIPI
Backlight Type	LED,Normally White
With /Without TP	Without TP
Surface	Glare

*Color tone slight changed by temperature and driving voltage.

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Operating conditions

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage For Logic	VCC	3.0	3.3	3.6	V
Supply LCM current	Icc	－	80	120	mA

LED driving conditions

Parameter	Symbol	Min	Typ	Max	Unit
LED current	－	－	180	－	mA
LED voltage	VLED+	15.6	18.0	20.4	V
LED Life Time	－	－	50,000	－	Hr

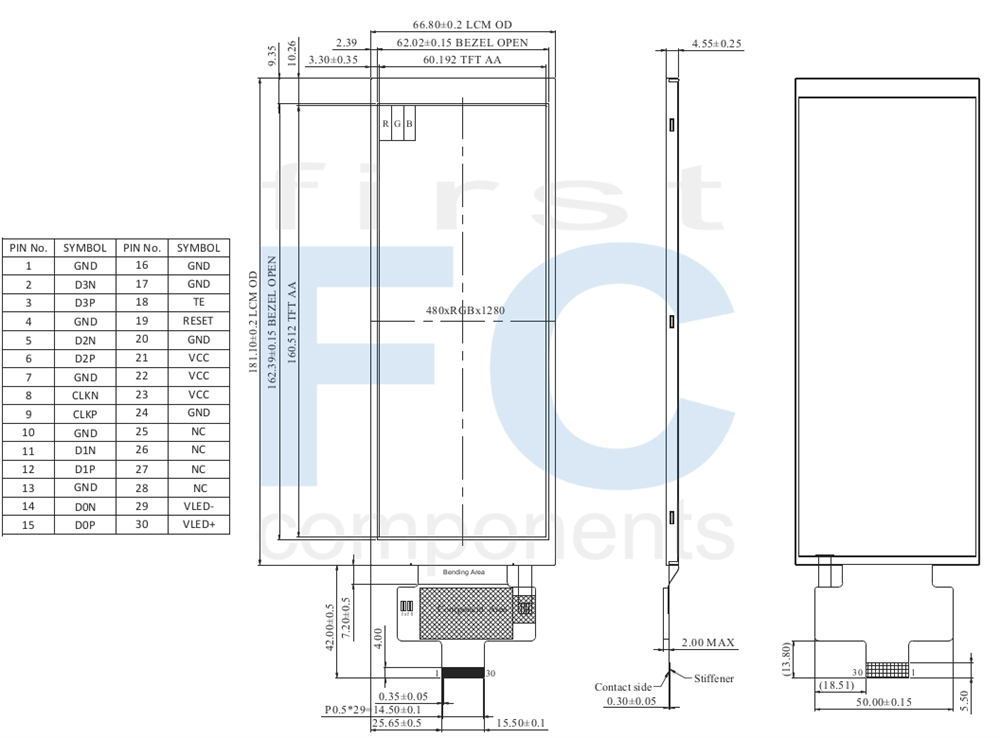

DRAWING

SKU: WF0675-4801280AM#0SP0-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€35.00

€28.00

€24.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€35.00 excl tax
