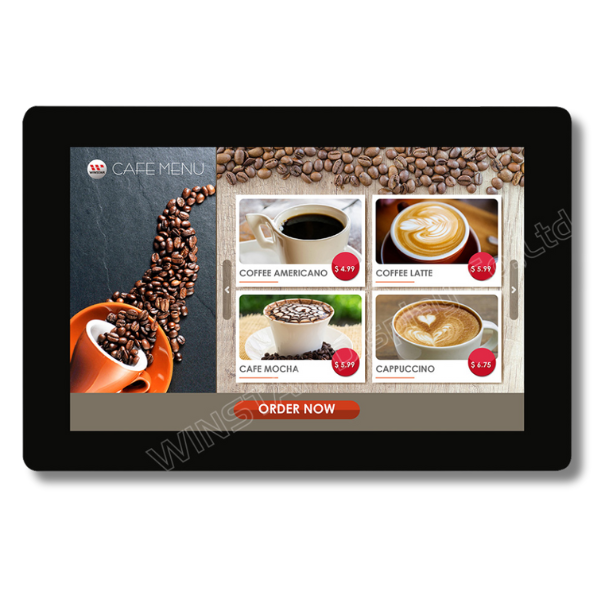

WF101-1280800LH#VSP3-FC is a 10.1 inch high brightness version TFT display with incredibly high resolution 1280x800 pixels and great angle-visibility. WF101-1280800LH#VSP3-FC comes with a control board which supports HDMI signal (Only DVI) interface and having a 40-pin GPIO connector on the board; it is designed to make Raspberry Pi usage become easily. The control board on module is featured with four mounting holes which is an easy method for customers to fix modules on their applications. WF101-1280800LH#VSP3-FC is adopted IPS panel which has a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). This TFT model is built in with TFP401 controller IC, it supports HDMI signal (only for DVI) interface, brightness 900 nits (typical value). This TFT model is built in with GT928 touch panel IC on module, that supports USB interface, and one / two detect point / other option for capacitive touch screen.

The supply voltage for LCM (VDD) of WF101-1280800LH#VSP3-FC is 5V, glare surface glass, aspect ratio 16:10, contrast ratio 1,000:1 (typical value). It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

You can simply use this TFT display with your Raspberry Pi, or also you can use is as a computer display with any device which support HDMI signal output. This 10.1" TFT model comes in 1280x800 resolutions that would be good for embedded computing usage. Please note, this part no. WF101-1280800LH#VSP3-FC does not include an HDMI connector or USB cable.
