WF43-480272WD#ASPW3-FC

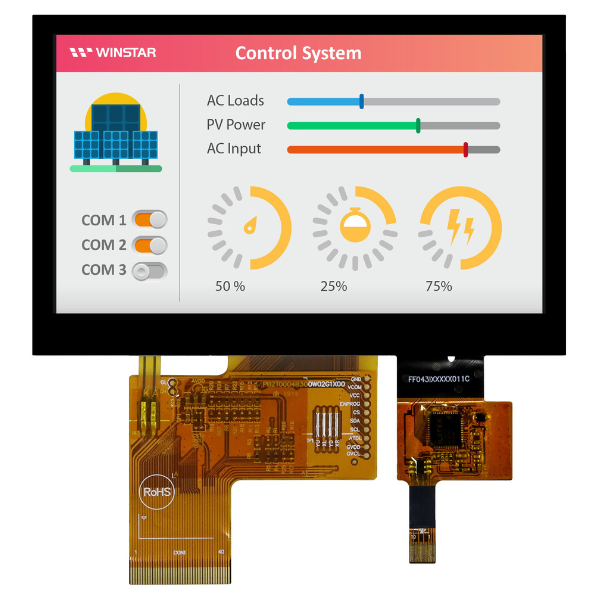

Picture of WF43-480272WD#ASPW3-FC Picture of WF43-480272WD#ASPW3-FC
TFT 4.3" 480x272 LCD Panel, Interface RGB, High Brightness 800cd/m², Wide view angle (IPS), Super Extended Temperature, Capacitive touch panel I2C interface (GG, ILI2130 IC), Default HSYNC-VSYNC

DESCRIPTION

WF43-480272WD#ASPW3-FC is a 4.3 inch IPS TFT display with resolution 480x272 pixels and Capacitive Touch Panel. It is built in with SC7283 driver IC; it supports RGB-24bit interface, with brightness 800 nits (typical value), aspect ratio 16:9, contrast ratio 800 (typical value), glare surface glass. This 4.3 inch TFT-LCD is an IPS (In-Plane Switching) Panel which having the advantage of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) provides great angle-visibility. WF43-480272WD#ASPW3-FC module can be operating at temperatures from -30℃ to +80℃; its storage temperatures range from -30℃ to +80℃.

New TFT+CTP Ilitek IC ILI2130 version // Previous TFT+CTP Focaltech IC FT5426 version P/N WF43-480272WD#0SPW3-FC in 'Related Product' section on the bottom page



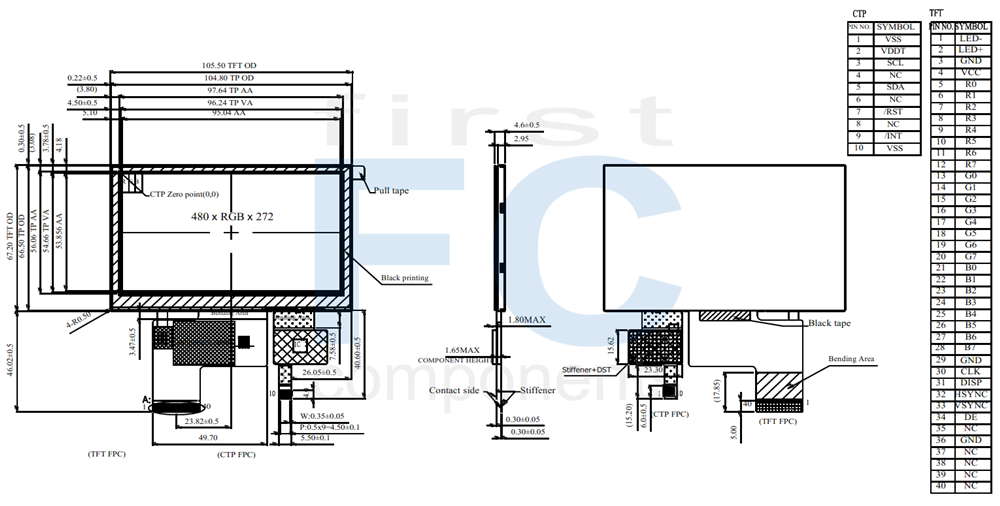

DRAWING

SPECIFICATIONS

LCM PIN Definition

PinSymbolFunction
1 LED- Power for LED backlight cathode
2 LED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data
13 G0 Green data
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data
21 B0 Blue data
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data
29 GND Power ground
30 CLK Pixel clock input pin (DCLK)
31 DISP

DISP sets the display mode

DISP Function Description
L Standby mode
H Normal display mode


32 HSYNC Horizontal sync signal, default is negative polarity
33 VSYNC Vertical sync signal, default is negative polarity
34 DE Data input enable
35 NC No connection
36 GND Power ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection



CTP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply: +3.3V
3 SCL I2C clock input
4 NC No connection
5 SDA I2C data input and output
6 NC No connection
7 /RST External Reset, Low is active
8 NC No connection
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480×RGB×272 (TFT) dots
Module dimension 105.50(W) × 67.20(H) × 4.60(D) mm
Active area 95.04 × 53.856 mm
Pixel pitch 0.198(H) × 0.198(V) mm
LCD type TFT, Normally Black, Transmissive
Viewing angle 80/80/80/80
Aspect Ratio 16:9
TFT Drive IC SC7283 or equivalent
TFT Interface 24-bit RGB
Backlight Type LED, Normally White
CTP FW Version 0x07.0x00.0x00.0x00.0x01.0x0C.0x11.0x43
CTP IC ILI2130 or equivalent
CTP Interface I2C
CTP Resolution 16384*16384
With/Without TP With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Supply Voltage for LCM VCC 3.0 - 3.6 V
Supply Current for LCM ICC - 25 37.5 mA
Supply CTP VDDT 2.8 - 3.3 V
ICTP - 52 78 mA
SKU: WF43-480272WD#ASPW3-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€41.80
€34.80
€29.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€41.80 excl tax

DESCRIPTION

WF43-480272WD#ASPW3-FC is a 4.3 inch IPS TFT display with resolution 480x272 pixels and Capacitive Touch Panel. It is built in with SC7283 driver IC; it supports RGB-24bit interface, with brightness 800 nits (typical value), aspect ratio 16:9, contrast ratio 800 (typical value), glare surface glass. This 4.3 inch TFT-LCD is an IPS (In-Plane Switching) Panel which having the advantage of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) provides great angle-visibility. WF43-480272WD#ASPW3-FC module can be operating at temperatures from -30℃ to +80℃; its storage temperatures range from -30℃ to +80℃.

New TFT+CTP Ilitek IC ILI2130 version // Previous TFT+CTP Focaltech IC FT5426 version P/N WF43-480272WD#0SPW3-FC in 'Related Product' section on the bottom page



DRAWING

SPECIFICATIONS

LCM PIN Definition

PinSymbolFunction
1 LED- Power for LED backlight cathode
2 LED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data
13 G0 Green data
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data
21 B0 Blue data
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data
29 GND Power ground
30 CLK Pixel clock input pin (DCLK)
31 DISP

DISP sets the display mode

DISP Function Description
L Standby mode
H Normal display mode


32 HSYNC Horizontal sync signal, default is negative polarity
33 VSYNC Vertical sync signal, default is negative polarity
34 DE Data input enable
35 NC No connection
36 GND Power ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection



CTP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply: +3.3V
3 SCL I2C clock input
4 NC No connection
5 SDA I2C data input and output
6 NC No connection
7 /RST External Reset, Low is active
8 NC No connection
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480×RGB×272 (TFT) dots
Module dimension 105.50(W) × 67.20(H) × 4.60(D) mm
Active area 95.04 × 53.856 mm
Pixel pitch 0.198(H) × 0.198(V) mm
LCD type TFT, Normally Black, Transmissive
Viewing angle 80/80/80/80
Aspect Ratio 16:9
TFT Drive IC SC7283 or equivalent
TFT Interface 24-bit RGB
Backlight Type LED, Normally White
CTP FW Version 0x07.0x00.0x00.0x00.0x01.0x0C.0x11.0x43
CTP IC ILI2130 or equivalent
CTP Interface I2C
CTP Resolution 16384*16384
With/Without TP With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Supply Voltage for LCM VCC 3.0 - 3.6 V
Supply Current for LCM ICC - 25 37.5 mA
Supply CTP VDDT 2.8 - 3.3 V
ICTP - 52 78 mA
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Preferred
