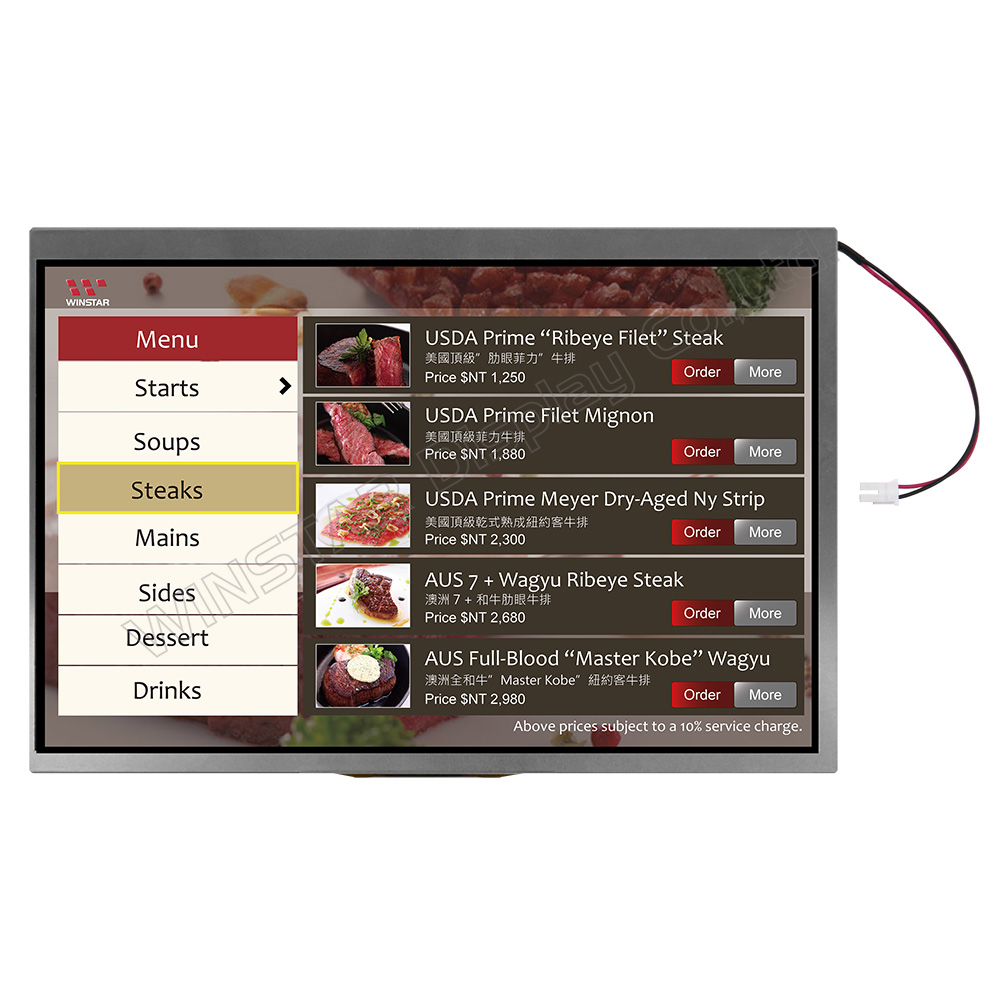

10.1-inch High Brightness IPS TFT-LCD module, made of resolution 1280x800 pixels. This module is built-in with EK79202B1 driver IC, and it supports LVDS interface. IPS panel which is having the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 1000:1 (typical value), brightness 1100 nits (typical value), anti-glare surface panel, aspect ratio 16:10. This model is also available in projected capacitive touch screen (PCAP) and resistive touch screen (RTP).
The supply voltage(VCC) is from 3.0V to 3.5V, the typical value of 3.3V. Operating temperatures from -20℃ to+ 70℃ and storage temperature from -30℃ to +80℃.
