WF32-240320DD#0S1-FC

Picture of WF32-240320DD#0S1-FC Picture of WF32-240320DD#0S1-FC
TFT 3.2'' 240x320, Portrait, LCD Module, Interface MCU (Parallel/SPI) IC ILI9341, High brightness 700cd/m², Resistive touch panel

DESCRIPTION

Portrait mode 3.2 inch TFT LCD module with Resistive Touch Panel (RTP), made of resolution 240x320 pixels. This module is built in with ILI9341 driver IC, it supports 8080 MCU 8bit /9bit/16bit/18bit/ SPI (3 Wire/4 Wire) interface. It is a high brightness TFT-LCD module, typical value 700 nits, contrast ratio 500:1 (typical value), view direction 6 o’clock, gray scale inversion direction 12 o’clock, glare surface panel. The power supply voltage (VCI) is from 2.5V to 3.3V, typical value 2.8V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

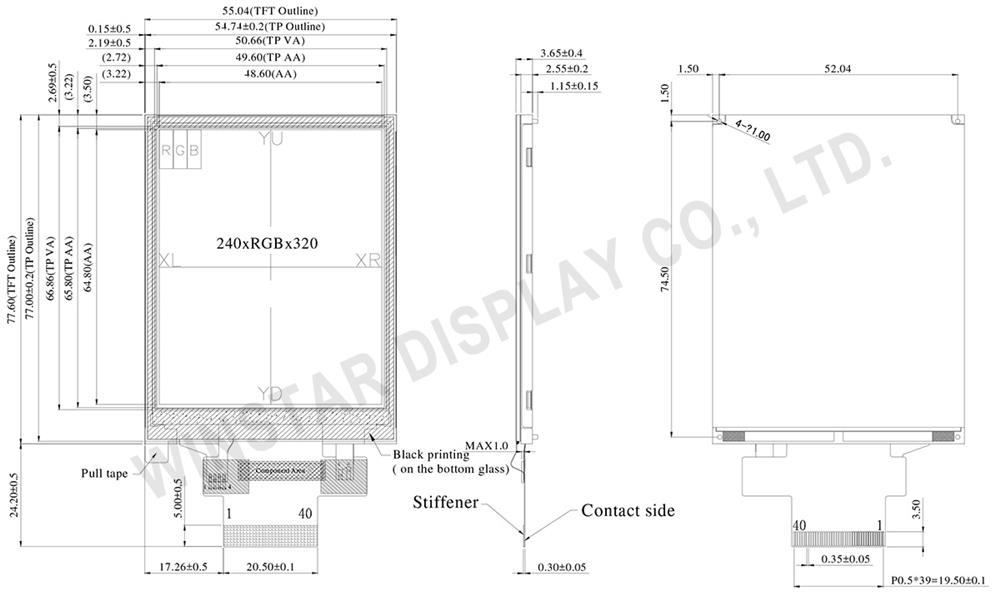

DRAWING

3.2 inch High Brightness 240x320 TFT Module with Resistive Touch Panel - WF32DSLAJDNT0

SPECIFICATIONS



Interface

NOSymbolFunctionI/O
1 YU Y up for touch panel －
2 XL X left for touch panel －
3 YD Y down for touch panel －
4 XR X right for touch panel －
5 VCI Power supply(TYP: 2.8V). P
6 IOVCC Power supply(TYP:1.8V/2.8V). P
7 R5 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode Fix to VSS level when not in use		 I/O
8 R4
9 R3
10 R2
11 R1
12 R0
13 G5
14 G4
15 G3
16 G2
17 G1
18 G0
19 B5
20 B4
21 B3
22 B2
23 B1
24 B0
25 SDA Serial data input/output I/O
26 DOTCLK Data enable signal in RGB interface. I
27 DE A data ENABLE signal in RGB I/F mode I
28 HSYNC Horizontal synchronizing signal in RGB interface I
29 VSYNC Vertical synchronizing signal in RGB interface I
30 NRD Read enable pin I80 parallel bus system interface I
31 NWR_DNC NWR Write enable pin I80 parallel bus system interface
DNC Command/parameter or display data selection pin in serial bus system interface		 I
32 DNC_SCL DNC Command/parameter or display data selection pin in parallel interface
SCL Serial data clock in serial bus system Interface		 I
33 NCS Chip select signal I
34 NRESET System Reset I
35 IM0 System interface select:
IM2IM1IM0MCU-Interface ModeDB Pin in use
Register/ContentGRAM
0 0 0 80 MCU 8-bit bus
interface I		 D[7:0] D[7:0]
0 0 1 80 MCU 16-bit bus
interface I		 D[7:0] D[15:0]
0 1 0 80 MCU 9-bit bus
interface I		 D[7:0] D[8:0]
0 1 1 80 MCU 18-bit bus
interface I		 D[7:0] D[17:0]
1 0 1 3-wire 9-bit data serial
interface I		 SDA:In/OUT
1 1 0 4-wire 8-bit data serial
interface I		 SDA:In/OUT
I
36 IM1
37 IM2
38 GND Ground P
39 VLED+ Anode of LED backlight. P
40 VLED- Cathode of LED backlight. P



General Specifications

ItemDimensionUnit
Size 3.2 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 55.04 (W) × 77.6 (H) × 3.65(D) mm
Active area 48.6 × 64.8 mm
Pixel pitch 0.2025 × 0.2025 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Portrait
Driver IC ILI9341 or Equivalent
Interface 80 MCU 8bit/9bit/16bit/18bit/SPI(3 Wire/4 Wire)
Backlight Type LED, Normally White
Touch Panel Resistive Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypeMaxUnit
Power supply voltage VCI   2.5 2.8 3.3 V
Power supply voltage IOVCC   1.65 2.8 3.3 V
Input high voltage Vih   0.7IOVCC - IOVCC V
Input low voltage Vil GND - 0.3IOVCC V
Output high voltage Voh IOL=-1.0mA 0.8 IOVCC - IOVCC V
Output low voltage Vol IOL =1.0mA GND - 0.2 IOVCC V
Current consumption IVCI - - 5.5 8.25 mA


SKU: WF32-240320DD#0S1-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€26.10
€20.90
€17.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€26.10 excl tax

DESCRIPTION

Portrait mode 3.2 inch TFT LCD module with Resistive Touch Panel (RTP), made of resolution 240x320 pixels. This module is built in with ILI9341 driver IC, it supports 8080 MCU 8bit /9bit/16bit/18bit/ SPI (3 Wire/4 Wire) interface. It is a high brightness TFT-LCD module, typical value 700 nits, contrast ratio 500:1 (typical value), view direction 6 o’clock, gray scale inversion direction 12 o’clock, glare surface panel. The power supply voltage (VCI) is from 2.5V to 3.3V, typical value 2.8V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.



DRAWING

3.2 inch High Brightness 240x320 TFT Module with Resistive Touch Panel - WF32DSLAJDNT0

SPECIFICATIONS



Interface

NOSymbolFunctionI/O
1 YU Y up for touch panel －
2 XL X left for touch panel －
3 YD Y down for touch panel －
4 XR X right for touch panel －
5 VCI Power supply(TYP: 2.8V). P
6 IOVCC Power supply(TYP:1.8V/2.8V). P
7 R5 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode Fix to VSS level when not in use		 I/O
8 R4
9 R3
10 R2
11 R1
12 R0
13 G5
14 G4
15 G3
16 G2
17 G1
18 G0
19 B5
20 B4
21 B3
22 B2
23 B1
24 B0
25 SDA Serial data input/output I/O
26 DOTCLK Data enable signal in RGB interface. I
27 DE A data ENABLE signal in RGB I/F mode I
28 HSYNC Horizontal synchronizing signal in RGB interface I
29 VSYNC Vertical synchronizing signal in RGB interface I
30 NRD Read enable pin I80 parallel bus system interface I
31 NWR_DNC NWR Write enable pin I80 parallel bus system interface
DNC Command/parameter or display data selection pin in serial bus system interface		 I
32 DNC_SCL DNC Command/parameter or display data selection pin in parallel interface
SCL Serial data clock in serial bus system Interface		 I
33 NCS Chip select signal I
34 NRESET System Reset I
35 IM0 System interface select:
IM2IM1IM0MCU-Interface ModeDB Pin in use
Register/ContentGRAM
0 0 0 80 MCU 8-bit bus
interface I		 D[7:0] D[7:0]
0 0 1 80 MCU 16-bit bus
interface I		 D[7:0] D[15:0]
0 1 0 80 MCU 9-bit bus
interface I		 D[7:0] D[8:0]
0 1 1 80 MCU 18-bit bus
interface I		 D[7:0] D[17:0]
1 0 1 3-wire 9-bit data serial
interface I		 SDA:In/OUT
1 1 0 4-wire 8-bit data serial
interface I		 SDA:In/OUT
I
36 IM1
37 IM2
38 GND Ground P
39 VLED+ Anode of LED backlight. P
40 VLED- Cathode of LED backlight. P



General Specifications

ItemDimensionUnit
Size 3.2 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 55.04 (W) × 77.6 (H) × 3.65(D) mm
Active area 48.6 × 64.8 mm
Pixel pitch 0.2025 × 0.2025 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Portrait
Driver IC ILI9341 or Equivalent
Interface 80 MCU 8bit/9bit/16bit/18bit/SPI(3 Wire/4 Wire)
Backlight Type LED, Normally White
Touch Panel Resistive Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypeMaxUnit
Power supply voltage VCI   2.5 2.8 3.3 V
Power supply voltage IOVCC   1.65 2.8 3.3 V
Input high voltage Vih   0.7IOVCC - IOVCC V
Input low voltage Vil GND - 0.3IOVCC V
Output high voltage Voh IOL=-1.0mA 0.8 IOVCC - IOVCC V
Output low voltage Vol IOL =1.0mA GND - 0.2 IOVCC V
Current consumption IVCI - - 5.5 8.25 mA


Products specifications
Brand Winstar
Size 3.2"
Resolution 240x320
Active Area (mm) 48.60x64.80
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC Controller ILI9341
View Angle TN
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
