WF101FSYAPLNB0#

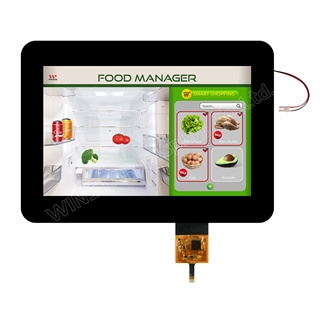

Picture of WF101FSYAPLNB0# Picture of WF101FSYAPLNB0#
TFT 10.1" 1280x800 LCD Panel, Interface LVDS, High Brightness 900cd/m², Wide View Angle (IPS), Capacitive touch panel USB/I2C interface (GG, ILI2511 IC, Black free board)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

10 inch High Brightness IPS TFT Touch Display with USB Capacitive Touch Screen on module. This TFT model is featured with luminance 900 nits (typical value), made of HD resolution 1280x800 pixels. It supports LVDS interface, and the capacitive touch panel is built in with ILI2511 driver IC which supports USB and I2C interface. The outline dimension of TFT is 230.56x155.01 mm, as to the dimension of capacitive touch screen is 274.5×198 mm. In order to fit into the product application market trend, we design the outline dimension of the cover lens are bigger than TFT modules.

The power supply voltage (VDD) is from 2.3V to 2.7V, typical value 2.5V. This IPS TFT LCD module is featured with High Brightness 800 ~ 900 cd/m2 and wider view angle range of Left:85 / Right:85 / Up:85 / Down:85 degree (typical). Operating temperatures from -20℃ to +70 ℃ and storage temperatures from -20 to +70 ℃.

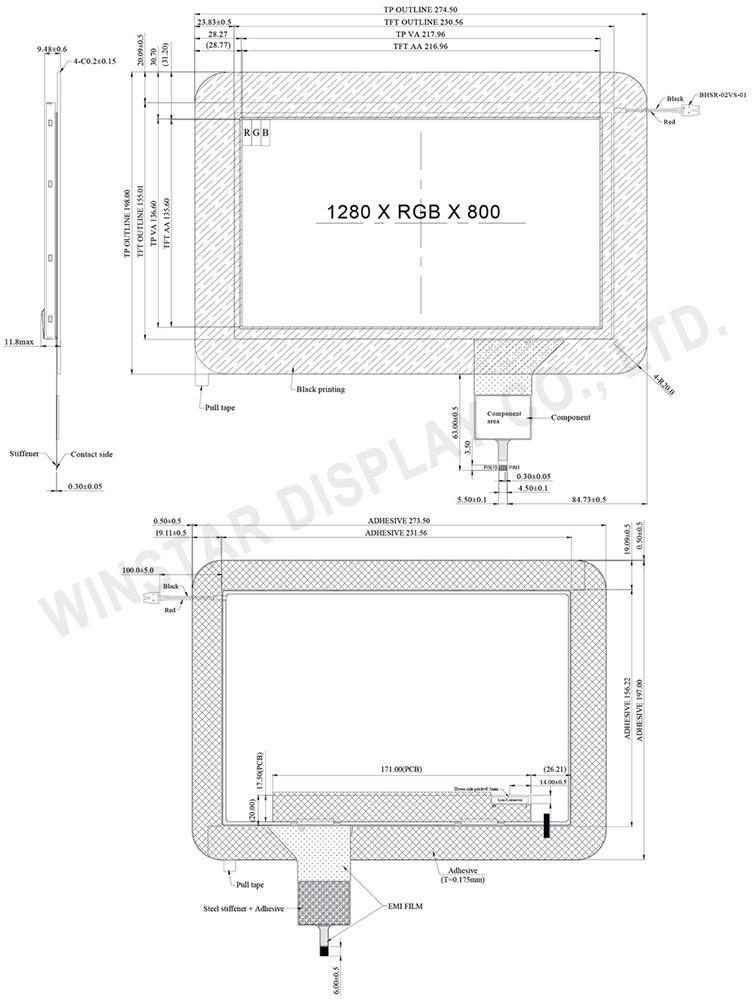

DRAWING

IPS Touch Display, 1280x800, 10.1 IPS TFT Touch Display with USB Capacitive Touch Screen - WF101FSYAPLNB0

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2 VDD P Power Supply
3 VDD P Power Supply
4 NC - No connection
5 NC - No connection
6 NC - No connection
7 GND P Ground
8 Rxin0- I -LVDS Differential Data Input
9 Rxin0+ I +LVDS Differential Data Input
10 GND P Ground
11 Rxin1- I -LVDS Differential Data Input
12 Rxin1+ I +LVDS Differential Data Input
13 GND P Ground
14 Rxin2- I -LVDS Differential Data Input
15 Rxin2+ I +LVDS Differential Data Input
16 GND P Ground
17 RxCLK- I -LVDS Differential Clock Input
18 RxCLK+ I +LVDS Differential Clock Input
19 GND P Ground
20 Rxin3- I -LVDS Differential Data Input
21 Rxin3+ I +LVDS Differential Data Input
22 GND P Ground
23 NC - No connection
24 NC - No connection
25 GND P Ground
26 NC - No connection
27 NC - No connection
28 NC - No connection
29 AVDD P Power for Analog Circuit
30 GND P Ground
31 NC - No connection
32 NC - No connection
33 NC - No connection
34 NC - No connection
35 VGL P Gate OFF Voltage
36 NC - No connection
37 NC - No connection
38 VGH P Gate ON Voltage
39 NC - No connection
40 NC - No connection

I: input, O: output, P: Power



PCAP PIN Definition

PinSymbolFunction
1 USB_VSS System ground
2 USB_VDD 5V Power supply
3 USB_D+ Data +
4 USB_D- Data -
5 VSS System ground
6 SDA I2C data input and output
7 SCL I2C clock input
8 RST External Reset, Low is active
9 INT External interrupt to the host
10 VDDT 3.3 Power supply




General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 × 3(RGB) × 800 dots
Module dimension 274.5 × 198.0 × 9.48 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
TFT Driver IC HX8288 + HX8695 Or Equal
Display Mode TFT , Normally Black , Transmissive
Pixel Arrangement R.G.B. Vertical Stripe
Backlight Type LED,Normally White
Aspect Ratio 16:9
Electrical Interface (Logic) LVDS
PCAP IC ILI2511 Or Equal
PCAP Interface USB (I2C available)
PCAP FW Version V 6. 0. 0. 0.10. 1.60. 1
Touch Panel PCAP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -20 － +70 ℃



Electrical Characteristics

ItemSymbolValuesUnit
Min.Typ.MAX.
Power voltage VDD 2.3 2.5 2.7 V
AVDD 8.0 8.2 8.4 V
VGH 21.7 22 22.3 V
VGL -7.3 -7 -6.7 V
Input signal voltage VCOM 2.7 3.0 3.3 V
Supply Voltage For Touch Logic VDDT 4.4 5.0 5.5 V


SKU: WF101-1280800FL#0SP8B-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€152.40
€144.90
€130.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€152.40 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

10 inch High Brightness IPS TFT Touch Display with USB Capacitive Touch Screen on module. This TFT model is featured with luminance 900 nits (typical value), made of HD resolution 1280x800 pixels. It supports LVDS interface, and the capacitive touch panel is built in with ILI2511 driver IC which supports USB and I2C interface. The outline dimension of TFT is 230.56x155.01 mm, as to the dimension of capacitive touch screen is 274.5×198 mm. In order to fit into the product application market trend, we design the outline dimension of the cover lens are bigger than TFT modules.

The power supply voltage (VDD) is from 2.3V to 2.7V, typical value 2.5V. This IPS TFT LCD module is featured with High Brightness 800 ~ 900 cd/m2 and wider view angle range of Left:85 / Right:85 / Up:85 / Down:85 degree (typical). Operating temperatures from -20℃ to +70 ℃ and storage temperatures from -20 to +70 ℃.



DRAWING

IPS Touch Display, 1280x800, 10.1 IPS TFT Touch Display with USB Capacitive Touch Screen - WF101FSYAPLNB0

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2 VDD P Power Supply
3 VDD P Power Supply
4 NC - No connection
5 NC - No connection
6 NC - No connection
7 GND P Ground
8 Rxin0- I -LVDS Differential Data Input
9 Rxin0+ I +LVDS Differential Data Input
10 GND P Ground
11 Rxin1- I -LVDS Differential Data Input
12 Rxin1+ I +LVDS Differential Data Input
13 GND P Ground
14 Rxin2- I -LVDS Differential Data Input
15 Rxin2+ I +LVDS Differential Data Input
16 GND P Ground
17 RxCLK- I -LVDS Differential Clock Input
18 RxCLK+ I +LVDS Differential Clock Input
19 GND P Ground
20 Rxin3- I -LVDS Differential Data Input
21 Rxin3+ I +LVDS Differential Data Input
22 GND P Ground
23 NC - No connection
24 NC - No connection
25 GND P Ground
26 NC - No connection
27 NC - No connection
28 NC - No connection
29 AVDD P Power for Analog Circuit
30 GND P Ground
31 NC - No connection
32 NC - No connection
33 NC - No connection
34 NC - No connection
35 VGL P Gate OFF Voltage
36 NC - No connection
37 NC - No connection
38 VGH P Gate ON Voltage
39 NC - No connection
40 NC - No connection

I: input, O: output, P: Power



PCAP PIN Definition

PinSymbolFunction
1 USB_VSS System ground
2 USB_VDD 5V Power supply
3 USB_D+ Data +
4 USB_D- Data -
5 VSS System ground
6 SDA I2C data input and output
7 SCL I2C clock input
8 RST External Reset, Low is active
9 INT External interrupt to the host
10 VDDT 3.3 Power supply




General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 × 3(RGB) × 800 dots
Module dimension 274.5 × 198.0 × 9.48 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
TFT Driver IC HX8288 + HX8695 Or Equal
Display Mode TFT , Normally Black , Transmissive
Pixel Arrangement R.G.B. Vertical Stripe
Backlight Type LED,Normally White
Aspect Ratio 16:9
Electrical Interface (Logic) LVDS
PCAP IC ILI2511 Or Equal
PCAP Interface USB (I2C available)
PCAP FW Version V 6. 0. 0. 0.10. 1.60. 1
Touch Panel PCAP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -20 － +70 ℃



Electrical Characteristics

ItemSymbolValuesUnit
Min.Typ.MAX.
Power voltage VDD 2.3 2.5 2.7 V
AVDD 8.0 8.2 8.4 V
VGH 21.7 22 22.3 V
VGL -7.3 -7 -6.7 V
Input signal voltage VCOM 2.7 3.0 3.3 V
Supply Voltage For Touch Logic VDDT 4.4 5.0 5.5 V


Products specifications
Brand Winstar
Size 10.1"
Resolution 1280x800
Active Area (mm) 216.96x135.60
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive free board (USB/I2C)
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2511
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 10.1"
Resolution 1280x800
Active Area (mm) 216.96x135.60
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive free board (USB/I2C)
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2511
Preferred - Not Preferred Not Preferred
Related products
Picture of SML2CD40X142BDX6BL-P0.5-S4

SML2CD40X142BDX6BL-P0.5-S4

FFC Cable 40 pins, 0.5mm pitch, 150mm length, Same side
From €3.40 excl tax
Picture of CNR5231XXXXXXXXXXX01

CNR5231XXXXXXXXXXX01

ZIF Connector 40 pins, 0.5mm pitch, Top contact
From €2.40 excl tax
Picture of CNR6231XXXXXXXXXXX00

CNR6231XXXXXXXXXXX00

ZIF Connector 40 pins, 0.5mm pitch, Bottom contact
From €2.40 excl tax
Picture of SW10005R000BA00N0100

SW10005R000BA00N0100

Converter Board for CTP connection from USB to ZIF 10pin
From €3.40 excl tax
Picture of TST0010R1F4111XXXX00

TST0010R1F4111XXXX00

Capacitive (GG) Touch panel 10.1", O.D. 274.50x198.00mm, USB-I2C interface (ILI2511 IC), Glass-Glass structure, Black free board (suitable for WF101G/F families)
From €54.60 excl tax
Picture of WWTFTDEMO101F-03#

WWTFTDEMO101F-03#

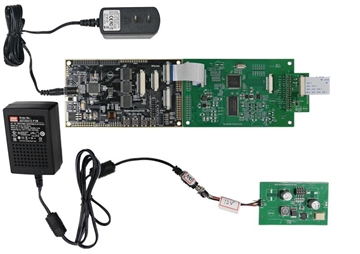

Evaluation kit for TFT WF101G/F panel high brightness with CTP. The kit includes: CPU PIC24 + Graphic Controller RA8877 (+ LED Driver for HB version) + FFC cable 36pins + Power adapter 12V 2A + Power adapter 5V 1A (LCD module NOT included)
