WF104-1024768GL#0PW8-FC

Picture of WF104-1024768GL#0PW8-FC Picture of WF104-1024768GL#0PW8-FC
TFT 10.4'' 1024x768, LCD Module, Interface LVDS, 400cd/m², Wide view angle (IPS), Super extended Temperature, Capacitive touch panel USB interface (GG, ILI2511 IC)

DESCRIPTION

10.4-inch Wide Temperature IPS TFT-LCD module with a Projected Capacitive Touch Panel, made of resolution 1024x768 pixels and supports LVDS interface. It is adopted IPS panel which is having the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (minimum), contrast ratio 1000:1 (typical value), brightness 400 nits (typical value), glare surface panel, aspect ratio 4:3.

The supply voltage (VDD) is from 3.0V to 3.6V, the typical value of 3.3V. It can be operating at temperatures from -30℃ to+ 80℃ and storage temperatures from -30℃ to +80℃.

Since Mitsubishi announced that it would end production of TFT-LCD modules manufacturing, customers can select our WF104G series as Mitsubishi 10.4" replacement.

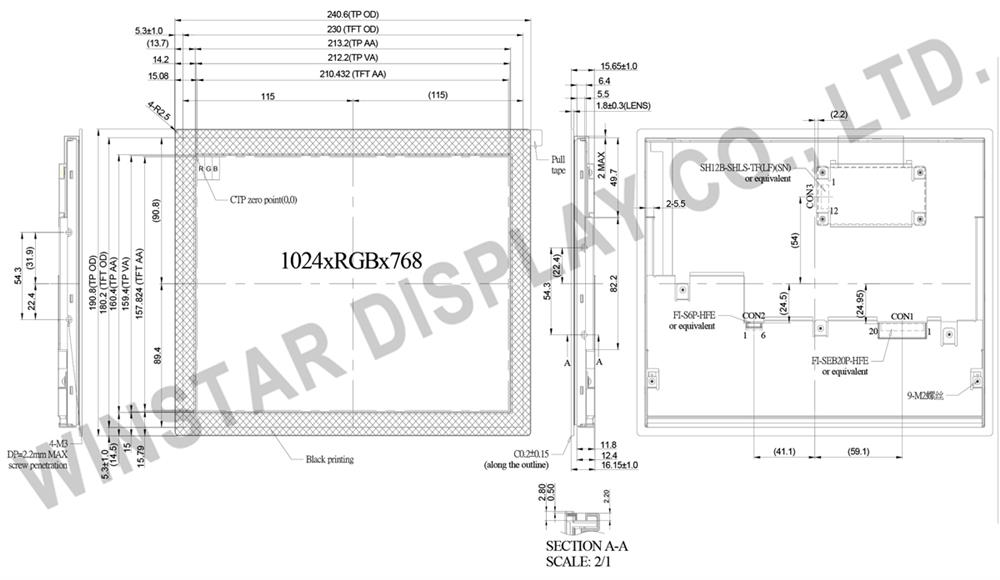

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1-2 VDD Power supply: + 3.3V
3-4 GND Ground
5 Link0- 0-    LVDS differential data input
6 Link0+ 0+ LVDS differential data input
7 GND Ground
8 Link1- 1-    LVDS differential data input
9 Link1+ 1+ LVDS differential data input
10 GND Ground
11 Link2- 2- LVDS differential data input
12 Link2+ 2+ LVDS differential data input
13 GND Ground
14 CLKIN- - LVDS differential clock input
15 CLKIN+ + LVDS differential clock input
16 GND Ground
17 Link3- 3- LVDS differential data input
18 Link3+ 3+ LVDS differential data input
19 MODE Bit 6:High(6 Bit);Low(8 Bit)
20 SC Scan direction selector (Low: Normal ;High: Reverse)



General Specifications

ItemDimensionUnit
Size 10.4 inch
Dot Matrix 1024 × RGB × 768 (TFT) dots
Module dimension 240.6 × 190.8 × 15.65 mm
Active area 210.432 × 157.824 mm
Pixel Pitch 0.2055 × 0.2055 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80 min
Aspect Ratio 4:3
TFT Interface LVDS
Backlight Type LED ,Normally White
PCAP IC ILI2511 or Equivalent
PCAP Interface USB
PCAP FW Version 6.0.0.0.0.0.0.3
PCAP Resolution 16384*16384
Touch Panel Projected capacitive touch screen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolStandard ValueUnit
MinTypMax
Power voltage VDD 3 3.3 3.6 V
Supply PCAP USB_VDD 5V 4.4 5 5.5 V
I VDD 5V — 95 145 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD V
Current for Power IVDD - 385 424 mA
SKU: WF104-1024768GL#0PW8-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€228.80
€225.00
€189.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€228.80 excl tax

DESCRIPTION

10.4-inch Wide Temperature IPS TFT-LCD module with a Projected Capacitive Touch Panel, made of resolution 1024x768 pixels and supports LVDS interface. It is adopted IPS panel which is having the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (minimum), contrast ratio 1000:1 (typical value), brightness 400 nits (typical value), glare surface panel, aspect ratio 4:3.

The supply voltage (VDD) is from 3.0V to 3.6V, the typical value of 3.3V. It can be operating at temperatures from -30℃ to+ 80℃ and storage temperatures from -30℃ to +80℃.

Since Mitsubishi announced that it would end production of TFT-LCD modules manufacturing, customers can select our WF104G series as Mitsubishi 10.4" replacement.

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1-2 VDD Power supply: + 3.3V
3-4 GND Ground
5 Link0- 0-    LVDS differential data input
6 Link0+ 0+ LVDS differential data input
7 GND Ground
8 Link1- 1-    LVDS differential data input
9 Link1+ 1+ LVDS differential data input
10 GND Ground
11 Link2- 2- LVDS differential data input
12 Link2+ 2+ LVDS differential data input
13 GND Ground
14 CLKIN- - LVDS differential clock input
15 CLKIN+ + LVDS differential clock input
16 GND Ground
17 Link3- 3- LVDS differential data input
18 Link3+ 3+ LVDS differential data input
19 MODE Bit 6:High(6 Bit);Low(8 Bit)
20 SC Scan direction selector (Low: Normal ;High: Reverse)



General Specifications

ItemDimensionUnit
Size 10.4 inch
Dot Matrix 1024 × RGB × 768 (TFT) dots
Module dimension 240.6 × 190.8 × 15.65 mm
Active area 210.432 × 157.824 mm
Pixel Pitch 0.2055 × 0.2055 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80 min
Aspect Ratio 4:3
TFT Interface LVDS
Backlight Type LED ,Normally White
PCAP IC ILI2511 or Equivalent
PCAP Interface USB
PCAP FW Version 6.0.0.0.0.0.0.3
PCAP Resolution 16384*16384
Touch Panel Projected capacitive touch screen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolStandard ValueUnit
MinTypMax
Power voltage VDD 3 3.3 3.6 V
Supply PCAP USB_VDD 5V 4.4 5 5.5 V
I VDD 5V — 95 145 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD V
Current for Power IVDD - 385 424 mA
Products specifications
Brand Winstar
Size 10.4"
Resolution 1024x768
Active Area (mm) 210.43x157.82
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection LVDS Connector
Pin Nr. 20
Pin Pitch 1.25mm
Touch Panel IC Controller ILI2511
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 10.4"
Resolution 1024x768
Active Area (mm) 210.43x157.82
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection LVDS Connector
Pin Nr. 20
Pin Pitch 1.25mm
Touch Panel IC Controller ILI2511
Preferred - Not Preferred Preferred
