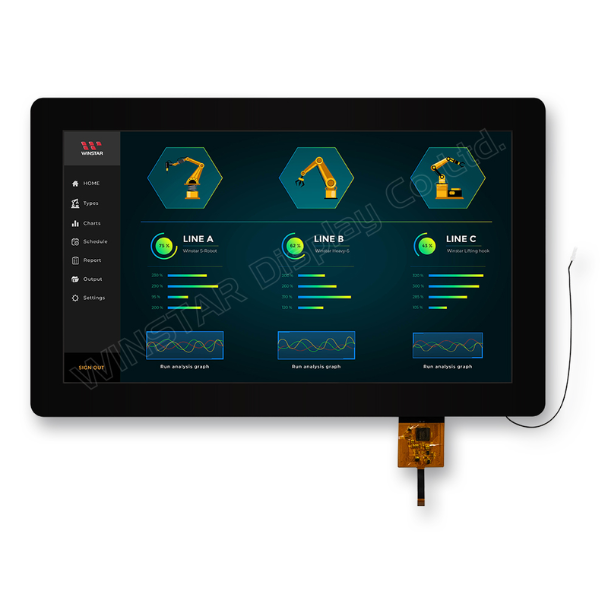

WF1560-19201080BD#0SP8-FC is a 15.6-inch high resolution TFT LCD display module boasting a resolution of 1920x1080 pixels and PCAP touch functionality. This high resolution TFT LCD display module features a built-in TC2055G driver IC and supports eDP interface. With outline dimensions of 393.8 x 245.9 mm and an active area size of 344.16 x 193.59 mm, it utilizes IPS technology to deliver a wider viewing angle of 80 degrees in all directions (Left: 80 / Right: 80 / Up: 80 / Down: 80).

With a high contrast ratio of 1,500:1 (typical value) and a brightness of 800 nits (typical value), this model ensures vivid and clear visuals, enhancing the user experience. Additionally, the module adopts a projected capacitive touch panel (PCAP) with ILI2511 IC, which supports USB and I2C interfaces and 10-point touch, further elevating its usability and functionality.

Operating within a power voltage range of 3.0V to 3.6V (typical value: 3.3V), this module is designed to withstand various environmental conditions. Its operating temperature ranges from -20°C to +70°C, while the storage temperature extends from -30°C to +80°C, making it suitable for a wide range of applications. From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.
