WF18-128160FD#001-FC

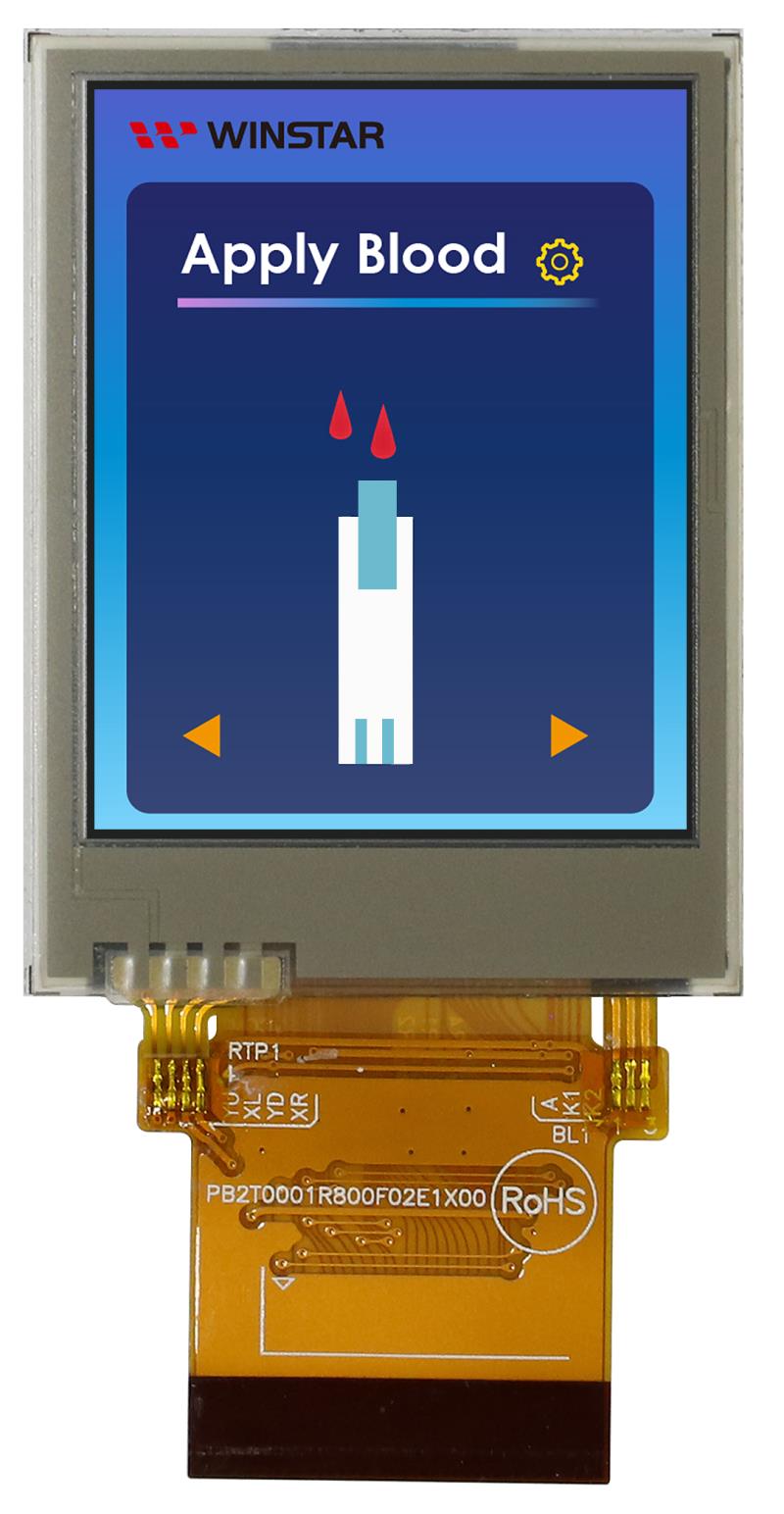

TFT 1.77'' 128x160, Portrait, LCD + IC Controller, Interface MCU (Parallel/SPI) IC ST7735S, 350cd/m², Resistive touch panel

DESCRIPTION



Full color 128x160 TFT-LCD display module, diagonal size 1.77 inch with Resistive touch panel. This module is built in with ST7735S IC; it supports 8080 8/16-bit parallel and serial 3-wire SPI interface. Active area size of 28.03 x 35.04 mm; it's supply voltage range from for analog is 2.5V to 4.8V.

It is a portrait mode LCD module, if you would like to use it as landscape mode, please contact us for more technical support. This 1.77” TFT LCD module is featured with brightness up to 350 cd/m2(typical value). Operating temperatures from -20℃ to 70℃; storage temperatures from -30℃ to 80℃.

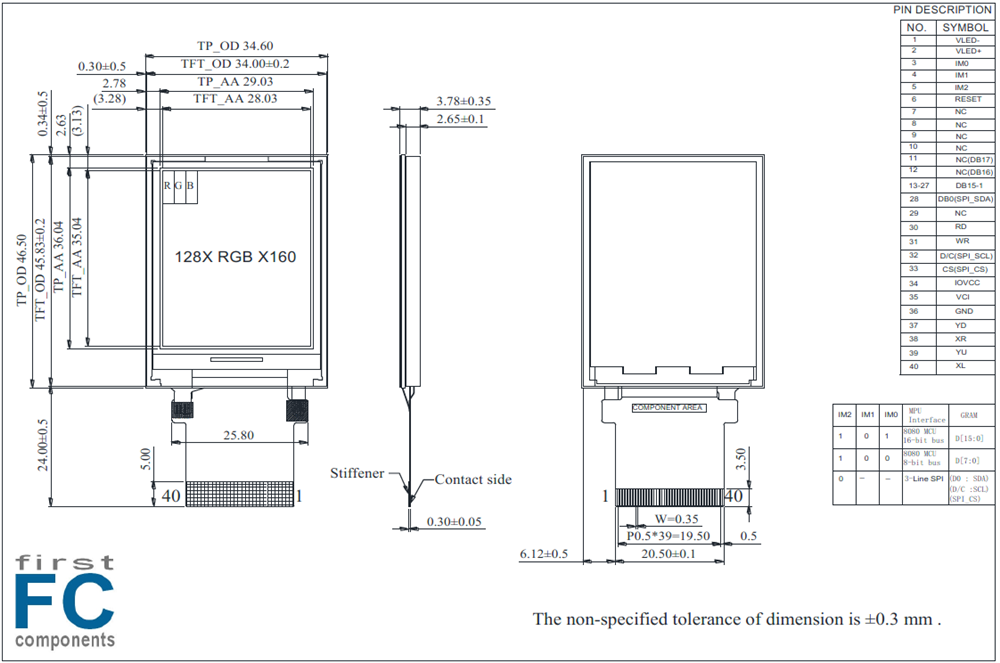

DRAWING



INTERFACE



PinSymbolI/OFunction
1 VLED- P Back light cathode
2 VLED P Back light anode

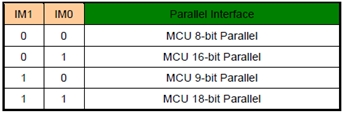

3 IM0 I - MCU Parallel Interface Type Selection
-If Not Used, Please Fix this Pin at VDDI or DGND Level.
4 IM1
5 IM2 I MCU Parallel Interface Bus and Serial Interface select
IM2='1', Parallel Interface
IM2='0', Serial Interface
6 RESET P Reset signal
7-12 NC - No Connect
13-28 DB15-DB0(SPI_SDA) I/O DB15:0] are used as MCU parallel interface data bus.
-DBis the serial input/output signal in serial interface mode.
-In serial interface, DB15:1] are not used and should be fixed at VDDI or DGND level.
29 NC - No Connect
30 RD I Read Enable in 8080 MCU Parallel Interface.
-If not used, please fix this pin at VDDI or DGND level.
31 WR I Serial clock
-Write Enable in MCU Parallel Interface.
-If not used, please fix this pin at VDDI or DGND level.
32 D/C(SPI_SCL) I -Display data/command Selection Pin in MCU Interface.
-D/CX='1': Display Data or Parameter.
-D/CX='0': Command Data.
-In Serial Interface, this is used as SCL.
-If not used, please fix this pin at VDDI or DGND level.
33 CS(SPI_CS) I Chip enable
34 IOVCC P Interface Operation Voltage
35 VCI P Analog Supply Voltage
36 GND P Ground
37 YD - Bottom eletrode
38 XR - Right electrode
39 YU - Top electrode
40 XL - Left electrode



SKU: WF18-128160FD#001-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€10.70
€7.80
€7.00
€6.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€10.70 excl tax

DESCRIPTION



Full color 128x160 TFT-LCD display module, diagonal size 1.77 inch with Resistive touch panel. This module is built in with ST7735S IC; it supports 8080 8/16-bit parallel and serial 3-wire SPI interface. Active area size of 28.03 x 35.04 mm; it's supply voltage range from for analog is 2.5V to 4.8V.

It is a portrait mode LCD module, if you would like to use it as landscape mode, please contact us for more technical support. This 1.77” TFT LCD module is featured with brightness up to 350 cd/m2(typical value). Operating temperatures from -20℃ to 70℃; storage temperatures from -30℃ to 80℃.



DRAWING



INTERFACE



PinSymbolI/OFunction
1 VLED- P Back light cathode
2 VLED P Back light anode
3 IM0 I - MCU Parallel Interface Type Selection
-If Not Used, Please Fix this Pin at VDDI or DGND Level.
4 IM1
5 IM2 I MCU Parallel Interface Bus and Serial Interface select
IM2='1', Parallel Interface
IM2='0', Serial Interface
6 RESET P Reset signal
7-12 NC - No Connect
13-28 DB15-DB0(SPI_SDA) I/O DB15:0] are used as MCU parallel interface data bus.
-DBis the serial input/output signal in serial interface mode.
-In serial interface, DB15:1] are not used and should be fixed at VDDI or DGND level.
29 NC - No Connect
30 RD I Read Enable in 8080 MCU Parallel Interface.
-If not used, please fix this pin at VDDI or DGND level.
31 WR I Serial clock
-Write Enable in MCU Parallel Interface.
-If not used, please fix this pin at VDDI or DGND level.
32 D/C(SPI_SCL) I -Display data/command Selection Pin in MCU Interface.
-D/CX='1': Display Data or Parameter.
-D/CX='0': Command Data.
-In Serial Interface, this is used as SCL.
-If not used, please fix this pin at VDDI or DGND level.
33 CS(SPI_CS) I Chip enable
34 IOVCC P Interface Operation Voltage
35 VCI P Analog Supply Voltage
36 GND P Ground
37 YD - Bottom eletrode
38 XR - Right electrode
39 YU - Top electrode
40 XL - Left electrode



Products specifications
Brand Winstar
Size 1.77"
Resolution 128x160
Active Area (mm) 28.03x35.04
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC Controller ST7735S
View Angle TN
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 1.77"
Resolution 128x160
Active Area (mm) 28.03x35.04
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC Controller ST7735S
View Angle TN
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
