WF24KTLAJDNN0#

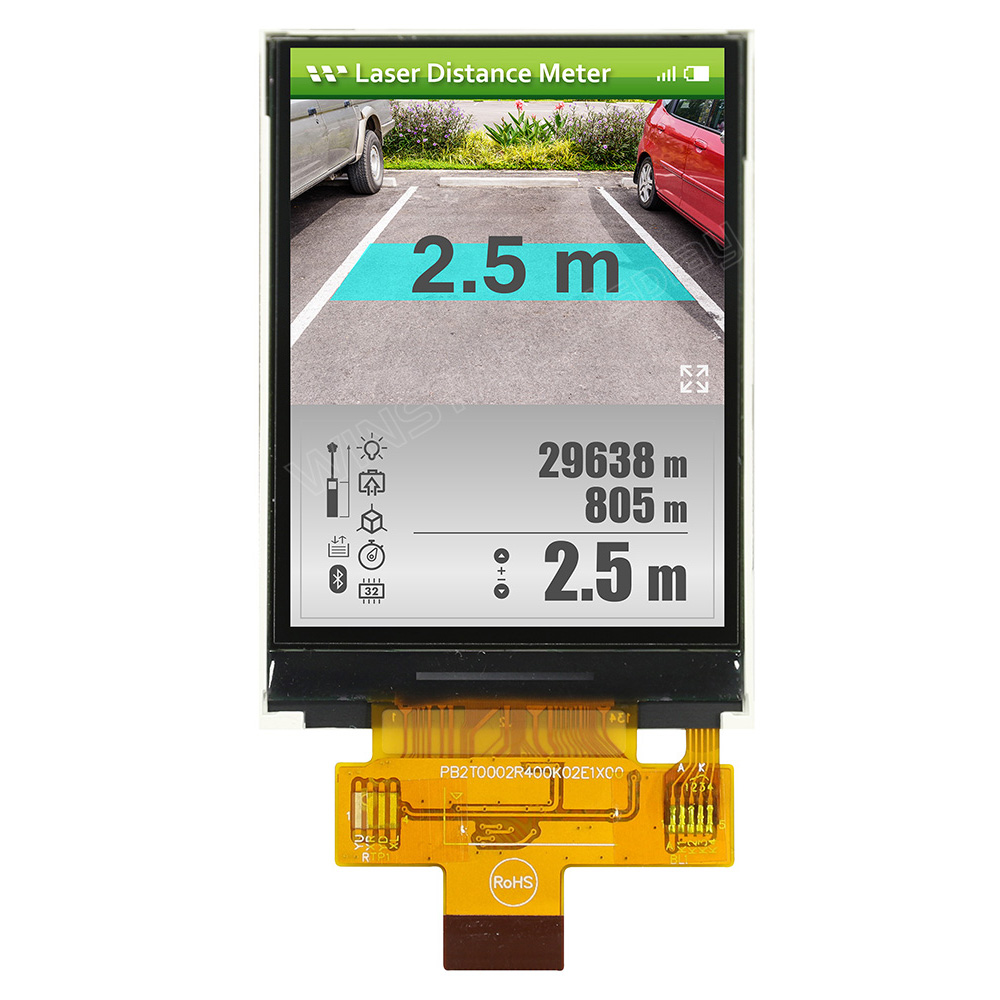

TFT 2.4" 240x320 Portrait LCD Panel, Interface MCU (SPI) IC Himax8347-I, 500cd/m², No touch

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

2.4 inch TFT-LCD module with resolution 240x320 pixels. This module is built in with Himax8347-I IC; it supports 4-wire SPI interface, supply voltage for analog (VDD) range from 2.5V to 3.0V. This module is having Glare surface panel, View Direction 6 o'clock, Gray scale inversion 12 o'clock, contrast ratio 500:1.

This TFT-LCD module is Portrait mode with brightness 500 nits (typical value). The module also is available for Resistive Touch Screen (RTP) optional. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.



DRAWING

SPECIFICATIONS



Interface

NOSymbolFunction
1 GND Ground
2 LED+ Anode of LED backlight.
3 LED- Cathode of LED backlight.
4 GND Ground
5 VDD Power supply(TYP:2.8V).
6 RESET System reset pin.
7 SDA Serial data input pin and output pin(SDA) in serial bus system interface I.
Serial data input pin (SDI) in serial bus system interface II. The data is inputted on the rising edge of the SCL signal.
If not used, please let it open or connected to VSSD.
8 SCL (NWR) Write enable pin I80 parallel bus system interface.
(SCL) server as serial data clock in serial bus system interface when IFSEL=0.
Fix it to IOVCC or VSSD level when not used.
9 CS Chip select signal.
Low: chip can be accessed;
High: chip cannot be accessed. Must be connected to VSSD if not in use.
10 RS Command / parameter or display data selection pin
11 GND Ground
12 SDO Serial data output pin (SDO) in serial bus system interface II.
If not used, please open this pin.
13 TE Tearing effect output.
If not used please open this pin
14 IM3 serial interface I  /  serial interface II
15 GND Ground
16 NC No connect
17 NC No connect
18 NC No connect
19 NC No connect
20 GND Ground



General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72(W) × 60.26(H) × 2.25(D) mm
Active area 36.72 × 48.96 mm
Dot pitch 0.153 × 0.153 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Interface SPI
Aspect Ratio Portrait
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VDD － 2.5   3.0 V
Supply Current For LCM IDD － － 5 7.5 mA
SKU: WF24-240320KS#000-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€16.30
€11.90
€10.40
€10.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€16.30 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

2.4 inch TFT-LCD module with resolution 240x320 pixels. This module is built in with Himax8347-I IC; it supports 4-wire SPI interface, supply voltage for analog (VDD) range from 2.5V to 3.0V. This module is having Glare surface panel, View Direction 6 o'clock, Gray scale inversion 12 o'clock, contrast ratio 500:1.

This TFT-LCD module is Portrait mode with brightness 500 nits (typical value). The module also is available for Resistive Touch Screen (RTP) optional. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.



DRAWING

SPECIFICATIONS



Interface

NOSymbolFunction
1 GND Ground
2 LED+ Anode of LED backlight.
3 LED- Cathode of LED backlight.
4 GND Ground
5 VDD Power supply(TYP:2.8V).
6 RESET System reset pin.
7 SDA Serial data input pin and output pin(SDA) in serial bus system interface I.
Serial data input pin (SDI) in serial bus system interface II. The data is inputted on the rising edge of the SCL signal.
If not used, please let it open or connected to VSSD.
8 SCL (NWR) Write enable pin I80 parallel bus system interface.
(SCL) server as serial data clock in serial bus system interface when IFSEL=0.
Fix it to IOVCC or VSSD level when not used.
9 CS Chip select signal.
Low: chip can be accessed;
High: chip cannot be accessed. Must be connected to VSSD if not in use.
10 RS Command / parameter or display data selection pin
11 GND Ground
12 SDO Serial data output pin (SDO) in serial bus system interface II.
If not used, please open this pin.
13 TE Tearing effect output.
If not used please open this pin
14 IM3 serial interface I  /  serial interface II
15 GND Ground
16 NC No connect
17 NC No connect
18 NC No connect
19 NC No connect
20 GND Ground



General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72(W) × 60.26(H) × 2.25(D) mm
Active area 36.72 × 48.96 mm
Dot pitch 0.153 × 0.153 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Interface SPI
Aspect Ratio Portrait
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VDD － 2.5   3.0 V
Supply Current For LCM IDD － － 5 7.5 mA
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (SPI)
Display IC HX8347-I
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 20
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (SPI)
Display IC HX8347-I
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 20
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
