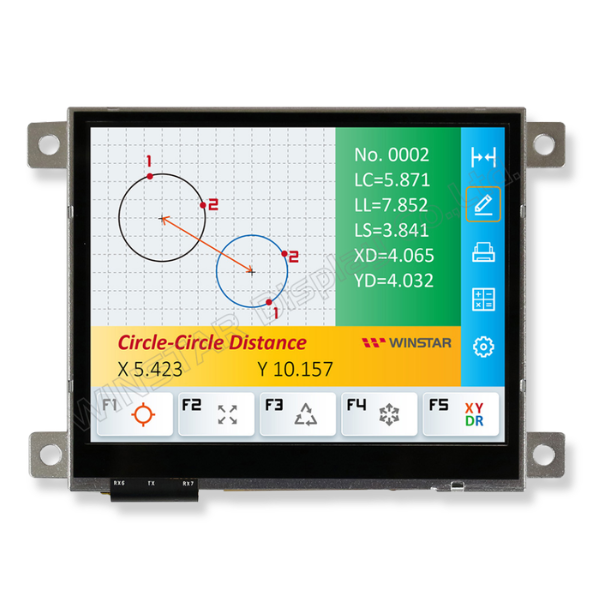

WF35-320240XP#0P7-FC

TFT 3.5" 320x240, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 400cd/m², Wide View Angle (IPS), Frame, Capacitive touch panel I2C interface (GG, ILI2130 IC)

DESCRIPTION

The WF35-320240XP#0P7-FC is a 3.5-inch TFT LCD display module with a control board, featuring IPS panel technology for superior color accuracy and wide viewing angles of 80° in all directions. With a resolution of 320x240 pixels and an aspect ratio of 4:3, this module includes an SSD1963 controller board and supports both 8080 family MPU 8-bit and 16-bit interface options. It utilizes the I2C read/write protocol via the 36-pin connector, with pins 33 to 36 pre-defined for backlight supply, eliminating the need for extra backlight circuit design.

Equipped with a Projected Capacitive Touch Screen, the WF35-320240XP#0P7-FC integrates the ILI2130 IC, supporting the I2C interface and 5-point touch functionality. The module also features frame-through holes for easy mounting and usage.

Operating Conditions:

  • Operating temperature: -20℃ to +70℃
  • Storage temperature: -30℃ to +80℃
  • LCM power supply: 3.0V to 3.3V (typical: 3.1V)
  • Brightness: 400 nits
  • Contrast ratio: 800:1 (typical value)

Available Options:

  • Without Touch Panel: Model WF35-320240XP#0P4-FC for non-touch applications.
  • Resistive Touch Panel: Model WF35-320240XP#0P5-FC, supporting a 4-line signal (X1, Y1, X2, Y2) input.

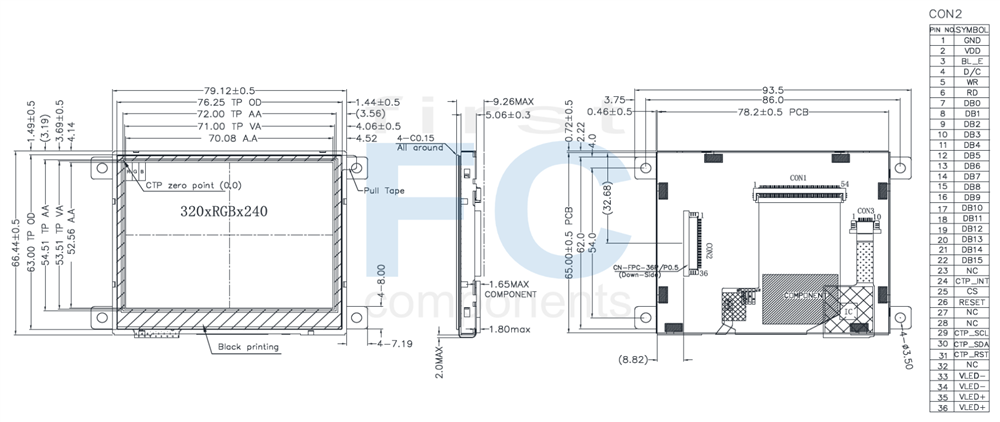

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 3.5 inch
Dot Matrix 320 × RGB × 240(TFT) dots
Module dimension 93.5 × 66.44 × 9.26 mm
Active area 70.08 × 52.56 mm
Dot pitch 0.073 × 0.219 mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 4:3
Controller IC SSD1963
Interface Digital 8080 family MPU 8bit/16bit
Backlight Type LED, Normally White
PCAP IC ILI2130 or equivalent
PCAP Interface I2C
PCAP FW Version 0x07.0x00.0x00.0x00.0x00.0x35.0x5A.0x01
PCAP Resolution 16384*16384
Touchscreen Projected capacitive touchscreen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.1 3.3 V
Supply Current For LCM IDD － 176 265 mA



Interface

LCM PIN Definition (CON2)

PinSymbolFunction
1 GND System ground pin of the IC.Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 DB8 Data bus (When select 8bits Mode, this pin is NC)
16 DB9 Data bus (When select 8bits Mode, this pin is NC)
17 DB10 Data bus (When select 8bits Mode, this pin is NC)
18 DB11 Data bus (When select 8bits Mode, this pin is NC)
19 DB12 Data bus (When select 8bits Mode, this pin is NC)
20 DB13 Data bus (When select 8bits Mode, this pin is NC)
21 DB14 Data bus (When select 8bits Mode, this pin is NC)
22 DB15 Data bus (When select 8bits Mode, this pin is NC)
23 NC No connect
24 CTP_INT CTP_External interrupt to the host
25 CS Chip select
26 RESET Hardware reset
27-28 NC No connect
29 CTP_SCL CTP_I2C clock input
30 CTP_SDA CTP_I2C data input and output
31 CTP_RST CTP_External Reset, Low is active
32 NC No connect
33-34 VLED- VLED- for B/L LED inverter (GND)
35-36 VLED+ VLED+ for B/L LED inverter (+3.3V)
SKU: WF35-320240XP#0P7-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€59.60
€53.60
€50.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€59.60 excl tax

DESCRIPTION

The WF35-320240XP#0P7-FC is a 3.5-inch TFT LCD display module with a control board, featuring IPS panel technology for superior color accuracy and wide viewing angles of 80° in all directions. With a resolution of 320x240 pixels and an aspect ratio of 4:3, this module includes an SSD1963 controller board and supports both 8080 family MPU 8-bit and 16-bit interface options. It utilizes the I2C read/write protocol via the 36-pin connector, with pins 33 to 36 pre-defined for backlight supply, eliminating the need for extra backlight circuit design.

Equipped with a Projected Capacitive Touch Screen, the WF35-320240XP#0P7-FC integrates the ILI2130 IC, supporting the I2C interface and 5-point touch functionality. The module also features frame-through holes for easy mounting and usage.

Operating Conditions:

  • Operating temperature: -20℃ to +70℃
  • Storage temperature: -30℃ to +80℃
  • LCM power supply: 3.0V to 3.3V (typical: 3.1V)
  • Brightness: 400 nits
  • Contrast ratio: 800:1 (typical value)

Available Options:

  • Without Touch Panel: Model WF35-320240XP#0P4-FC for non-touch applications.
  • Resistive Touch Panel: Model WF35-320240XP#0P5-FC, supporting a 4-line signal (X1, Y1, X2, Y2) input.


DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 3.5 inch
Dot Matrix 320 × RGB × 240(TFT) dots
Module dimension 93.5 × 66.44 × 9.26 mm
Active area 70.08 × 52.56 mm
Dot pitch 0.073 × 0.219 mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 4:3
Controller IC SSD1963
Interface Digital 8080 family MPU 8bit/16bit
Backlight Type LED, Normally White
PCAP IC ILI2130 or equivalent
PCAP Interface I2C
PCAP FW Version 0x07.0x00.0x00.0x00.0x00.0x35.0x5A.0x01
PCAP Resolution 16384*16384
Touchscreen Projected capacitive touchscreen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.1 3.3 V
Supply Current For LCM IDD － 176 265 mA



Interface

LCM PIN Definition (CON2)

PinSymbolFunction
1 GND System ground pin of the IC.Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 DB8 Data bus (When select 8bits Mode, this pin is NC)
16 DB9 Data bus (When select 8bits Mode, this pin is NC)
17 DB10 Data bus (When select 8bits Mode, this pin is NC)
18 DB11 Data bus (When select 8bits Mode, this pin is NC)
19 DB12 Data bus (When select 8bits Mode, this pin is NC)
20 DB13 Data bus (When select 8bits Mode, this pin is NC)
21 DB14 Data bus (When select 8bits Mode, this pin is NC)
22 DB15 Data bus (When select 8bits Mode, this pin is NC)
23 NC No connect
24 CTP_INT CTP_External interrupt to the host
25 CS Chip select
26 RESET Hardware reset
27-28 NC No connect
29 CTP_SCL CTP_I2C clock input
30 CTP_SDA CTP_I2C data input and output
31 CTP_RST CTP_External Reset, Low is active
32 NC No connect
33-34 VLED- VLED- for B/L LED inverter (GND)
35-36 VLED+ VLED+ for B/L LED inverter (+3.3V)
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Preferred
