WF35-320240YD#BPW0-FC

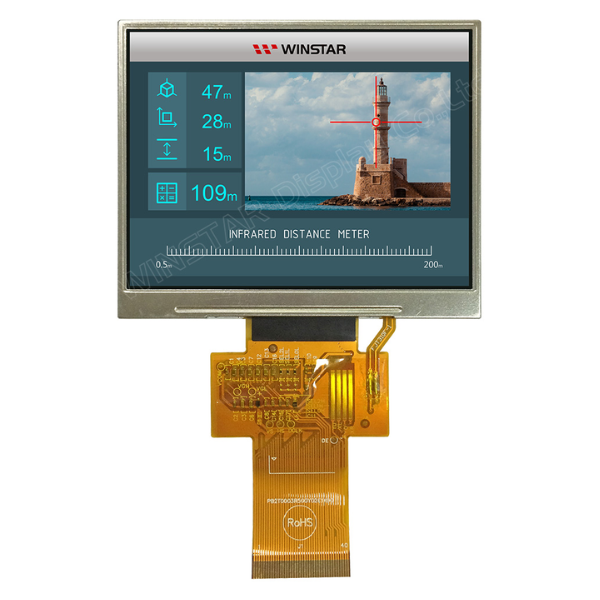

Picture of WF35-320240YD#BPW0-FC Picture of WF35-320240YD#BPW0-FC
TFT 3.5" 320x240 LCD Panel, Interface RGB, Unified cable (40pin), 500cd/m², Wide view angle (IPS), Super Extended Temperature, No touch

DESCRIPTION

TFT 3.5" is a IPS transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module. It is usually designed for industrial application and this module follows RoHs.

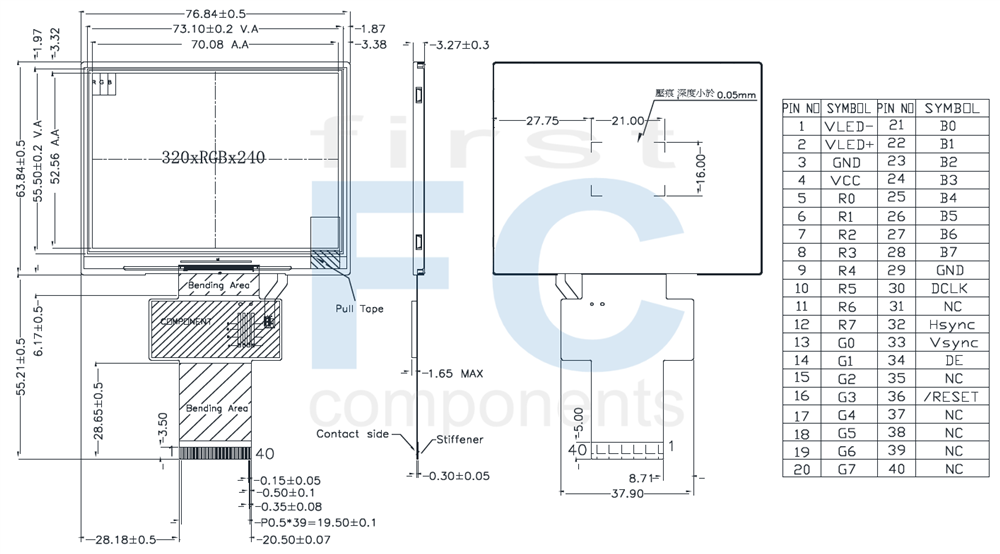

DRAWING



General Specifications

ItemDimensionUnit
Size 3.5 inch
Dot Matrix 320xRGBx240(TFT) dots
Module dimension 76.84(W)x63.84(H)x3.27(D) mm
Active area 70.08x52.56 mm
Dot pitch 0.073x0.219 mm
LCD type TFT, Normally black, Transmissive
View Direction Wide View
Driver IC ST7272A or equivalent
Interface 24-bit RGB
Aspect Ratio 4:3
Backlight Type LED, Normally White
With/Without TP Without TP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 - +85 °C
Storage Temperature TST -40 - +85 °C



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC - 20   mA



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Ground
4 VCC Power Supply
5 R0 Data bus
6 R1 Data bus
7 R2 Data bus
8 R3 Data bus
9 R4 Data bus
10 R5 Data bus
11 R6 Data bus
12 R7 Data bus
13 G0 Data bus
14 G1 Data bus
15 G2 Data bus
16 G3 Data bus
17 G4 Data bus
18 G5 Data bus
19 G6 Data bus
20 G7 Data bus
21 B0 Data bus
22 B1 Data bus
23 B2 Data bus
24 B3 Data bus
25 B4 Data bus
26 B5  Data bus
27 B6  Data bus
28 B7  Data bus
29 GND Ground
30 DCLK  Dot-clock signal and oscillator source
31 NC  No connect
32  HSYNC Horizontal sync signal, default is negative polarity.
33 VSYNC  Vertical sync signal, default is negative polarity.
34 DE  Data input enable. Display access is enabled when DE is "H".
35 NC  No connect
36 /RESET  Hardware reset
37~40 NC  No connect
SKU: WF35-320240YD#BPW0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€20.20
€16.20
€13.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€20.20 excl tax

DESCRIPTION

TFT 3.5" is a IPS transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module. It is usually designed for industrial application and this module follows RoHs.



DRAWING



General Specifications

ItemDimensionUnit
Size 3.5 inch
Dot Matrix 320xRGBx240(TFT) dots
Module dimension 76.84(W)x63.84(H)x3.27(D) mm
Active area 70.08x52.56 mm
Dot pitch 0.073x0.219 mm
LCD type TFT, Normally black, Transmissive
View Direction Wide View
Driver IC ST7272A or equivalent
Interface 24-bit RGB
Aspect Ratio 4:3
Backlight Type LED, Normally White
With/Without TP Without TP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 - +85 °C
Storage Temperature TST -40 - +85 °C



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC - 20   mA



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Ground
4 VCC Power Supply
5 R0 Data bus
6 R1 Data bus
7 R2 Data bus
8 R3 Data bus
9 R4 Data bus
10 R5 Data bus
11 R6 Data bus
12 R7 Data bus
13 G0 Data bus
14 G1 Data bus
15 G2 Data bus
16 G3 Data bus
17 G4 Data bus
18 G5 Data bus
19 G6 Data bus
20 G7 Data bus
21 B0 Data bus
22 B1 Data bus
23 B2 Data bus
24 B3 Data bus
25 B4 Data bus
26 B5  Data bus
27 B6  Data bus
28 B7  Data bus
29 GND Ground
30 DCLK  Dot-clock signal and oscillator source
31 NC  No connect
32  HSYNC Horizontal sync signal, default is negative polarity.
33 VSYNC  Vertical sync signal, default is negative polarity.
34 DE  Data input enable. Display access is enabled when DE is "H".
35 NC  No connect
36 /RESET  Hardware reset
37~40 NC  No connect
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -30~85
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -30~85
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
