WF35LTIACDNTZ#

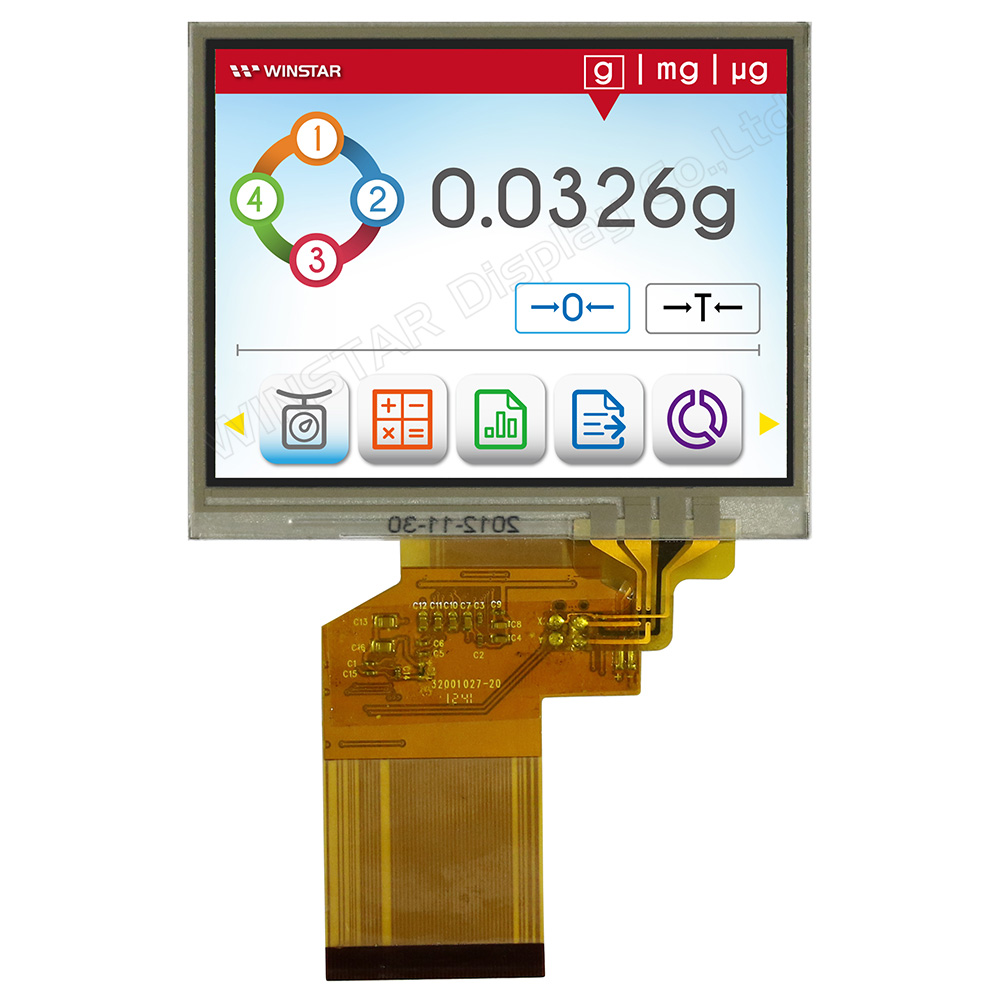

Picture of WF35LTIACDNTZ# Picture of WF35LTIACDNTZ#
TFT 3.5" 320x240 LCD Panel, Interface RGB, 300cd/m², Resistive touch panel (LC)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

3.5 inch diagonal full color QVGA 320x 240 TFT LCD screen display. For flexibility, this 3.5-inch full color QVGA 320x240 TFT has lots of different interfaces: 8-bit/9-bit/16-bit/18-bit parallel (8080 or 6800); 16-bit or 18-bit "DOTCLK" RGB; 3- or 4-wire SPI is optional. For easy connection to your host, the FFC/FPC tail mates with easy-to-find ZIF sockets.

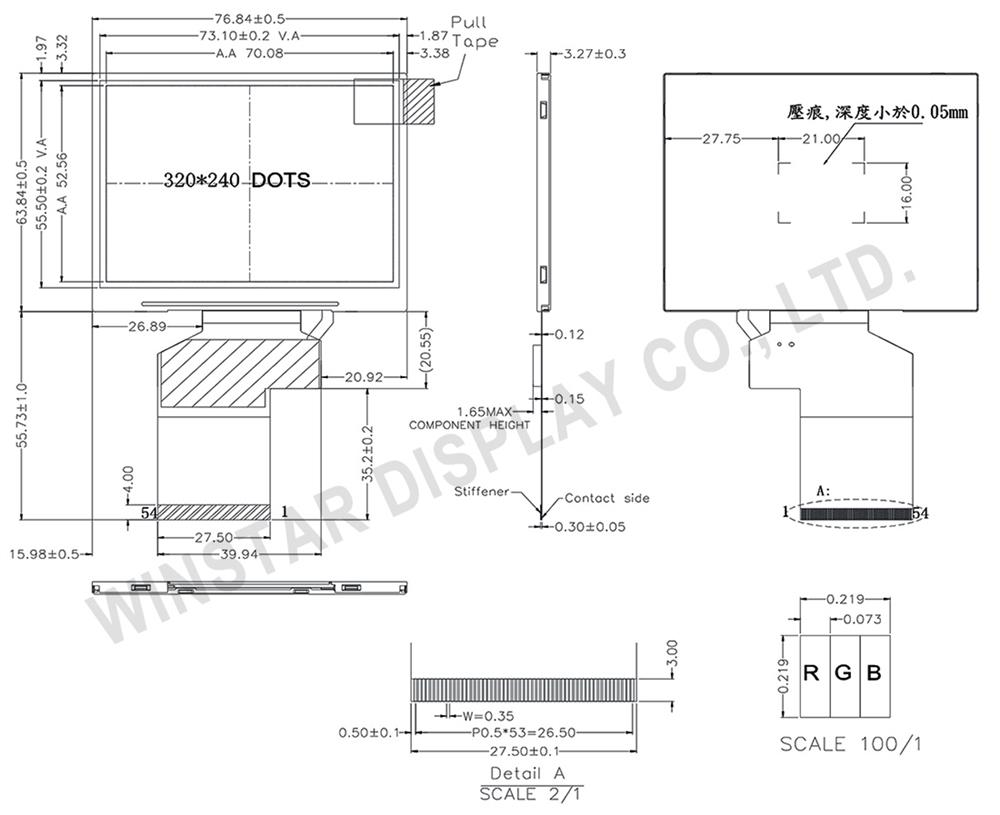

DRAWING

3.5 TFT, 3.5 inch TFT LCD Screen Display, 3.5 inch LCD Display, Display 3.5 - WF35LTIACDNN0

INTERFACE



PinSymbolFunction
1~2 LED- Power for LED backlight cathode
3~4 LED+ Power for LED backlight anode
5~7 NC No connect
8 /RESET Hardware reset
9 SPENA Chip select pin of serial interface
10 SPCLK Clock pin of serial interface
11 SPDAT Data input pin in serial mode
12~19 B0~B7 Data bus
20~27 G0~G7 Data bus
28~35 R0~R7 Data bus
36 HSYNC Line synchronization signal
37 VSYNC Frame synchronization signal
38 DCLK Dot-clock signal and oscillator source
39~40 NC No connect
41~42 VCC Power Supply
43~47 NC No connect
48~50 SEL2~SEL0 Input pin to select input interface mode
51 NC No connect
52 DE Display enable pin from controller. Internal pull high. Connect to VCCIO or floating if not used
53 DGND System ground pin of the IC.  Connect to system ground.
54 AVSS Grounding for analog circuit Connect to system ground
SKU: WF35-320240LD#Z01-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€24.70
€19.80
€17.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€24.70 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

3.5 inch diagonal full color QVGA 320x 240 TFT LCD screen display. For flexibility, this 3.5-inch full color QVGA 320x240 TFT has lots of different interfaces: 8-bit/9-bit/16-bit/18-bit parallel (8080 or 6800); 16-bit or 18-bit "DOTCLK" RGB; 3- or 4-wire SPI is optional. For easy connection to your host, the FFC/FPC tail mates with easy-to-find ZIF sockets.



DRAWING

3.5 TFT, 3.5 inch TFT LCD Screen Display, 3.5 inch LCD Display, Display 3.5 - WF35LTIACDNN0

INTERFACE



PinSymbolFunction
1~2 LED- Power for LED backlight cathode
3~4 LED+ Power for LED backlight anode
5~7 NC No connect
8 /RESET Hardware reset
9 SPENA Chip select pin of serial interface
10 SPCLK Clock pin of serial interface
11 SPDAT Data input pin in serial mode
12~19 B0~B7 Data bus
20~27 G0~G7 Data bus
28~35 R0~R7 Data bus
36 HSYNC Line synchronization signal
37 VSYNC Frame synchronization signal
38 DCLK Dot-clock signal and oscillator source
39~40 NC No connect
41~42 VCC Power Supply
43~47 NC No connect
48~50 SEL2~SEL0 Input pin to select input interface mode
51 NC No connect
52 DE Display enable pin from controller. Internal pull high. Connect to VCCIO or floating if not used
53 DGND System ground pin of the IC.  Connect to system ground.
54 AVSS Grounding for analog circuit Connect to system ground
Date Notice Link/Description
2024/08/26 EOL End production of Innolux TN Panel for WF35-320240L/M/P/Q/Y Families



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 54
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 54
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
