WF39-480128CD#001-FC

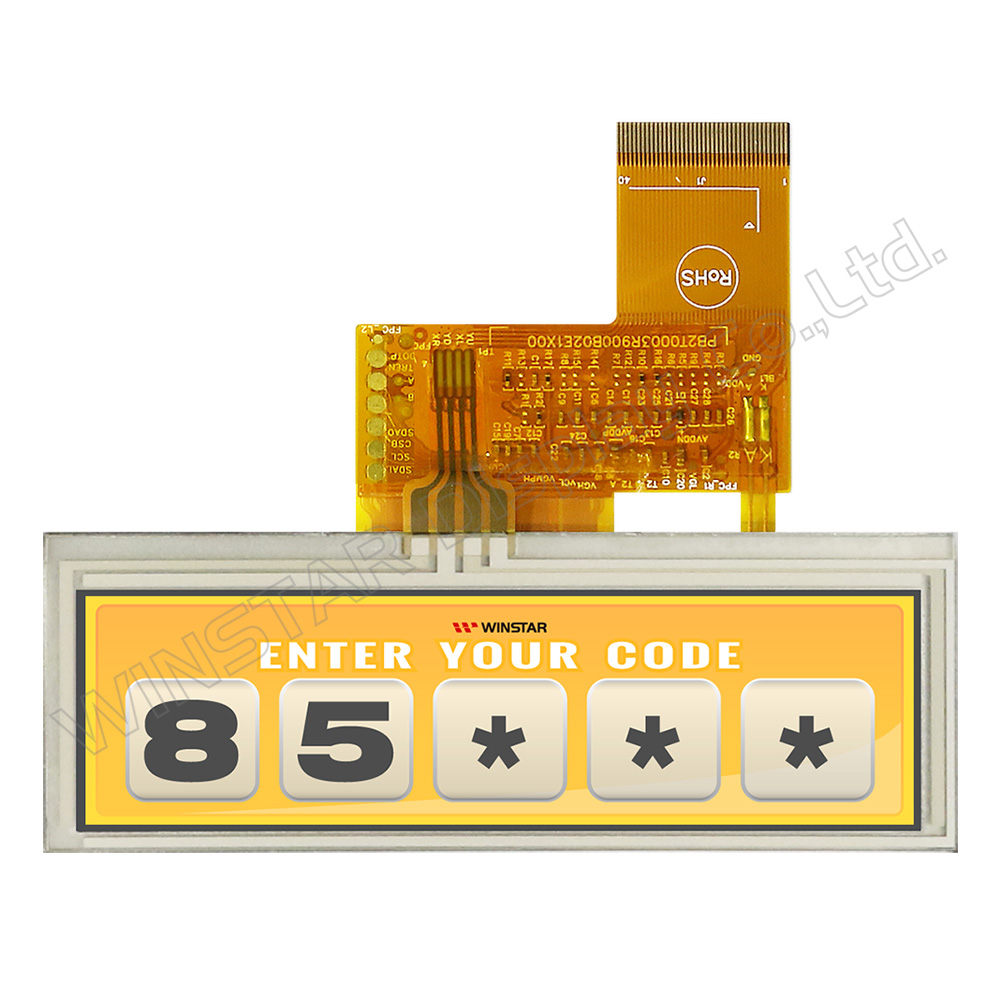

Picture of WF39-480128CD#001-FC Picture of WF39-480128CD#001-FC
TFT 3.9'' 480x128, Bar Type, Interface RGB, 350cd/m², View direction 12H, Resistive touch panel

DESCRIPTION

3.9 inch Top View Bar TFT module with Resistive Touch Screen (RTP) which featured with 480x128 dots resolution. It is built in with Driver IC HX8278-A, it communicates via 24-bit RGB interface, 3.3V (typical) power supply voltage; supports SYNC mode or DE mode, default SYNC mode. Its brightness is 350 nits, contrast ratio of 500, view direction 12 o'clock (top view direction), gray scale inversion direction 6 o'clock, and glare surface glass. Operating at temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. We also offer Projected capacitive touch panel (PCAP) and High Brightness version optional.

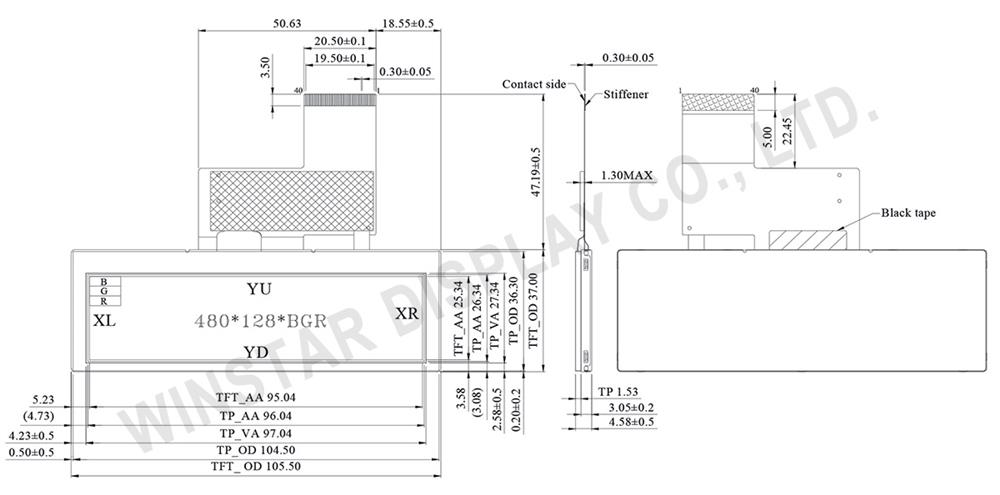

DRAWING

3.9" 480x128 Top View Direction Stretched RTP TFT LCD - WF39CTIASDNT0



SPECIFICATIONS



Interface

LCM PIN Definition

No.SymbolDescription
1 VLED- Backlight LED Cathode
2 VLED+ Backlight LED Anode.
3 GND System Ground
4 VCC Power supply for logic operation
5~12 R0~R7 Data bus
13~20 G0~G7 Data bus
21~28 B0~B7 Data bus
29 GND System Ground
30 DCLK Pixel clock signal
31 DISP Display on/off control
32 HSYNC Horizontal Sync signal
33 VSYNC Vrtical Sync signal
34 NC No connection (Option DE)
35 NC No connection
36 GND System Ground
37 XL Left electrode
38 YU Top electrode
39 XR Right electrode
40 YD Bottom electrode



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 ×128 × RGB (TFT) dots
Module dimension 105.5(W) × 37.0(H) × 4.58(D) mm
Active area 95.04 × 25.34 mm
Dot pitch 0.066(W) × 0.198(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio Bar Type
TFT Driver IC HX8278-A or equivalent
TFT Interface RGB-24BIT
Backlight Type LED, Normally White
Touch Screen With Resistive Touch Screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC - 3.0 3.3 3.6 V
Supply Current For LCM ICC - - 15 25 mA


SKU: WF39-480128CD#001-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€35.20
€28.20
€25.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€35.20 excl tax

DESCRIPTION

3.9 inch Top View Bar TFT module with Resistive Touch Screen (RTP) which featured with 480x128 dots resolution. It is built in with Driver IC HX8278-A, it communicates via 24-bit RGB interface, 3.3V (typical) power supply voltage; supports SYNC mode or DE mode, default SYNC mode. Its brightness is 350 nits, contrast ratio of 500, view direction 12 o'clock (top view direction), gray scale inversion direction 6 o'clock, and glare surface glass. Operating at temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. We also offer Projected capacitive touch panel (PCAP) and High Brightness version optional.



DRAWING

3.9" 480x128 Top View Direction Stretched RTP TFT LCD - WF39CTIASDNT0



SPECIFICATIONS



Interface

LCM PIN Definition

No.SymbolDescription
1 VLED- Backlight LED Cathode
2 VLED+ Backlight LED Anode.
3 GND System Ground
4 VCC Power supply for logic operation
5~12 R0~R7 Data bus
13~20 G0~G7 Data bus
21~28 B0~B7 Data bus
29 GND System Ground
30 DCLK Pixel clock signal
31 DISP Display on/off control
32 HSYNC Horizontal Sync signal
33 VSYNC Vrtical Sync signal
34 NC No connection (Option DE)
35 NC No connection
36 GND System Ground
37 XL Left electrode
38 YU Top electrode
39 XR Right electrode
40 YD Bottom electrode



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 ×128 × RGB (TFT) dots
Module dimension 105.5(W) × 37.0(H) × 4.58(D) mm
Active area 95.04 × 25.34 mm
Dot pitch 0.066(W) × 0.198(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio Bar Type
TFT Driver IC HX8278-A or equivalent
TFT Interface RGB-24BIT
Backlight Type LED, Normally White
Touch Screen With Resistive Touch Screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC - 3.0 3.3 3.6 V
Supply Current For LCM ICC - - 15 25 mA


Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Display Interface RGB
Display IC Controller No
View Angle TN
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Display Interface RGB
Display IC Controller No
View Angle TN
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
