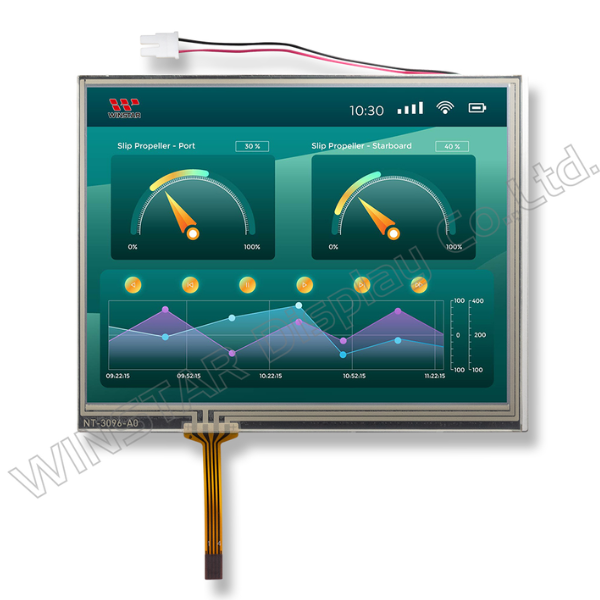

WF57-640480A48#A01-FC

Picture of WF57-640480A48#A01-FC Picture of WF57-640480A48#A01-FC
TFT 5.7" 640X480, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8bit), 350cd/m², Anti-Glare, Resistive touch panel

DESCRIPTION

The WF57-640480A48#A01-FC is a 5.7 inch TFT-LCD display module featuring a control board and a resistive touch panel (RTP). With a resolution of 640 x 480 dots and a 4:3 aspect ratio, it offers a high-quality visual experience. The optimal viewing angle is at 6 o'clock, while grayscale inversion occurs at 12 o'clock.

Equipped with the SSD1963 IC control board, supporting the MCU (8080+MPU) interface, this module ensures strong compatibility and ease of integration into various applications. The resistive touch panel enhances usability and simplifies product design, making it suitable for industrial control, medical equipment, and testing equipment.

The WF57-640480A48#A01-FC measures 125.0 x 98.8 x 11.25 mm, with an effective display area of 115.2 x 86.4 mm. It operates within a temperature range of -20℃ to +70℃, with stability maintained in storage between -30℃ to +80℃. The supply voltage ranges from 3.0V to 3.6V, with a typical value of 3.3V.

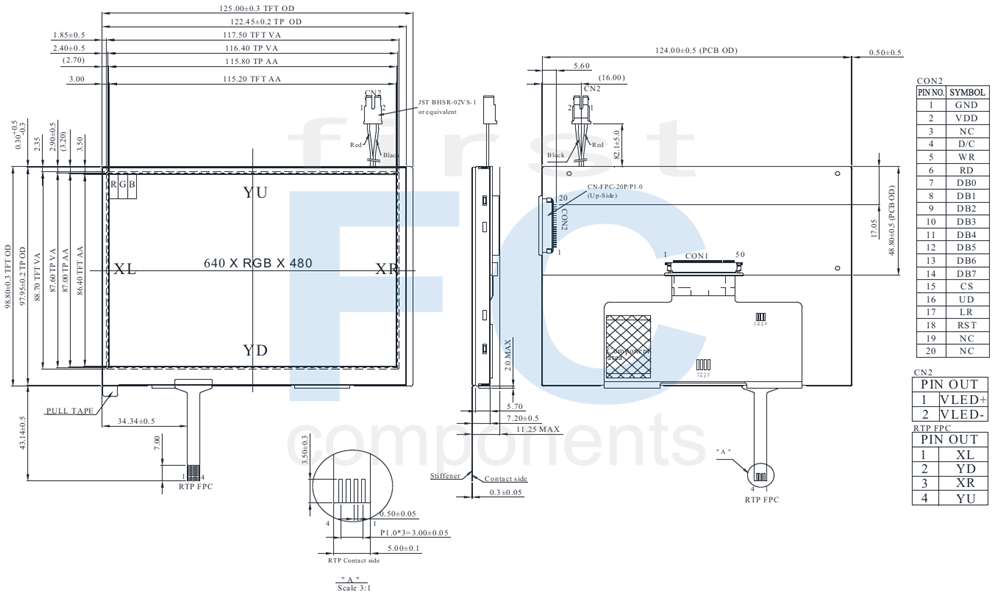

DRAWING

SPECIFICATIONS

Interface Pin Function

LCM PIN Definition

Pin No.SymbolDescription
1 GND System ground pin of the IC. Connect to System ground.
2 VDD Power Supply : +3.3V
3 NC No connection
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 CS Chip select
16 UD Up/down selection
17 LR Left /right selection
18 RST Hardware reset
19 NC No connection
20 NC No connection



General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 640 x RGB x 480(TFT) dots
Module dimension 125.0 x 98.8 x 11.25(MAX) mm
Active area 115.2 x 86.4 mm
Pixel pitch 0.18 x 0.18 mm
LCD type TFT, Normally White ,Transmissive
ViewDirection 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio 4:3
Controller IC SSD1963
Interface Digital 8080 family MPU
Driver IC HX8250+HX8678
Backlight Type LED,Normally White
Touch Panel Resistive Touch Panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 3.0 3.3 3.6 V
Supply Current For LCM IDD － － 9.0 － mA
SKU: WF57-640480A48#A01-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€94.40
€85.00
€69.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€94.40 excl tax

DESCRIPTION

The WF57-640480A48#A01-FC is a 5.7 inch TFT-LCD display module featuring a control board and a resistive touch panel (RTP). With a resolution of 640 x 480 dots and a 4:3 aspect ratio, it offers a high-quality visual experience. The optimal viewing angle is at 6 o'clock, while grayscale inversion occurs at 12 o'clock.

Equipped with the SSD1963 IC control board, supporting the MCU (8080+MPU) interface, this module ensures strong compatibility and ease of integration into various applications. The resistive touch panel enhances usability and simplifies product design, making it suitable for industrial control, medical equipment, and testing equipment.

The WF57-640480A48#A01-FC measures 125.0 x 98.8 x 11.25 mm, with an effective display area of 115.2 x 86.4 mm. It operates within a temperature range of -20℃ to +70℃, with stability maintained in storage between -30℃ to +80℃. The supply voltage ranges from 3.0V to 3.6V, with a typical value of 3.3V.



DRAWING

SPECIFICATIONS

Interface Pin Function

LCM PIN Definition

Pin No.SymbolDescription
1 GND System ground pin of the IC. Connect to System ground.
2 VDD Power Supply : +3.3V
3 NC No connection
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 CS Chip select
16 UD Up/down selection
17 LR Left /right selection
18 RST Hardware reset
19 NC No connection
20 NC No connection



General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 640 x RGB x 480(TFT) dots
Module dimension 125.0 x 98.8 x 11.25(MAX) mm
Active area 115.2 x 86.4 mm
Pixel pitch 0.18 x 0.18 mm
LCD type TFT, Normally White ,Transmissive
ViewDirection 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio 4:3
Controller IC SSD1963
Interface Digital 8080 family MPU
Driver IC HX8250+HX8678
Backlight Type LED,Normally White
Touch Panel Resistive Touch Panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 3.0 3.3 3.6 V
Supply Current For LCM IDD － － 9.0 － mA
Products specifications
Brand Winstar
Size 5.7"
Resolution 640x480
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 20
Pin Pitch 1mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.7"
Resolution 640x480
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 20
Pin Pitch 1mm
Preferred - Not Preferred Preferred
