WF43-480272GD#005-FC

TFT 4.3" 480x272 LCD Panel, Interface RGB, Frame, 390cd/m², Resistive touch panel

DESCRIPTION

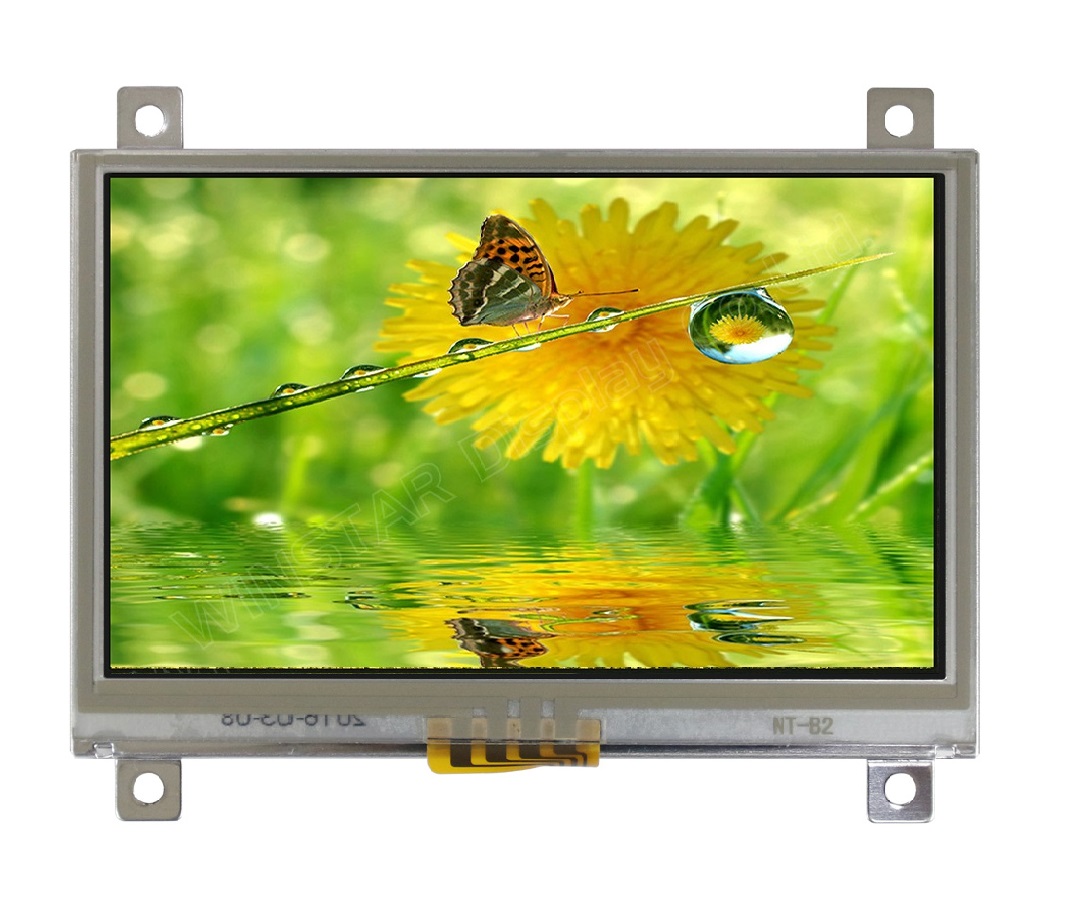

TFT LCD module 4.3 inch diagonal, 480xRGBx272, full color TFT Module with Resistive Touch Panel on module, outline dimension 105.5 x 67.2 mm, VA size 98.7×57.5 mm and AA size 95.04x53.856 mm. This 4.3" TFT LCD with touch screen can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image.

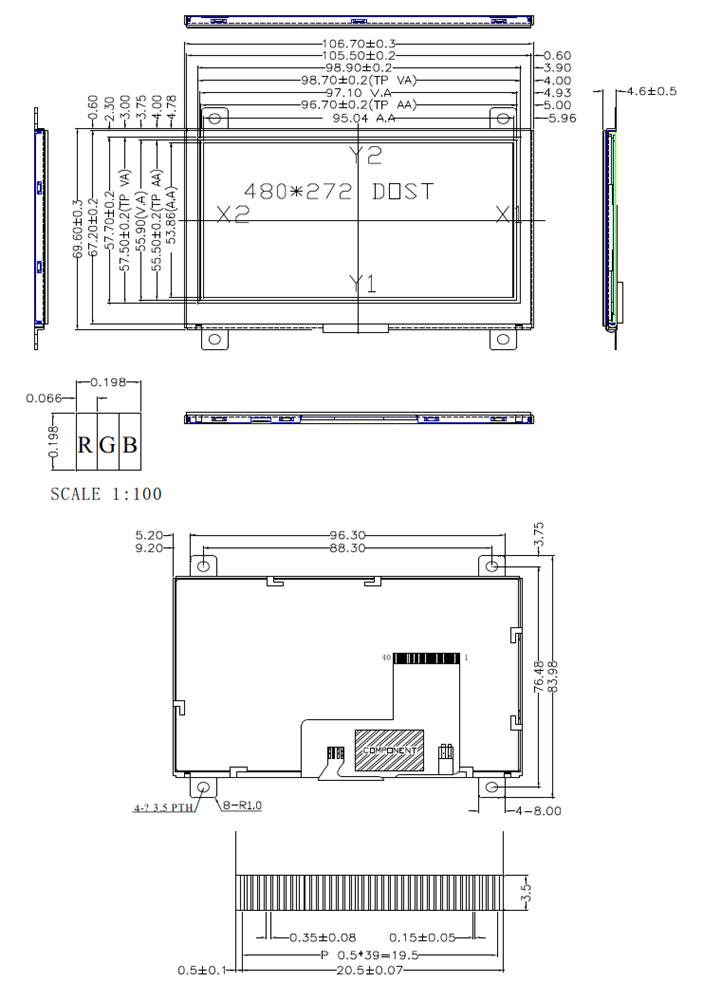

DRAWING

SPECIFICATIONS



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32~33 NC No connection
34 DE Data Enable
35 NC No connection
36 GND Power ground
37 XR Right electrode
38 YD Down electrode
39 XL Left electrode
40 YU Top electrode



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272 (TFT) dots
Module dimension 105.5(W) × 67.2(H) × 4.05(D) mm
Active area 95.04 × 53.86 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
TFT Driver IC ILI6480B
TFT Interface 24-bit RGB
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Screen Resistive Touch Screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VCC － 3.0 3.3 3.5 V
Digital operation current Icc - - 17 25 mA


SKU: WF43-480272GD#005-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€32.40
€25.90
€21.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€32.40 excl tax

DESCRIPTION

TFT LCD module 4.3 inch diagonal, 480xRGBx272, full color TFT Module with Resistive Touch Panel on module, outline dimension 105.5 x 67.2 mm, VA size 98.7×57.5 mm and AA size 95.04x53.856 mm. This 4.3" TFT LCD with touch screen can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image.


DRAWING

SPECIFICATIONS



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32~33 NC No connection
34 DE Data Enable
35 NC No connection
36 GND Power ground
37 XR Right electrode
38 YD Down electrode
39 XL Left electrode
40 YU Top electrode



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272 (TFT) dots
Module dimension 105.5(W) × 67.2(H) × 4.05(D) mm
Active area 95.04 × 53.86 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
TFT Driver IC ILI6480B
TFT Interface 24-bit RGB
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Screen Resistive Touch Screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VCC － 3.0 3.3 3.5 V
Digital operation current Icc - - 17 25 mA


Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
